Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.B496.11 Brake Disc - 1
Brembo 09.B496.11 Brake Disc - 2
Brembo 09.B496.11 Brake Disc - 1
Brembo 09.B496.11 Brake Disc - 2
BREMBO

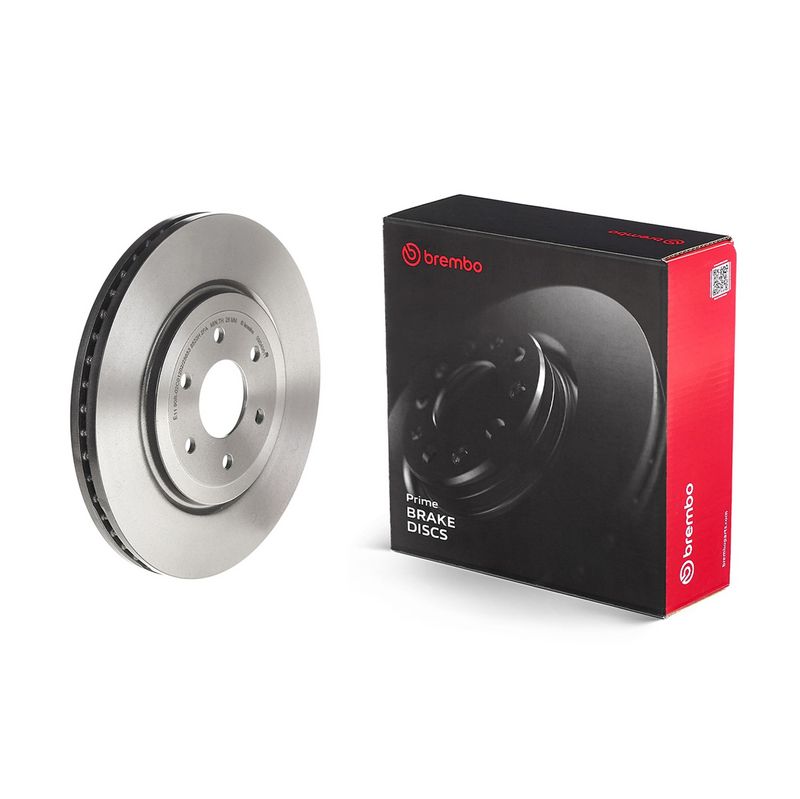

Brembo 09.B496.11 Brake Disc

SKU: 09.B496.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£50.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
NAVARA NP300 (D40)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4WD (D40TT, D40T, D40M, D40BB) 2488 CCM 190 HP From 12/2009
3.0 dCi 4WD 2993 CCM 231 HP From 02/2010
2.5 dCi 2488 CCM 144 HP From 07/2005
2.5 dCi 4WD 2488 CCM 174 HP From 07/2005
2.5 dCi 4WD 2488 CCM 171 HP From 10/2006
2.5 dCi 2488 CCM 163 HP From 10/2006
2.5 dCi 4WD 2488 CCM 144 HP From 01/2007
NAVARA NP300 Platform/Chassis (D40)
Description Cylinder Capacity Horse Power Year
2.5 dCi 2488 CCM 190 HP From 03/2010
3.0 dCi 2993 CCM 231 HP From 03/2010
2.5 dCi 4WD 2488 CCM 171 HP From 08/2008
2.5 dCi 4WD 2488 CCM 144 HP From 08/2008
PATHFINDER III (R51)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4WD 2488 CCM 174 HP 01/2005 - 01/2010
4.0 4WD 3954 CCM 269 HP From 09/2005
2.5 dCi 2488 CCM 174 HP 01/2005 - 01/2010
2.5 dCi 4WD 2488 CCM 171 HP From 10/2006
2.5 dCi 4WD 2488 CCM 190 HP From 08/2010
3.0 dCi 2993 CCM 231 HP From 08/2010
2.5 dCi 4WD 2488 CCM 163 HP From 01/2005

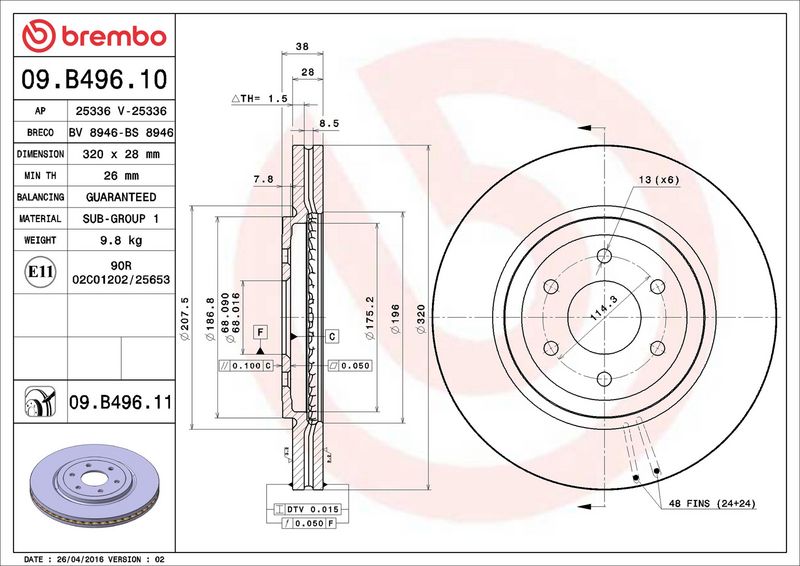

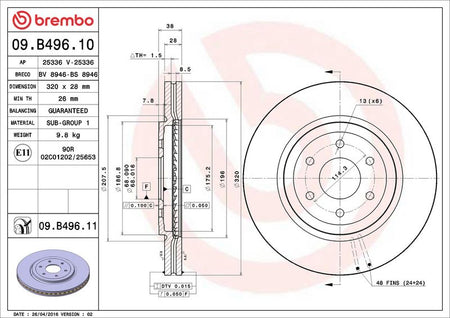

The Brembo 09.B496.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 38
Centering Diameter [mm] : 68
Outer Diameter [mm] : 320
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.B496.11
  • Barcode 8020584214374
  • NISSAN : 402063X00B 402065X00A 402065X01A 40206EB320
  • BLUE PRINT : ADN143118
  • BORG & BECK : BBD5145
  • BOSCH : 0 986 479 357
  • BOSCH : 0 986 479 S35
  • DELPHI : BG4176C
  • FEBI BILSTEIN : 108419
  • FTE : 9071194
  • HELLA : 8DD 355 119-001
  • MEYLE : 36-15 521 0073
  • MEYLE : 36-15 521 0073/PD
  • MINTEX : MDC1834
  • MINTEX : MDC1834C
  • SKF : VKBD 81067 V1
  • TEXTAR : 92164403
  • TEXTAR : 92164405
  • TRW : DF6425
  • VALEO : 197555
  • VALEO : 673244
