BREMBO

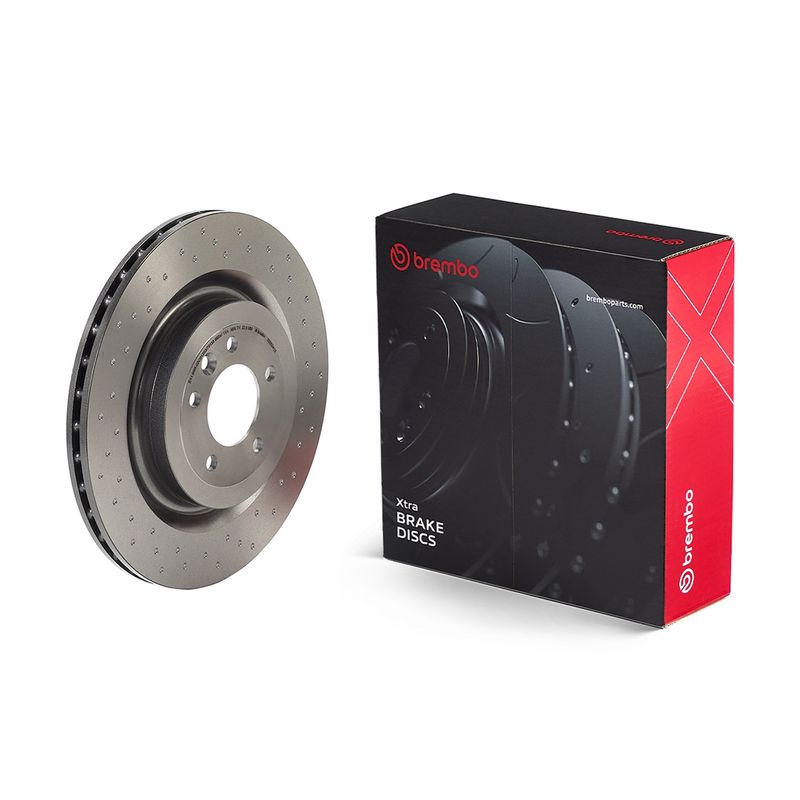

Brembo 09.B504.1X Brake Disc

SKU: 09.B504.1X
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£206.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
DEFENDER Station Wagon (L663)
Description Cylinder Capacity Horse Power Year
P300 Si4 4x4 1997 CCM 300 HP From 09/2019
P400 I6 MHEV 4x4 2996 CCM 400 HP From 09/2019
D200 SD4 4x4 1999 CCM 200 HP From 09/2019
D240 SD4 4x4 1999 CCM 241 HP From 09/2019
D250 MHEV 4x4 2997 CCM 249 HP From 09/2020
D300 MHEV 4x4 2997 CCM 300 HP From 09/2020
P400e Hybrid 4x4 1997 CCM 404 HP From 09/2020
D200 MHEV 4x4 2997 CCM 200 HP From 09/2020
P525 4x4 5000 CCM 525 HP From 05/2021
P300 MHEV 4x4 2996 CCM 300 HP From 05/2022
P500 4x4 5000 CCM 500 HP From 04/2023
P300 MHEV 4x4 1997 CCM 300 HP From 07/2023
P425 4x4 5000 CCM 426 HP From 05/2024
D350 MHEV 4x4 2997 CCM 350 HP From 05/2024
P635 OCTA MHEV 4x4 4395 CCM 635 HP From 05/2024
DEFENDER Van (L663)
Description Cylinder Capacity Horse Power Year
2.0 P300 Si4 4x4 1997 CCM 300 HP From 02/2020
3.0 P400 I6 MHEV 4x4 2996 CCM 400 HP From 02/2020
2.0 D200 SD4 4x4 1999 CCM 200 HP From 02/2020
2.0 D240 SD4 4x4 1999 CCM 241 HP From 02/2020
3.0 D250 MHEV 4x4 2997 CCM 249 HP From 09/2020
3.0 D300 MHEV 4x4 2997 CCM 300 HP From 09/2020
3.0 D200 MHEV 4x4 2997 CCM 200 HP From 09/2020
2.0 P400e Hybrid 4x4 1997 CCM 404 HP From 09/2020
3.0 D350 MHEV 4x4 2997 CCM 351 HP From 05/2024
DISCOVERY V (L462)
Description Cylinder Capacity Horse Power Year
3.0 Td6 4x4 2993 CCM 258 HP From 09/2016
3.0 D 4x4 2993 CCM 249 HP From 09/2016
3.0 D 4x4 2993 CCM 211 HP From 09/2016
3.0 SCV6 4x4 2995 CCM 340 HP From 09/2016
2.0 Td4 4x4 1999 CCM 180 HP From 09/2016
2.0 Sd4 4x4 1999 CCM 241 HP From 09/2016
2.0 Si4 4x4 1997 CCM 300 HP From 09/2017
3.0 SDV6 4x4 2993 CCM 306 HP From 09/2018
D250 MHEV 4x4 2997 CCM 249 HP From 12/2020
D300 MHEV 4x4 2997 CCM 300 HP From 12/2020
P360 MHEV 4x4 2996 CCM 360 HP From 12/2020
D350 MHEV 4x4 2997 CCM 349 HP From 05/2024
DISCOVERY V VAN (L462)
Description Cylinder Capacity Horse Power Year
2.0 Td4 4x4 1999 CCM 179 HP 09/2016 - 12/2018
2.0 Sd4 4x4 1999 CCM 241 HP From 09/2016
3.0 Td6 4x4 2993 CCM 258 HP From 09/2016
3.0 Sdv6 4x4 2993 CCM 306 HP From 09/2018
3.0 Scv6 4x4 2995 CCM 340 HP From 09/2016
3.0 D300 MHEV 4x4 2997 CCM 300 HP From 12/2020
RANGE ROVER IV (L405)
Description Cylinder Capacity Horse Power Year
3.0 SDV6 4x4 2993 CCM 249 HP 08/2012 - 01/2016
3.0 TDV6 4x4 2993 CCM 258 HP 08/2012 - 09/2021
4.4 SDV8 4x4 4367 CCM 340 HP 08/2012 - 09/2021
5.0 SCV8 4x4 5000 CCM 510 HP 08/2012 - 09/2021
3.0 SCV6 4x4 2995 CCM 340 HP 10/2013 - 09/2021
3.0 TDV6 4x4 2993 CCM 211 HP 10/2013 - 01/2016
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 09/2021
5.0 V8 4x4 5000 CCM 375 HP 12/2013 - 01/2016
4.4 SDV8 4x4 4367 CCM 313 HP 08/2013 - 09/2021
5.0 SCV8 4x4 5000 CCM 550 HP 06/2015 - 09/2021
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 09/2021
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 09/2021
5.0 SCV8 4x4 5000 CCM 525 HP 11/2017 - 09/2021
5.0 SCV8 4x4 5000 CCM 566 HP 11/2017 - 09/2021
3.0 SDV6 4x4 2993 CCM 275 HP 10/2018 - 09/2021
RANGE ROVER SPORT II (L494)
Description Cylinder Capacity Horse Power Year
5.0 SCV8 4x4 4999 CCM 510 HP 04/2013 - 12/2018
3.0 SCV6 4x4 2995 CCM 340 HP 04/2013 - 12/2019
3.0 SDV6 4x4 2993 CCM 292 HP 04/2013 - 12/2016
3.0 TDV6 4x4 2993 CCM 258 HP 04/2013 - 03/2022
3.0 TDV6 4x4 2993 CCM 211 HP 04/2013 - 12/2018
3.0 SDV6 4x4 2993 CCM 249 HP 04/2013 - 03/2022
4.4 SDV8 4x4 4367 CCM 340 HP 10/2013 - 03/2022
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 03/2022
5.0 SCV8 4x4 4999 CCM 550 HP 01/2014 - 12/2018
3.0 SDV6 4x4 2993 CCM 306 HP 09/2014 - 03/2022
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 12/2018
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 12/2017
2.0 SD4 4x4 1999 CCM 241 HP 08/2016 - 03/2022
2.0 Si4 4x4 1997 CCM 300 HP 10/2017 - 03/2022
5.0 SCV8 4x4 4999 CCM 525 HP 11/2017 - 03/2022

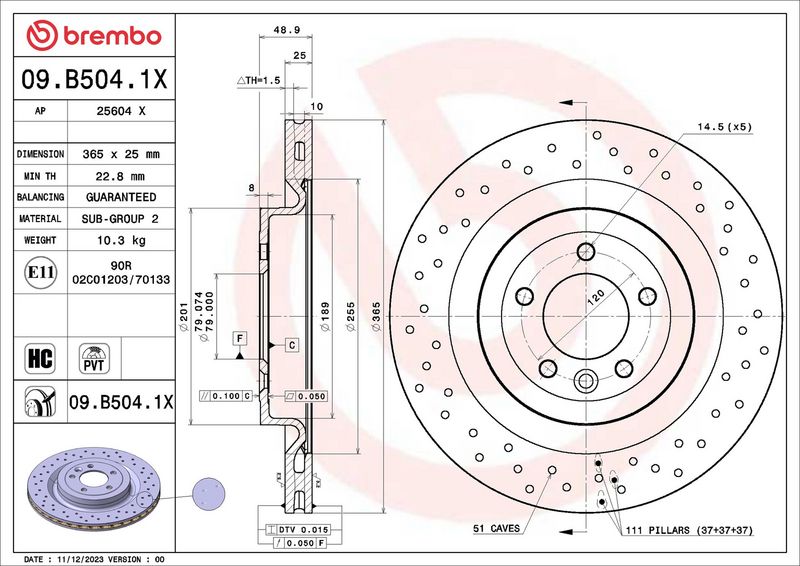

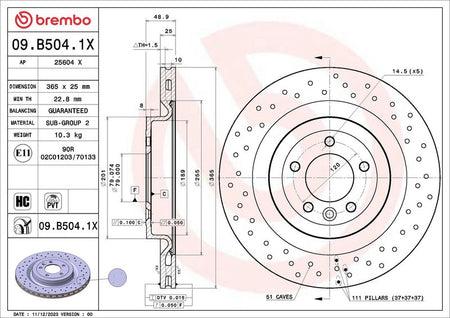

The Brembo 09.B504.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 79
Outer Diameter [mm] : 365
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.8
  • Vendor BREMBO
  • SKU 09.B504.1X
  • Barcode 8020584326428
  • LAND ROVER : LR033303 LR099038 LR161899 LR189047
  • BLUE PRINT : ADJ134349
  • BOSCH : 0 986 479 F68
  • FEBI BILSTEIN : 108534
  • MINTEX : MDC2814C
  • TEXTAR : 92293003
  • TRW : DF6505S
