BREMBO

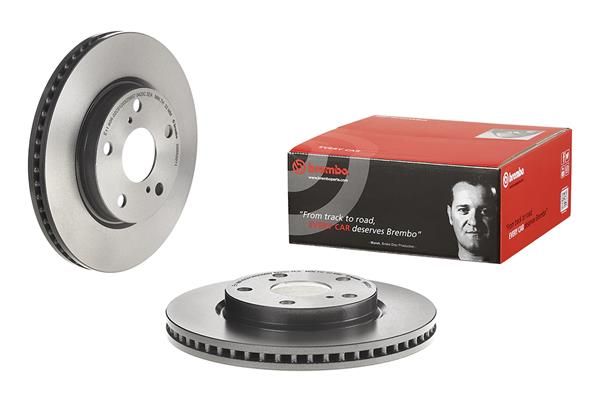

Brembo 09.B520.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B520.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£84.83 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
PRIUS PLUS (_W4_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZVW40W, ZVW41W) 1798 CCM 136 HP From 05/2011
RAV 4 III (_A3_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (ACA31, ACA33) 2362 CCM 170 HP 11/2005 - 06/2013
2.0 4WD (ACA30_, ACA30R) 1998 CCM 152 HP 02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 136 HP 02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 177 HP 02/2006 - 06/2013
2.4 (ACA36, ACA38) 2362 CCM 170 HP 11/2005 - 12/2013
2.0 (ZSA35_, ZSA35R) 1987 CCM 158 HP 12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R) 1987 CCM 158 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D (ALA35_) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30) 2231 CCM 133 HP 11/2005 - 12/2010
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.5 4WD (ASA44) 2494 CCM 180 HP 12/2012 - 10/2018
2.5 (ASA42) 2494 CCM 180 HP 12/2012 - 11/2018

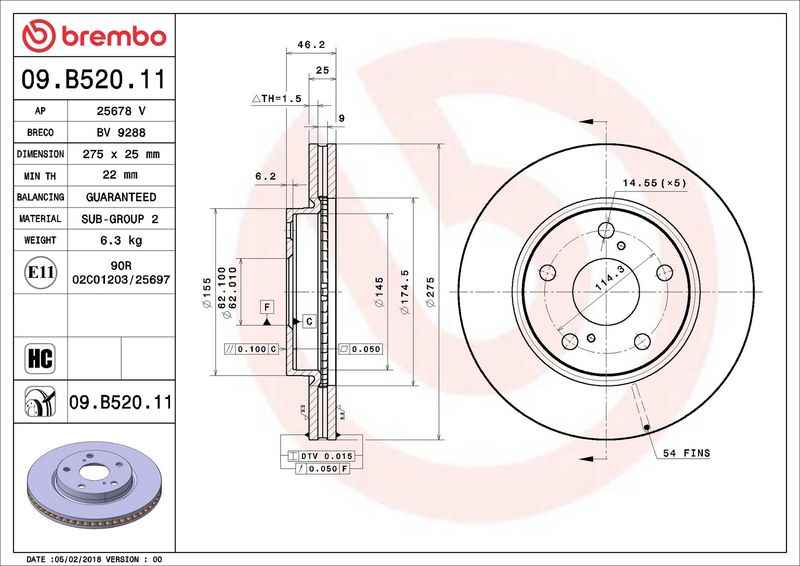

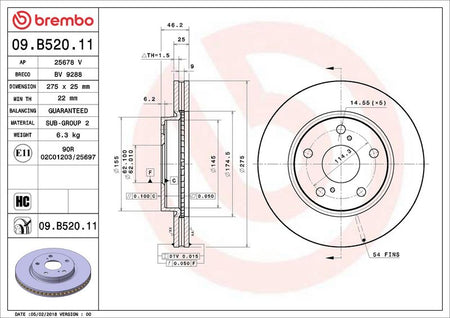

The Brembo 09.B520.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Height [mm] : 46
Centering Diameter [mm] : 62
Outer Diameter [mm] : 275
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22
  • Vendor BREMBO
  • SKU 09.B520.11
  • Barcode 8020584032398
  • TOYOTA : 4351242040 4351242080
  • LEXUS : 4351242040
  • BLUE PRINT : ADT343231
  • BORG & BECK : BBD5183
  • BOSCH : 0 986 479 428
  • DELPHI : BG4304
  • FEBI BILSTEIN : 31473
  • FTE : 9072444
  • HELLA : 8DD 355 117-361
  • MEYLE : 30-85 521 0010
  • MINTEX : MDC2285
  • TEXTAR : 92232703
  • VALEO : 197151
  • VALEO : 673143
