BREMBO

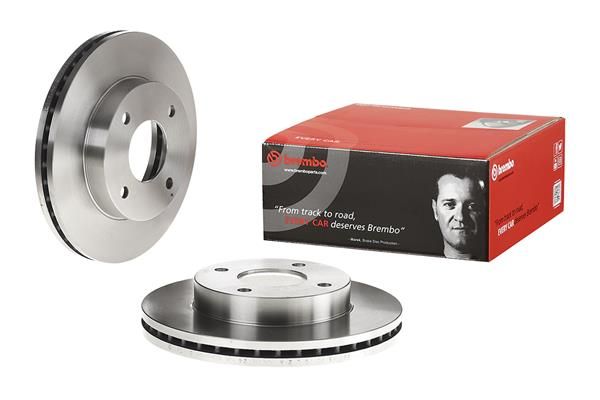

Brembo 09.B548.10 Brake Disc

5.0/5 65 reviews
SKU: 09.B548.10

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£80.80 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

NISSAN
NV200 Van
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20N, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20N, M20M) 1461 CCM 110 HP From 04/2011
1.6 16V (VM20, M20N, M20, M20L, M20M) 1598 CCM 110 HP From 02/2010
1.5 dCi 85 (M20, M20N, M20M) 1461 CCM 86 HP From 02/2010
1.5 dCi 105 (M20N) 1461 CCM 106 HP 07/2010 - 10/2013
NV200 / EVALIA Bus
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20M) 1461 CCM 110 HP From 04/2011
1.6 16V (M20, M20M) 1598 CCM 110 HP From 07/2010
1.5 dCi 85 (M20, M20M, M20K, M20KK) 1461 CCM 86 HP From 07/2010

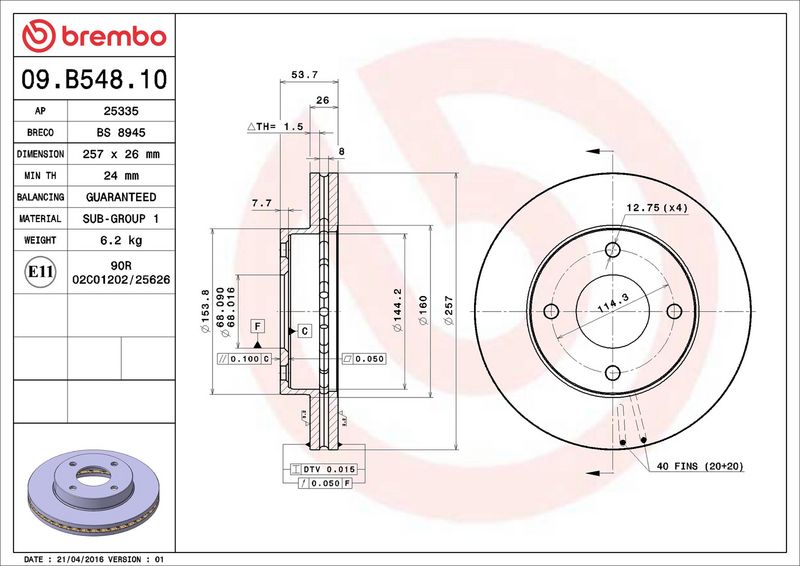

The Brembo 09.B548.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 4 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 4
Height [mm] : 54
Centering Diameter [mm] : 68
Outer Diameter [mm] : 257
Minimum thickness [mm] : 24
  • Vendor BREMBO
  • SKU 09.B548.10
  • Barcode 8020584036334
  • NISSAN : 402063LG0A 402063LG0B 40206JX00A D02063LG0B
  • NISSAN (ZHENGZHOU) : 40206JX00C
  • BLUE PRINT : ADN143150
  • BORG & BECK : BBD5214
  • BOSCH : 0 986 479 535
  • DELPHI : BG4651C
  • FEBI BILSTEIN : 108425
  • FTE : 9072521
  • FTE : 9082221
  • HELLA : 8DD 355 118-571
  • MEYLE : 36-15 521 0059
  • MINTEX : MDC2495
  • National : NBD1845
  • SKF : VKBD 80300 V2
  • TEXTAR : 92253103
  • TRW : DF6417
  • VALEO : 197482
  • VALEO : 673448
