Brembo 09.B556.11 Brake Disc - 1
Brembo 09.B556.11 Brake Disc - 2
Brembo 09.B556.11 Brake Disc - 1
Brembo 09.B556.11 Brake Disc - 2
BREMBO

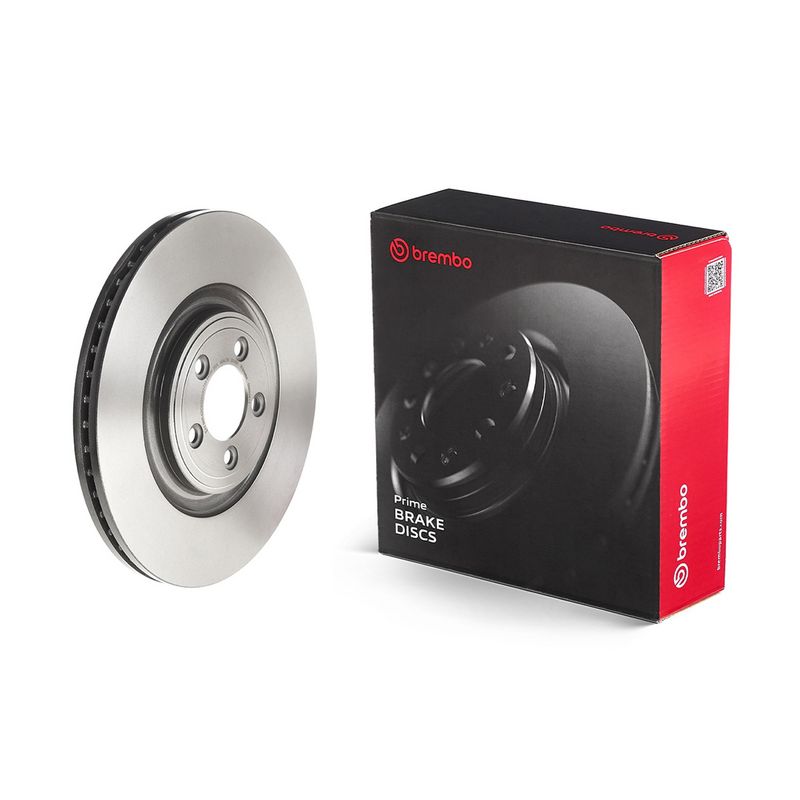

Brembo 09.B556.11 Brake Disc

SKU: 09.B556.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£83.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
F-TYPE Convertible (X152)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 2995 CCM 340 HP From 10/2012
3.0 SCV6 S 2995 CCM 380 HP From 10/2012
5.0 SCV8 S 5000 CCM 495 HP From 10/2012
3.0 SCV6 S AWD 2995 CCM 380 HP From 12/2014
5.0 SCV8 R 5000 CCM 551 HP From 10/2013
5.0 SCV8 R AWD 5000 CCM 551 HP From 12/2014
5.0 SCV8 SVR / SCV8 P575 R AWD 5000 CCM 575 HP From 12/2015
SCV6 400 SPORT 2995 CCM 400 HP From 11/2016
SCV6 400 SPORT AWD 2995 CCM 400 HP From 11/2016
2.0 Ti4 1997 CCM 300 HP From 07/2017
5.0 SCV8 SVR 5000 CCM 575 HP From 05/2015
5.0 SCV8 P450 5000 CCM 450 HP From 12/2019
5.0 SCV8 P450 AWD 5000 CCM 450 HP From 12/2019
F-TYPE Coupe (X152)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 2995 CCM 340 HP From 10/2013
3.0 SCV6 S 2995 CCM 380 HP From 10/2013
5.0 SCV8 R 5000 CCM 551 HP From 10/2013
3.0 SCV6 S AWD 2995 CCM 380 HP From 12/2014
5.0 SCV8 R AWD 5000 CCM 551 HP From 12/2014
5.0 SCV8 SVR / SCV8 P575 R 5000 CCM 575 HP From 12/2015
3.0 SCV6 400 SPORT 2995 CCM 400 HP From 11/2016
3.0 SCV6 400 SPORT AWD 2995 CCM 400 HP From 11/2016
2.0 Ti4 1997 CCM 300 HP From 07/2017
5.0 SCV8 P450 5000 CCM 450 HP From 12/2019
5.0 SCV8 P450 AWD 5000 CCM 450 HP From 12/2019
XF I (X250)
Description Cylinder Capacity Horse Power Year
3.0 D 2993 CCM 211 HP 03/2009 - 04/2015
4.2 Kompressor 4196 CCM 416 HP 03/2008 - 04/2015
3.0 D 2993 CCM 241 HP 03/2009 - 04/2015
3.0 D 2993 CCM 275 HP 03/2009 - 04/2015
5.0 5000 CCM 385 HP 03/2009 - 04/2015
3.0 2995 CCM 340 HP 03/2012 - 04/2015
2.0 1999 CCM 241 HP 06/2012 - 04/2015
XF SPORTBRAKE (X250)
Description Cylinder Capacity Horse Power Year
3.0 D 2993 CCM 241 HP 09/2012 - 04/2014
3.0 D 2993 CCM 275 HP 09/2012 - 04/2014
XJ (X350, X358)
Description Cylinder Capacity Horse Power Year
R 4.2 4196 CCM 395 HP 03/2003 - 03/2009
XJ (X351)
Description Cylinder Capacity Horse Power Year
3.0 SDV6 2993 CCM 275 HP 10/2009 - 04/2016
5.0 V8 5000 CCM 385 HP 10/2009 - 12/2019
5.0 SCV8 5000 CCM 510 HP 10/2009 - 12/2019
3.0 SCV6 2995 CCM 340 HP 03/2012 - 12/2019
2.0 Ti4 1999 CCM 241 HP 05/2012 - 12/2019
3.0 V6 2967 CCM 238 HP 01/2011 - 12/2019
3.0 SCV6 AWD 2995 CCM 340 HP 10/2012 - 12/2019
3.0 SDV6 2993 CCM 300 HP 04/2015 - 12/2019
XK II Coupe (X150)
Description Cylinder Capacity Horse Power Year
5.0 XKR 5000 CCM 530 HP 09/2010 - 07/2014
4.2 XKR 4196 CCM 426 HP 08/2006 - 07/2014
4.2 XKR 4196 CCM 396 HP 03/2006 - 07/2014
4.2 XKR 4196 CCM 416 HP 03/2006 - 07/2014
5.0 XKR 5000 CCM 510 HP 01/2009 - 07/2014
5.0 V8 5000 CCM 385 HP 01/2009 - 07/2014
XK II Convertible (X150)
Description Cylinder Capacity Horse Power Year
4.2 XKR 4196 CCM 426 HP 08/2006 - 07/2014
4.2 XKR 4196 CCM 416 HP 03/2006 - 07/2014
5.0 XKR 5000 CCM 510 HP 01/2009 - 07/2014
5.0 V8 5000 CCM 385 HP 01/2009 - 07/2014
4.2 4196 CCM 396 HP 09/2007 - 12/2009

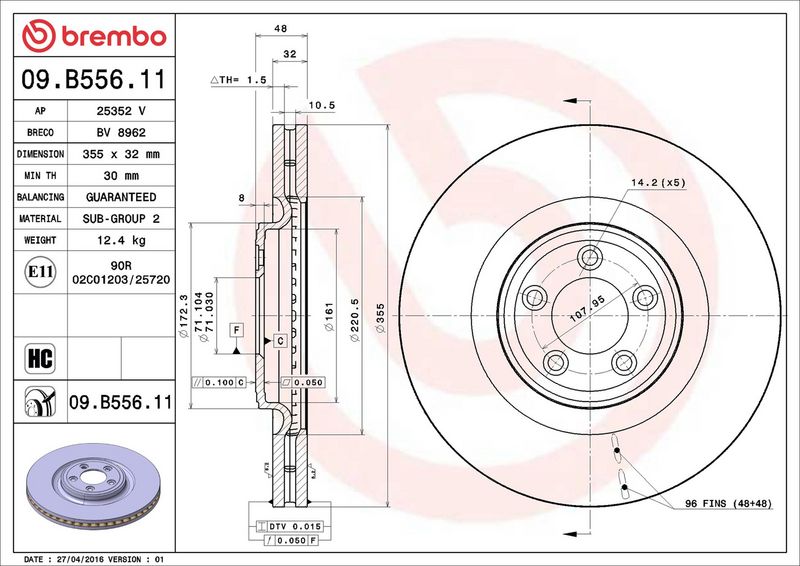

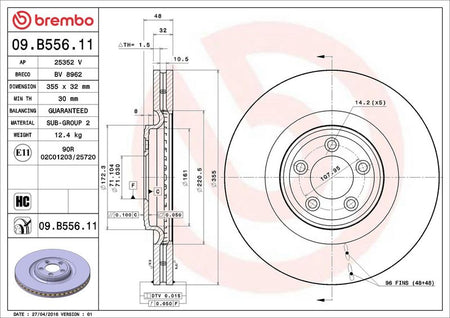

The Brembo 09.B556.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Height [mm] : 48
Centering Diameter [mm] : 71
Outer Diameter [mm] : 355
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30
  • Vendor BREMBO
  • SKU 09.B556.11
  • Barcode 8020584218358
  • JAGUAR : C2C25337 C2D61074 T2R5939
  • BLUE PRINT : ADJ134302
  • BORG & BECK : BBD4731
  • BOSCH : 0 986 479 754
  • DELPHI : BG9071C
  • FEBI BILSTEIN : 44134
  • FTE : 9082684
  • HELLA : 8DD 355 129-071
  • MEYLE : 18-83 521 0008/PD
  • MINTEX : MDC2111
  • MINTEX : MDC2111C
  • National : NBD1811
  • SKF : VKBD 81105 V1
  • TEXTAR : 92186305
  • TRW : DF6146S
  • VALEO : 673520
