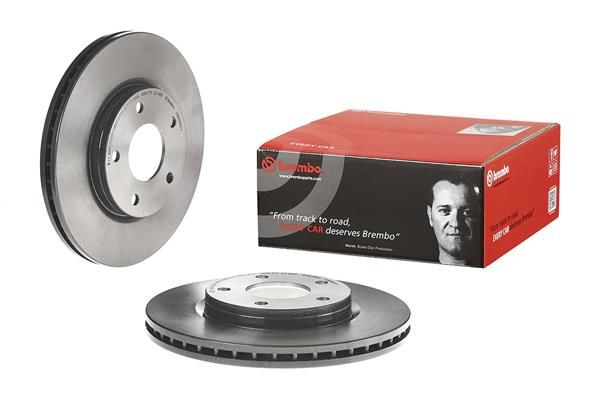

Brembo 09.B565.11 Brake Disc - 1

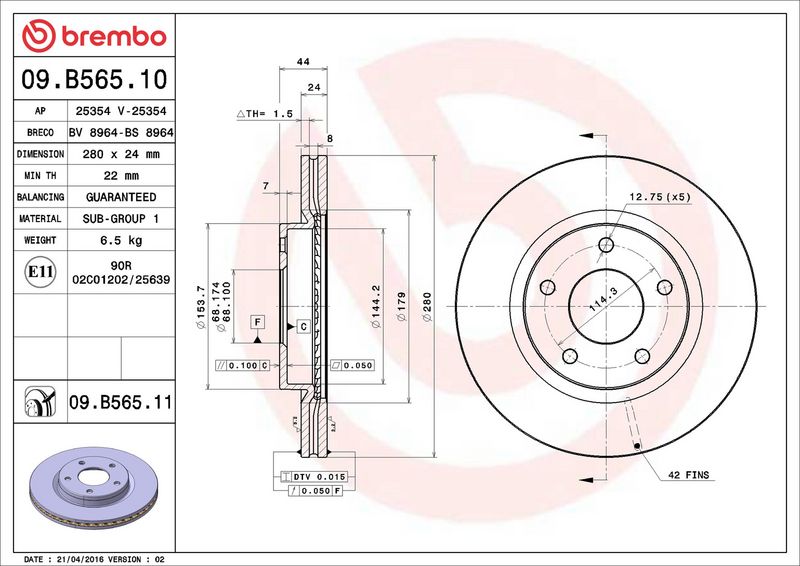

Brembo 09.B565.11 Brake Disc - 2
Brembo 09.B565.11 Brake Disc - 1
Brembo 09.B565.11 Brake Disc - 2
BREMBO

Brembo 09.B565.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B565.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£84.62 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN
BLUEBIRD SYLPHY / SYLPHY III (B17)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 117 HP From 05/2013
JUKE (F15)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 117 HP 06/2010 - 12/2019
1.5 dCi 1461 CCM 110 HP 06/2010 - 12/2019
1.6 1598 CCM 94 HP 05/2013 - 12/2019
1.2 DIG-T 1197 CCM 115 HP 05/2014 - 12/2019
1.6 1598 CCM 113 HP 07/2018 - 12/2019
1.6 CVTC 1598 CCM 98 HP 08/2014 - 12/2019
1.6 1598 CCM 116 HP 03/2016 - 12/2019
1.6 LPG 1598 CCM 109 HP 09/2018 - 12/2019
JUKE Van (F15)
Description Cylinder Capacity Horse Power Year
dCi 1461 CCM 110 HP 06/2010 - 12/2019
PULSAR Hatchback (C13)
Description Cylinder Capacity Horse Power Year
1.2 DIG-T 1197 CCM 115 HP From 10/2014
1.5 dCi 1461 CCM 110 HP From 10/2014
1.6 DIG-T 1618 CCM 190 HP From 02/2015
SENTRA VII (B17)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 117 HP From 08/2014

The Brembo 09.B565.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Height [mm] : 44
Centering Diameter [mm] : 68
Outer Diameter [mm] : 280
Surface : Coated
Minimum thickness [mm] : 22
  • Vendor BREMBO
  • SKU 09.B565.11
  • Barcode 8020584219416
  • NISSAN : 402061KA1A 402061KA2A 402061KA3A 402061KA3B 402063DA0B 402063SG0A 402063SG0B 402063SG0E
  • INFINITI : 402061KA3A 402061KA3B
  • NISSAN (DFAC) : 402063DA0A 402063DA0B
  • BLUE PRINT : ADN143152
  • BORG & BECK : BBD5195
  • BOSCH : 0 986 479 A28
  • DELPHI : BG4282C
  • FEBI BILSTEIN : 108396
  • FTE : 9072446
  • FTE : 9082103
  • HELLA : 8DD 355 117-321
  • MEYLE : 36-15 521 0053
  • MINTEX : MDC2280
  • SKF : VKBD 80112 V2
  • TEXTAR : 92232203
  • TEXTAR : 92232205
  • TRW : DF6471
  • VALEO : 197547
  • VALEO : 672766
