BREMBO

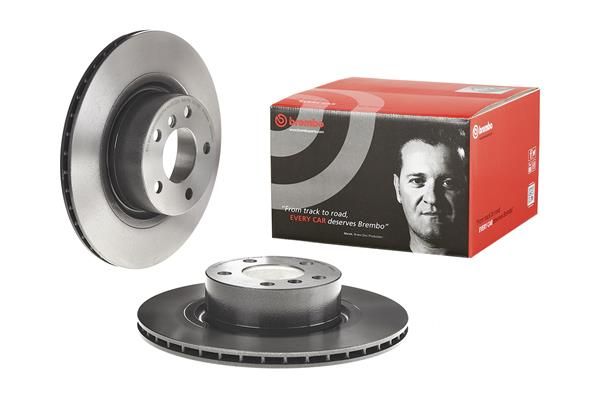

Brembo 09.B569.11 Brake Disc

SKU: 09.B569.11
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£105.97 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
X3 (F25)
Description Cylinder Capacity Horse Power Year
xDrive 28 i 2996 CCM 258 HP 01/2011 - 10/2012
xDrive 30 d 2993 CCM 258 HP 04/2011 - 08/2017
xDrive 35 d 2993 CCM 313 HP 10/2011 - 08/2017
xDrive 20 i 1997 CCM 184 HP 10/2011 - 08/2017
xDrive 35 i 2979 CCM 306 HP 09/2010 - 08/2017
xDrive 20 d 1995 CCM 184 HP 09/2010 - 03/2014
xDrive 28 i 1997 CCM 245 HP 04/2012 - 08/2017
sDrive 18 d 1995 CCM 136 HP 10/2012 - 03/2014
sDrive 18 d 1995 CCM 143 HP 10/2012 - 03/2014
xDrive 20 d 1995 CCM 163 HP 09/2010 - 08/2017
sDrive 18 d 1995 CCM 150 HP 04/2014 - 08/2017
xDrive 20 d 1995 CCM 190 HP 04/2014 - 08/2017
sDrive 20 i 1997 CCM 184 HP 04/2014 - 08/2017
sDrive 20 i 1592 CCM 170 HP 04/2014 - 08/2017
xDrive 30 d 2993 CCM 211 HP 04/2011 - 08/2017
X4 (F26)
Description Cylinder Capacity Horse Power Year
xDrive 20 i 1997 CCM 184 HP 04/2014 - 03/2018
xDrive 28 i 1997 CCM 245 HP 04/2014 - 03/2018
xDrive 35 i 2979 CCM 306 HP 04/2014 - 03/2018
xDrive 20 d 1995 CCM 190 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 258 HP 04/2014 - 03/2018
xDrive 35 d 2993 CCM 313 HP 04/2014 - 03/2018
xDrive 20 d 1995 CCM 163 HP 04/2014 - 03/2018
M 40 i 2979 CCM 360 HP 12/2015 - 03/2018
xDrive 30 d 2993 CCM 286 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 249 HP 04/2015 - 03/2018
xDrive 30 d 2993 CCM 277 HP 04/2014 - 03/2018

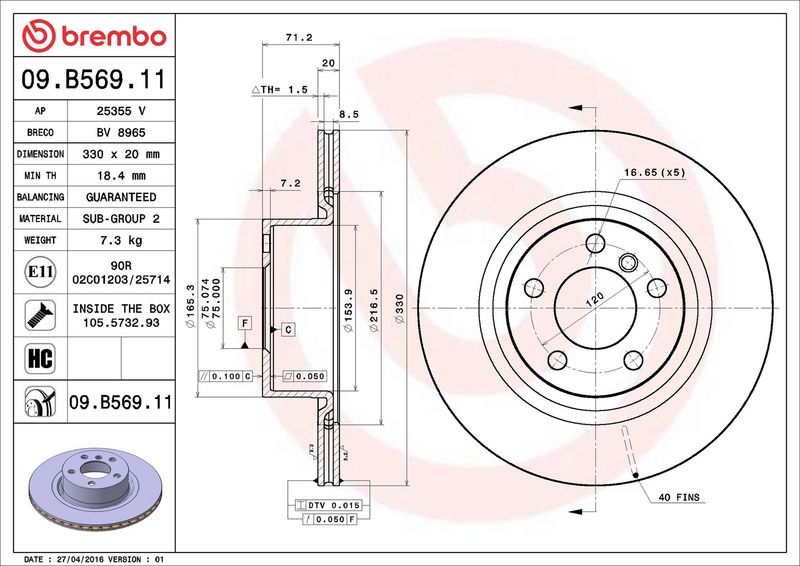

The Brembo 09.B569.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 71
Centering Diameter [mm] : 75
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 18.4
  • Vendor BREMBO
  • SKU 09.B569.11
  • Barcode 8020584039786
  • BMW : 34206790362 34206868936 34206886482
  • BLUE PRINT : ADB114347
  • BORG & BECK : BBD5300
  • BOSCH : 0 986 479 727
  • DELPHI : BG4644C
  • FEBI BILSTEIN : 38577
  • FTE : 9071051
  • FTE : 9081101
  • HELLA : 8DD 355 119-541
  • HELLA : 8DD 355 129-811
  • MEYLE : 315 523 0029/PD
  • MINTEX : MDC2532
  • National : NBD1828
  • SKF : VKBD 90200 V1
  • TEXTAR : 92256303
  • TRW : DF6352S
  • VALEO : 197576
