BREMBO

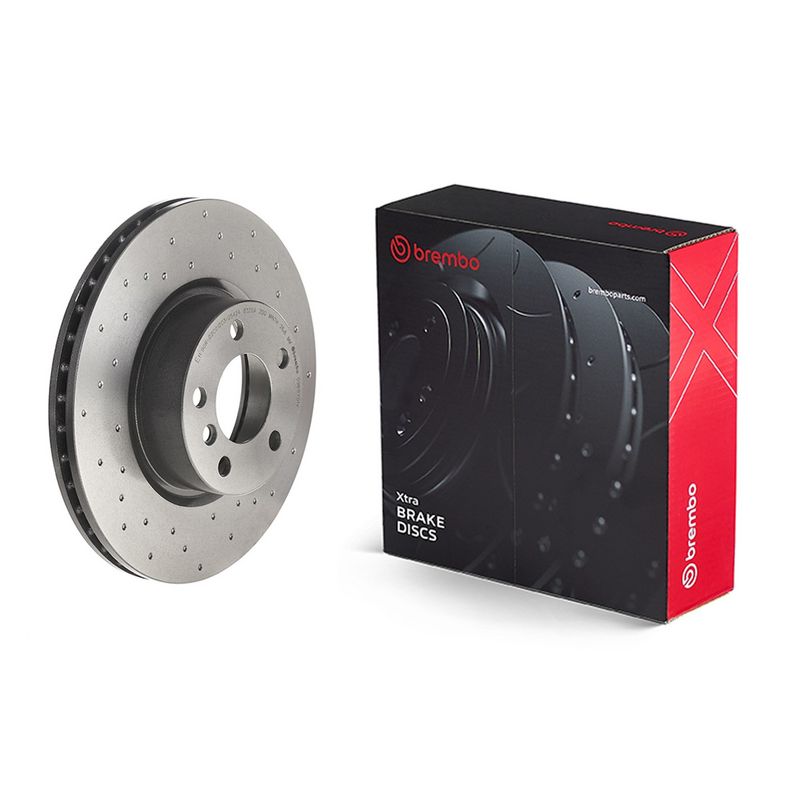

Brembo 09.B570.1X Brake Disc

SKU: 09.B570.1X
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£101.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
X3 (F25)
Description Cylinder Capacity Horse Power Year
xDrive 28 i 2996 CCM 258 HP 01/2011 - 10/2012
xDrive 30 d 2993 CCM 258 HP 04/2011 - 08/2017
xDrive 35 d 2993 CCM 313 HP 10/2011 - 08/2017
xDrive 20 i 1997 CCM 184 HP 10/2011 - 08/2017
xDrive 35 i 2979 CCM 306 HP 09/2010 - 08/2017
xDrive 20 d 1995 CCM 184 HP 09/2010 - 03/2014
xDrive 28 i 1997 CCM 245 HP 04/2012 - 08/2017
sDrive 18 d 1995 CCM 136 HP 10/2012 - 03/2014
sDrive 18 d 1995 CCM 143 HP 10/2012 - 03/2014
xDrive 20 d 1995 CCM 163 HP 09/2010 - 08/2017
sDrive 18 d 1995 CCM 150 HP 04/2014 - 08/2017
xDrive 20 d 1995 CCM 190 HP 04/2014 - 08/2017
sDrive 20 i 1997 CCM 184 HP 04/2014 - 08/2017
sDrive 20 i 1592 CCM 170 HP 04/2014 - 08/2017
xDrive 30 d 2993 CCM 211 HP 04/2011 - 08/2017
X4 (F26)
Description Cylinder Capacity Horse Power Year
xDrive 20 i 1997 CCM 184 HP 04/2014 - 03/2018
xDrive 28 i 1997 CCM 245 HP 04/2014 - 03/2018
xDrive 35 i 2979 CCM 306 HP 04/2014 - 03/2018
xDrive 20 d 1995 CCM 190 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 258 HP 04/2014 - 03/2018
xDrive 35 d 2993 CCM 313 HP 04/2014 - 03/2018
xDrive 20 d 1995 CCM 163 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 286 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 249 HP 04/2015 - 03/2018
xDrive 30 d 2993 CCM 277 HP 04/2014 - 03/2018

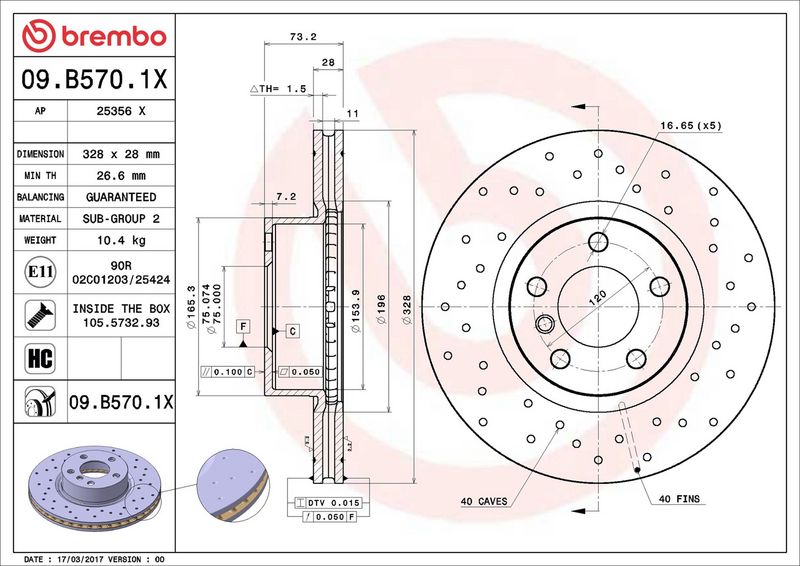

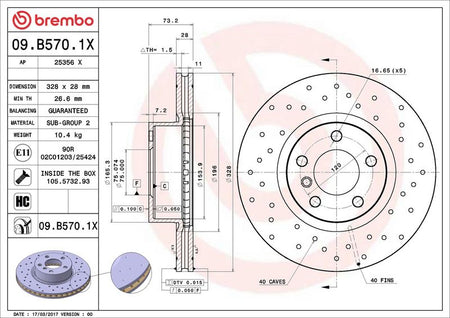

The Brembo 09.B570.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 73
Centering Diameter [mm] : 75
Outer Diameter [mm] : 328
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 26.6
Tightening Torque [Nm] : 140
  • Vendor BREMBO
  • SKU 09.B570.1X
  • Barcode 8020584227862
  • BMW : 34106787490 34106879122
  • BLUE PRINT : ADB114356
  • BOSCH : 0 986 479 771
  • DELPHI : BG9108
  • FEBI BILSTEIN : 38576
  • FTE : 9071052
  • HELLA : 8DD 355 119-531
  • HELLA : 8DD 355 129-631
  • HELLA : 8DE 355 710-041
  • MEYLE : 383 521 0012/PD
  • MINTEX : MDC2549
  • TEXTAR : 92257103
  • TEXTAR : 92257105
  • TRW : DF6220S
  • VALEO : 672776
