BREMBO

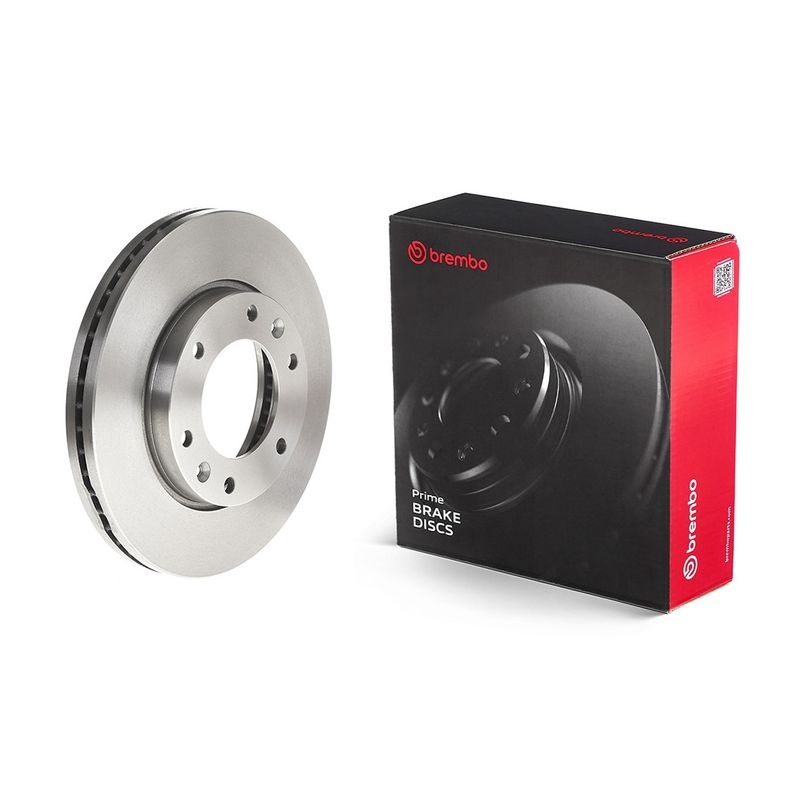

Brembo 09.B611.10 Brake Disc

SKU: 09.B611.10

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£63.82 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI

i800 Travel (TQ)

Description	Cylinder Capacity	Horse Power	Year
2.5 CRDI	2497 CCM	136 HP	From 07/2008
2.5 CRDi	2497 CCM	170 HP	From 05/2008
2.5 CRDi	2497 CCM	116 HP	From 08/2011
2.5 CRDi	2497 CCM	110 HP	From 07/2010

iLOAD Cargo (TQ)

Description	Cylinder Capacity	Horse Power	Year
2.5 CRDi	2497 CCM	170 HP	From 02/2008
2.5 CRDi	2497 CCM	110 HP	From 02/2008
2.5 CRDi	2497 CCM	163 HP	From 02/2008
2.5 CRDi	2497 CCM	116 HP	From 01/2009
2.5 CRDi	2497 CCM	136 HP	From 08/2009

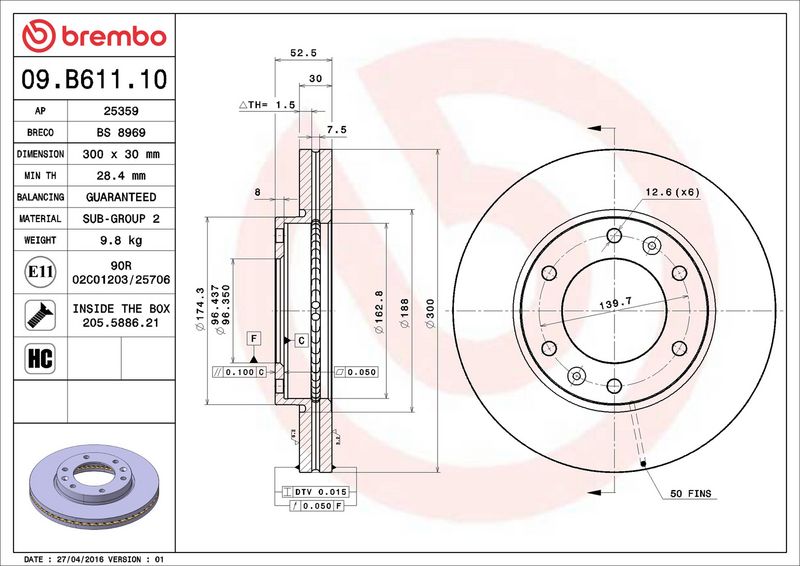

The Brembo 09.B611.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 6 mounting holes, and 96 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 30

Number of Holes : 6

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 53

Centering Diameter [mm] : 96

Outer Diameter [mm] : 300

Machining : High-carbon

Minimum thickness [mm] : 28.4

APEC : DSK2786
APEC : SDK6638
BLUE PRINT : ADG043140
BORG & BECK : BBD5927S
DELPHI : BG4296
Fahren : FBD6638
FEBI BILSTEIN : 170609
FTE : 9071152
HELLA : 8DD 355 116-481
MEYLE : 37-15 521 0025
MINTEX : MDC2312
NAPA : NBD5634
National : NBD1688
SKF : VKBD 80564 V1
TEXTAR : 92203800
TRW : DF6446
VALEO : 672988

Brembo 09.B611.10 Brake Disc
