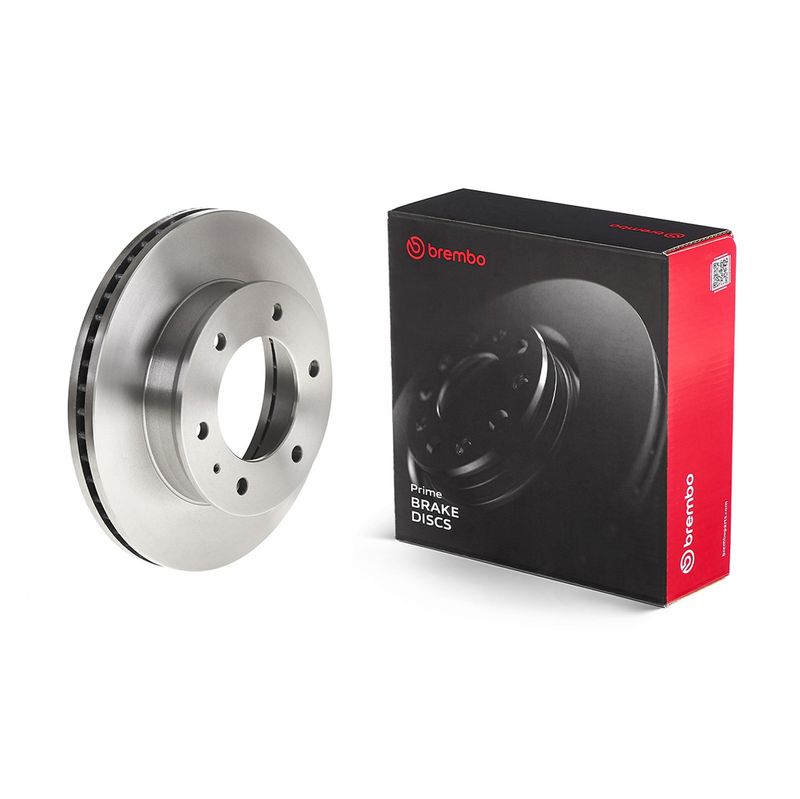

Brembo 09.B622.10 Brake Disc - 1

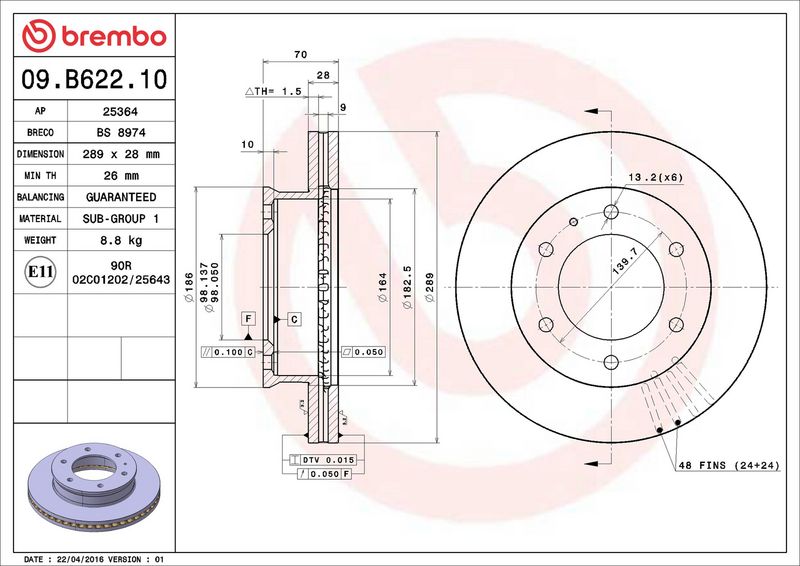

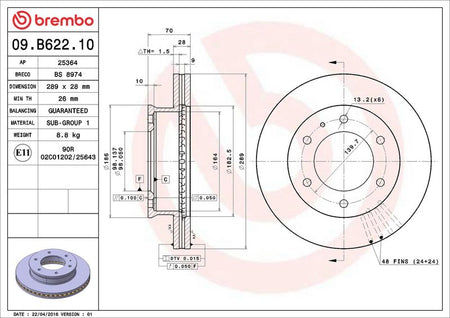

Brembo 09.B622.10 Brake Disc - 2
Brembo 09.B622.10 Brake Disc - 1
Brembo 09.B622.10 Brake Disc - 2
BREMBO

Brembo 09.B622.10 Brake Disc

SKU: 09.B622.10
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£59.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDCi 4x4 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 4x4 2953 CCM 156 HP 05/2006 - 07/2012
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 2953 CCM 156 HP 05/2006 - 07/2012
MAZDA
B-SERIE (UN)
Description Cylinder Capacity Horse Power Year
2.5 D 4WD 2499 CCM 78 HP 06/1999 - 11/2006
2.5 TD 4WD 2499 CCM 109 HP 06/1999 - 07/2006
2.5 D 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 4WD 2499 CCM 84 HP 12/2002 - 11/2006
BT-50 Platform/Chassis (CD, UN)
Description Cylinder Capacity Horse Power Year
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP From 12/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD 4x4 (UNY0W3) 2499 CCM 143 HP 12/2006 - 12/2015
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP 10/2006 - 12/2015

The Brembo 09.B622.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 98 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 70
Centering Diameter [mm] : 98
Outer Diameter [mm] : 289
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.B622.10
  • Barcode 8020584020982
  • FORD : 1490412 6M341027DA
  • MAZDA : BT5033251 UM5133251 UR6133251
  • FORD USA : 1490412 2M341027AA 4429562 6M341027DA UM5133251 UR6133251
  • FORD ASIA & OCEANIA : UM5133251 UR6133251
  • BLUE PRINT : ADM54377
  • BORG & BECK : BBD4793
  • BOSCH : 0 986 479 711
  • DELPHI : BG4297
  • FEBI BILSTEIN : 44104
  • FTE : 9071153
  • HELLA : 8DD 355 129-181
  • MINTEX : MDC2217
  • National : NBD1312
  • SKF : VKBD 80538 V1
  • TEXTAR : 92223000
  • TRW : DF6034S
  • VALEO : 673440
