BREMBO

Brembo 09.B625.10 Brake Disc

SKU: 09.B625.10

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£103.72 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN

NAVARA NP300 (D40)

Description	Cylinder Capacity	Horse Power	Year
2.5 dCi 4WD (D40TT, D40T, D40M, D40BB)	2488 CCM	190 HP	From 12/2009
2.5 dCi	2488 CCM	144 HP	From 07/2005
2.5 dCi 4WD	2488 CCM	174 HP	From 07/2005
2.5 dCi 4WD	2488 CCM	171 HP	From 10/2006
2.5 dCi 4WD	2488 CCM	144 HP	From 01/2007

NAVARA NP300 Platform/Chassis (D40)

Description	Cylinder Capacity	Horse Power	Year
2.5 dCi 4WD	2488 CCM	144 HP	From 08/2008

NAVARA NP300 Pickup (D23, D23T)

Description	Cylinder Capacity	Horse Power	Year
2.5 dCi 4x4	2488 CCM	163 HP	From 07/2014

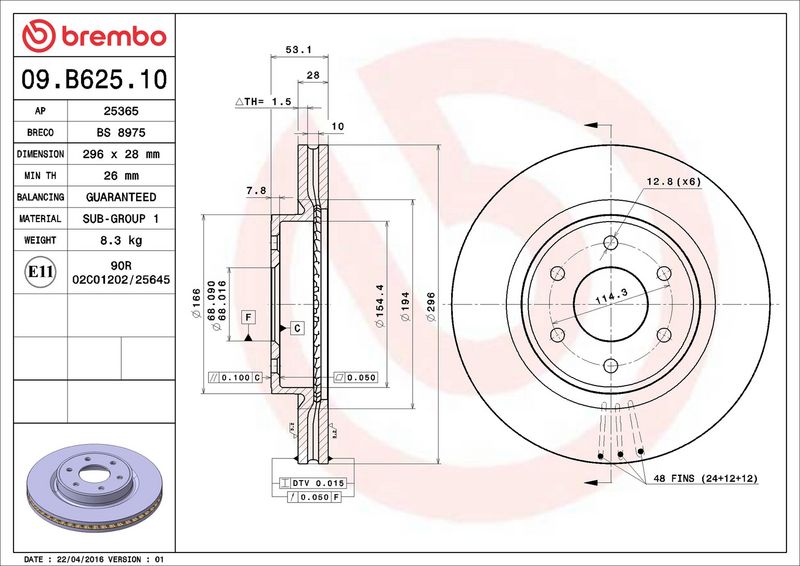

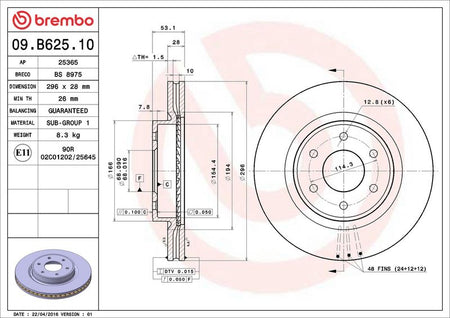

The Brembo 09.B625.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 6

Height [mm] : 53

Centering Diameter [mm] : 68

Outer Diameter [mm] : 296

Minimum thickness [mm] : 26

APEC : DSK3225
APEC : SDK6847
BLUE PRINT : ADN143172
BORG & BECK : BBD6146S
BOSCH : 0 986 479 D66
BOSCH : 0 986 479 E35
Fahren : FBD6847
FEBI BILSTEIN : 170041
FTE : 9082650
HELLA : 8DD 355 129-561
MINTEX : MDC2163
NAPA : NBD5678
National : NBD1962
SKF : VKBD 81313 V1
TEXTAR : 92199603
VALEO : 673549

Brembo 09.B625.10 Brake Disc
