BREMBO

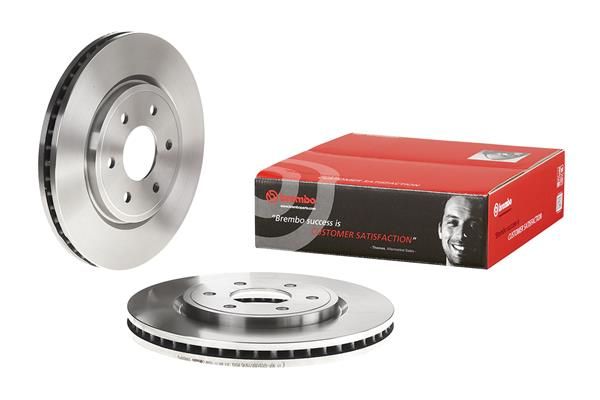

Brembo 09.B628.10 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B628.10

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£79.26 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN
NAVARA NP300 (D40)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4WD (D40TT, D40T, D40M, D40BB) 2488 CCM 190 HP From 12/2009
2.5 dCi 2488 CCM 144 HP From 07/2005
2.5 dCi 4WD 2488 CCM 174 HP From 07/2005
2.5 dCi 4WD 2488 CCM 171 HP From 10/2006
2.5 dCi 2488 CCM 163 HP From 10/2006
2.5 dCi 4WD 2488 CCM 144 HP From 01/2007
NAVARA NP300 Platform/Chassis (D40)
Description Cylinder Capacity Horse Power Year
2.5 dCi 2488 CCM 190 HP From 03/2010
2.5 dCi 4WD 2488 CCM 171 HP From 08/2008
2.5 dCi 4WD 2488 CCM 144 HP From 08/2008
PATHFINDER III (R51)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4WD 2488 CCM 174 HP 01/2005 - 01/2010
2.5 dCi 2488 CCM 174 HP 01/2005 - 01/2010
2.5 dCi 4WD 2488 CCM 171 HP From 10/2006
2.5 dCi 4WD 2488 CCM 190 HP From 08/2010
2.5 dCi 4WD 2488 CCM 163 HP From 01/2005

The Brembo 09.B628.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 38
Centering Diameter [mm] : 68
Outer Diameter [mm] : 296
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.B628.10
  • Barcode 8020584039991
  • NISSAN : 40206EB300 40206EB30A
  • BLUE PRINT : ADN143126
  • BORG & BECK : BBD4769
  • BOSCH : 0 986 479 356
  • DELPHI : BG4205
  • FEBI BILSTEIN : 108466
  • FTE : 9071237
  • FTE : 9081170
  • HELLA : 8DD 355 129-561
  • MEYLE : 36-15 521 0033
  • MINTEX : MDC2163
  • National : NBD1603
  • SKF : VKBD 80280 V2
  • TEXTAR : 92199603
  • TRW : DF6416
  • VALEO : 197643
