Brembo 09.B636.11 Brake Disc - 1
Brembo 09.B636.11 Brake Disc - 2
Brembo 09.B636.11 Brake Disc - 1
Brembo 09.B636.11 Brake Disc - 2
BREMBO

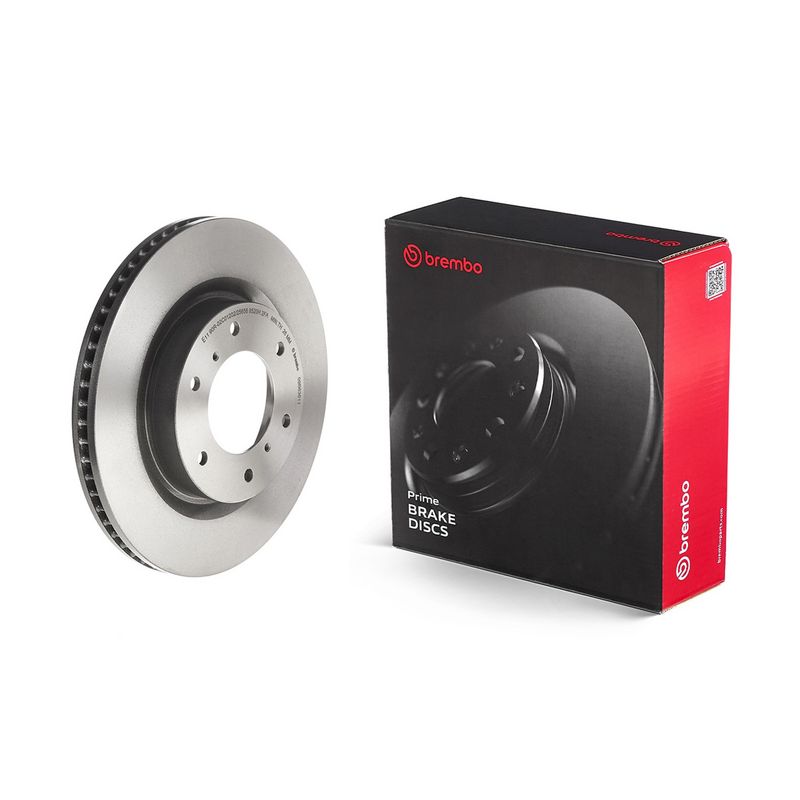

Brembo 09.B636.11 Brake Disc

SKU: 09.B636.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£64.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MITSUBISHI
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 190 HP From 02/2007
3.0 4WD (V83W, V93W) 2972 CCM 178 HP From 02/2007
3.8 V6 (V87W, V97W) 3828 CCM 250 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.8 V6 (V87W) 3828 CCM 248 HP From 10/2006
3.2 DI-D 3200 CCM 167 HP From 02/2007
3.0 4WD 2972 CCM 174 HP From 08/2014
3.2 4WD (V98W) 3200 CCM 192 HP From 10/2016
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
3.2 TD 4WD (V88V, V98V) 3200 CCM 200 HP From 01/2010
3.2 DI-D 4WD (V88W, V98W) 3200 CCM 190 HP From 02/2007

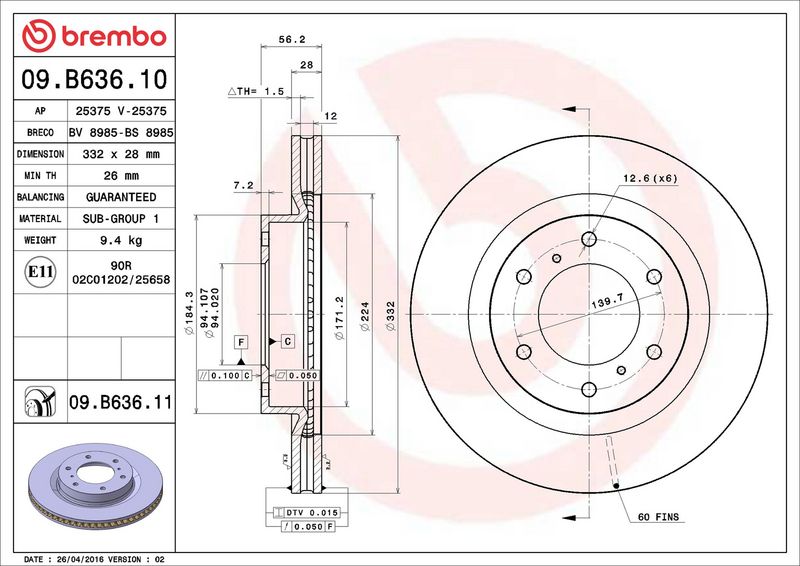

The Brembo 09.B636.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 94 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 56
Centering Diameter [mm] : 94
Outer Diameter [mm] : 332
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.B636.11
  • Barcode 8020584213834
  • MITSUBISHI : 4615A038
  • MITSUBISHI (GAC) : 4615A038
  • BLUE PRINT : ADC443114
  • BORG & BECK : BBD4754
  • BOSCH : 0 986 479 782
  • DELPHI : BG4228
  • FEBI BILSTEIN : 170599
  • FTE : 9071133
  • HELLA : 8DD 355 119-081
  • MEYLE : 32-15 521 0027/PD
  • MINTEX : MDC2039
  • SKF : VKBD 80433 V1
  • TEXTAR : 92167203
  • TRW : DF4943S
