BREMBO

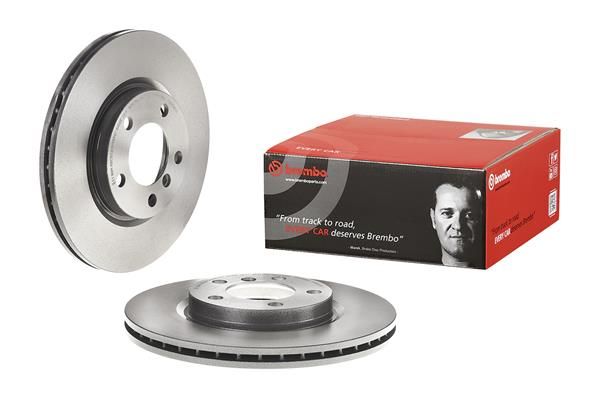

Brembo 09.B638.11 Brake Disc

SKU: 09.B638.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£106.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MINI
MINI COUNTRYMAN (R60)
Description Cylinder Capacity Horse Power Year
Cooper S ALL4 1598 CCM 163 HP 08/2010 - 10/2016
Cooper S 1598 CCM 200 HP 08/2010 - 10/2016
Cooper S 1598 CCM 184 HP 08/2010 - 10/2016
Cooper S ALL4 1598 CCM 184 HP 08/2010 - 10/2016
MINI PACEMAN (R61)
Description Cylinder Capacity Horse Power Year
Cooper S 1598 CCM 184 HP 11/2012 - 10/2016
Cooper S ALL4 1598 CCM 184 HP 03/2012 - 09/2016
John Cooper Works ALL4 1598 CCM 218 HP 03/2013 - 10/2016
Cooper S 1598 CCM 190 HP 07/2014 - 09/2016
Cooper S ALL4 1598 CCM 190 HP 03/2012 - 09/2016

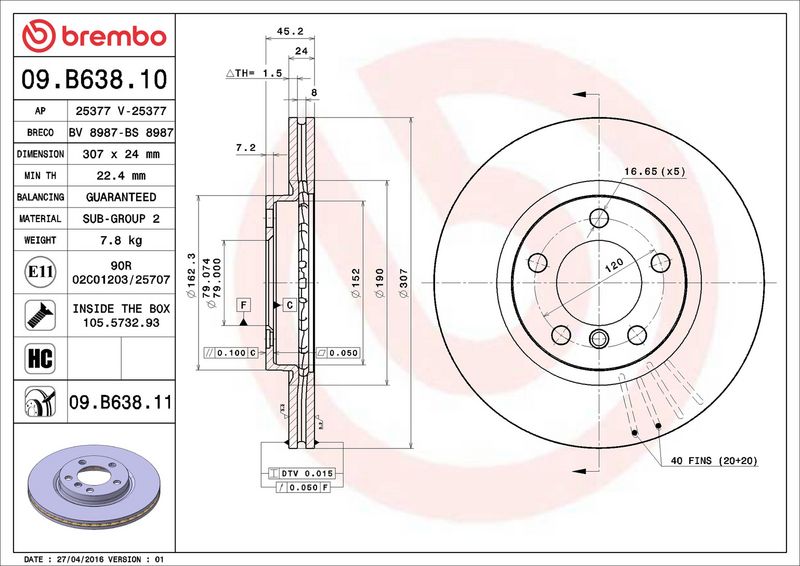

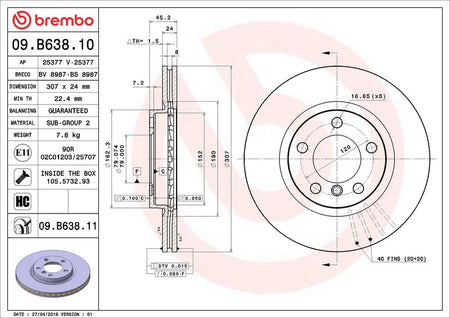

The Brembo 09.B638.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 45
Centering Diameter [mm] : 79
Outer Diameter [mm] : 307
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.B638.11
  • Barcode 8020584219041
  • MINI : 34119804829 34119811538
  • BLUE PRINT : ADB114312
  • BORG & BECK : BBD5336
  • BOSCH : 0 986 479 726
  • DELPHI : BG4771C
  • FEBI BILSTEIN : 43925
  • HELLA : 8DD 355 126-291
  • MEYLE : 315 521 0021/PD
  • MINTEX : MDC2779C
  • SKF : VKBD 80459 V1
  • TEXTAR : 92275600
  • TEXTAR : 92275605
  • TRW : DF6119S
  • VALEO : 197755
