Brembo 09.B647.11 Brake Disc - 1
Brembo 09.B647.11 Brake Disc - 2
Brembo 09.B647.11 Brake Disc - 1
Brembo 09.B647.11 Brake Disc - 2
BREMBO

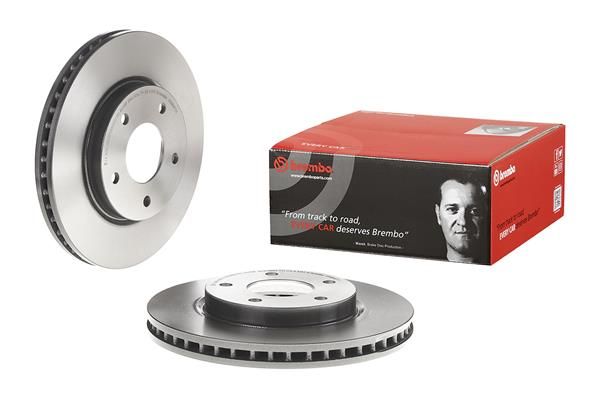

Brembo 09.B647.11 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B647.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£67.98 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MITSUBISHI
LANCER VII (CS_A, CT_A)
Description Cylinder Capacity Horse Power Year
2.0 i 1998 CCM 154 HP 10/2007 - 12/2013
LANCER VIII (CY_A, CZ_A)
Description Cylinder Capacity Horse Power Year
1.6 MIVEC 1590 CCM 117 HP From 05/2010
1.8 (CY3A, CY6A) 1798 CCM 140 HP From 05/2010
1.8 DI-D 1798 CCM 116 HP From 05/2010
1.8 Flexfuel (CY3A, CY6A) 1798 CCM 140 HP From 03/2009
2.0 1998 CCM 147 HP From 01/2009
2.0 i (CY4A) 1998 CCM 154 HP From 04/2007
1.8 (CY3A, CY6A) 1798 CCM 143 HP From 02/2008
2.0 DI-D (CY8A) 1968 CCM 140 HP From 01/2008
2.0 (CY4A) 1998 CCM 150 HP From 01/2013
1.5 1499 CCM 109 HP From 06/2008
2.0 i Ralliart 4WD (CY4A) 1998 CCM 241 HP From 10/2008
LANCER VIII Sportback (CX_A)
Description Cylinder Capacity Horse Power Year
1.6 MIVEC 1590 CCM 117 HP From 05/2010
1.8 MIVEC (CX3A, CX6A) 1798 CCM 140 HP From 03/2009
1.8 DI-D 1798 CCM 116 HP From 05/2010
1.8 Flex (CX3A, CX6A) 1798 CCM 140 HP From 03/2009
1.8 (CX3A) 1798 CCM 143 HP From 06/2008
2.0 DI-D (CX8A) 1968 CCM 140 HP From 06/2008
1.5 1499 CCM 109 HP From 06/2008
1.8 DI-D (CX9A) 1798 CCM 150 HP From 06/2010
1.8 Bifuel (CX3A, CX6A) 1798 CCM 143 HP From 02/2010
1.5 Bifuel 1499 CCM 109 HP From 03/2010

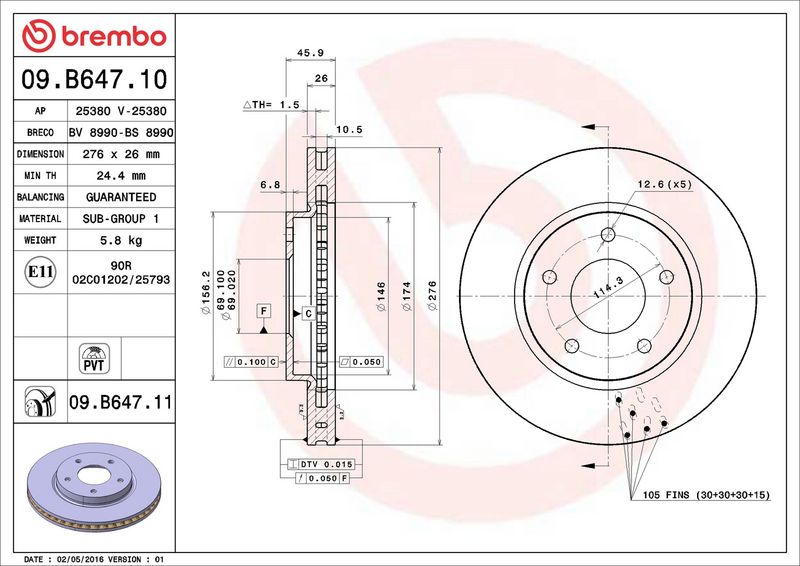

The Brembo 09.B647.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Height [mm] : 46
Centering Diameter [mm] : 69
Outer Diameter [mm] : 276
Surface : Coated
Minimum thickness [mm] : 24.4
  • Vendor BREMBO
  • SKU 09.B647.11
  • Barcode 8020584222300
  • MITSUBISHI : 4615A115 4615A190 MN116329 MN116330
  • PROTON : 4615A115 4615A190
  • BLUE PRINT : ADC443119
  • BOSCH : 0 986 479 604
  • BOSCH : 0 986 479 783
  • BOSCH : 0 986 479 S00
  • DELPHI : BG4258
  • FEBI BILSTEIN : 31275
  • FTE : 9072217
  • HELLA : 8DD 355 116-241
  • MEYLE : 32-15 521 0013
  • MINTEX : MDC2225
  • SKF : VKBD 80798 V2
  • TEXTAR : 92197403
  • TRW : DF4933
  • VALEO : 197593
