Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

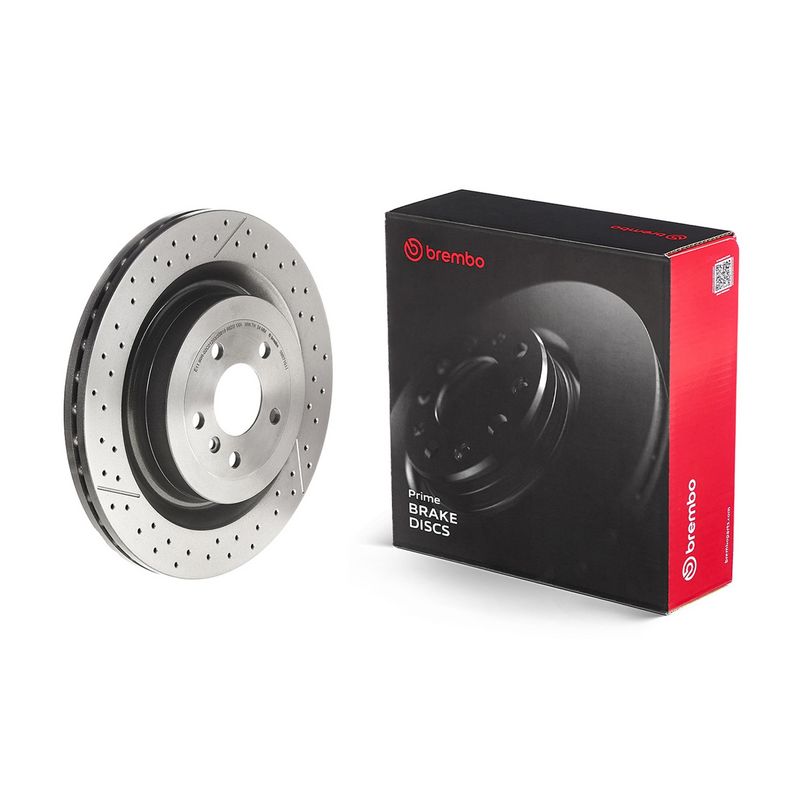

Brembo 09.B710.11 Brake Disc - 1
Brembo 09.B710.11 Brake Disc - 2
Brembo 09.B710.11 Brake Disc - 1
Brembo 09.B710.11 Brake Disc - 2
BREMBO

Brembo 09.B710.11 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B710.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£98.22 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
GL-CLASS (X166)
Description Cylinder Capacity Horse Power Year
GL 400 4-matic (166.856) 2996 CCM 333 HP 08/2013 - 10/2015
GL 350 CDI / BlueTec 4-matic (166.823, 166.824) 2987 CCM 258 HP 07/2012 - 10/2015
GL 500 4-matic (166.873) 4663 CCM 435 HP 07/2012 - 10/2015
GL 63 AMG 4-matic (166.874) 5461 CCM 558 HP 07/2012 - 10/2015
GL 63 AMG 4-matic (166.874) 5461 CCM 544 HP 07/2012 - 10/2015
GLE Coupe (C292)
Description Cylinder Capacity Horse Power Year
350 d 4-matic (292.323, 292.324) 2987 CCM 258 HP 03/2015 - 10/2019
400 4-matic (292.356) 2996 CCM 333 HP 03/2015 - 10/2019
450 AMG 4-matic (292.364) 2996 CCM 367 HP 03/2015 - 10/2019
AMG 63 4-matic (292.374) 5461 CCM 557 HP 03/2015 - 10/2019
AMG 63 S 4-matic (292.375) 5461 CCM 585 HP 03/2015 - 10/2019
500 4-matic (292.373) 4663 CCM 456 HP 10/2015 - 10/2019
AMG 43 4-matic (292.364) 2996 CCM 367 HP 05/2016 - 10/2019
AMG 43 4-matic (292.364) 2996 CCM 390 HP 06/2017 - 10/2019
GLE (W166)
Description Cylinder Capacity Horse Power Year
AMG 63 4-matic (166.074) 5461 CCM 557 HP 04/2015 - 10/2018
AMG 63 S 4-matic (166.075) 5461 CCM 585 HP 04/2015 - 10/2018
450 AMG 4-matic (166.064) 2996 CCM 367 HP 10/2015 - 10/2018
AMG 43 4-matic (166.064) 2996 CCM 367 HP 05/2016 - 10/2018
AMG 43 4-matic (166.064) 2996 CCM 390 HP 06/2017 - 10/2018
GLS (X166)
Description Cylinder Capacity Horse Power Year
350 d 4-matic (166.824) 2987 CCM 258 HP 11/2015 - 04/2019
400 4-matic (166.856) 2996 CCM 333 HP 11/2015 - 04/2019
500 4-matic (166.873) 4663 CCM 456 HP 11/2015 - 04/2019
AMG 63 4-matic (166.875) 5461 CCM 585 HP 11/2015 - 04/2019
M-CLASS (W166)
Description Cylinder Capacity Horse Power Year
ML 63 AMG 4-matic (166.074) 5461 CCM 558 HP 11/2011 - 02/2015
ML 63 AMG 4-matic (166.074) 5461 CCM 525 HP 11/2011 - 02/2015

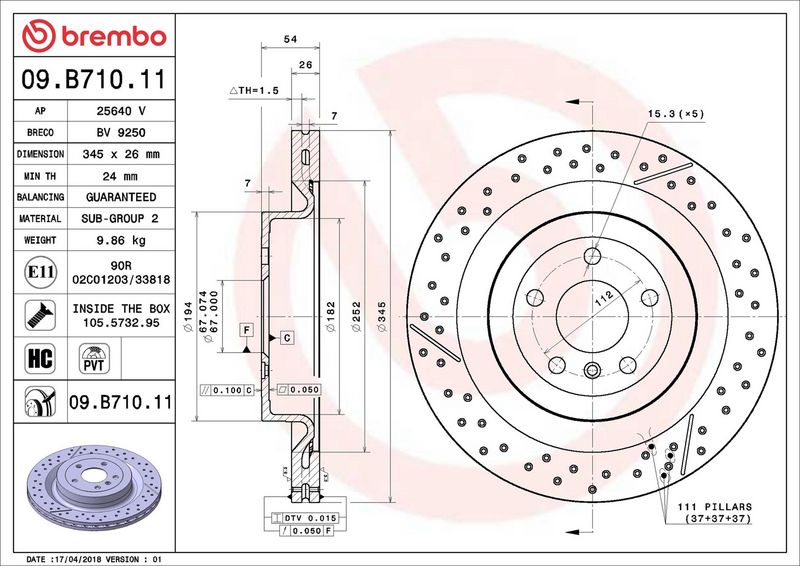

The Brembo 09.B710.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented and slotted/perforated disc construction, 26 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : slotted/perforated
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 54
Centering Diameter [mm] : 67
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 24
  • Vendor BREMBO
  • SKU 09.B710.11
  • Barcode 8020584233856
  • MERCEDES-BENZ : 1664230512 A1664230512
  • APEC : DSK3238
  • BLUE PRINT : ADU1743124
  • BORG & BECK : BBD6131S
  • BOSCH : 0 986 479 F69
  • DELPHI : BG9223C
  • FEBI BILSTEIN : 107712
  • HELLA : 8DD 355 132-461
  • MINTEX : MDC2901C
  • TEXTAR : 92307905
  • TRW : DF6835S
