Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.B744.51 Brake Disc - 1
Brembo 09.B744.51 Brake Disc - 2
Brembo 09.B744.51 Brake Disc - 1
Brembo 09.B744.51 Brake Disc - 2
BREMBO

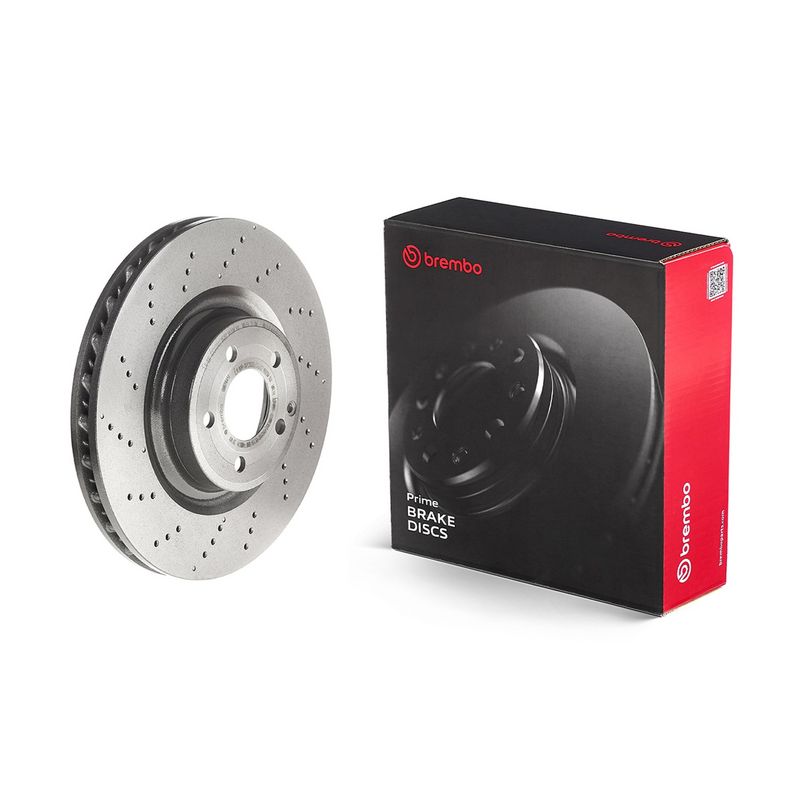

Brembo 09.B744.51 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B744.51

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£76.20 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
E-CLASS (W212)
Description Cylinder Capacity Horse Power Year
E 350 CDI 4-matic (212.093) 2987 CCM 265 HP 03/2011 - 12/2015
E 350 4-matic (212.088) 3498 CCM 306 HP 09/2011 - 12/2015
E-CLASS T-Model (S212)
Description Cylinder Capacity Horse Power Year
E 350 CDI 4-matic (212.293) 2987 CCM 265 HP 07/2011 - 12/2013
E 350 4-matic (212.288) 3498 CCM 306 HP 09/2011 - 12/2016
SLC (R172)
Description Cylinder Capacity Horse Power Year
250 d (172.404) 2143 CCM 204 HP 01/2016 - 10/2017
180 (172.431) 1595 CCM 156 HP From 01/2016
200 (172.434) 1991 CCM 184 HP From 01/2016
300 (172.438) 1991 CCM 245 HP From 01/2016
AMG SLC 43 (172.466) 2996 CCM 367 HP From 01/2016
AMG SLC 43 (172.466) 2996 CCM 390 HP From 06/2018
SLK (R172)
Description Cylinder Capacity Horse Power Year
250 (172.447) 1796 CCM 204 HP From 02/2011
200 (172.448) 1796 CCM 184 HP From 02/2011
350 (172.457) 3498 CCM 306 HP From 02/2011
250 CDI / d (172.403) 2143 CCM 204 HP From 01/2012
300 (172.438) 1991 CCM 245 HP From 07/2015
200 (172.434) 1991 CCM 184 HP From 04/2015

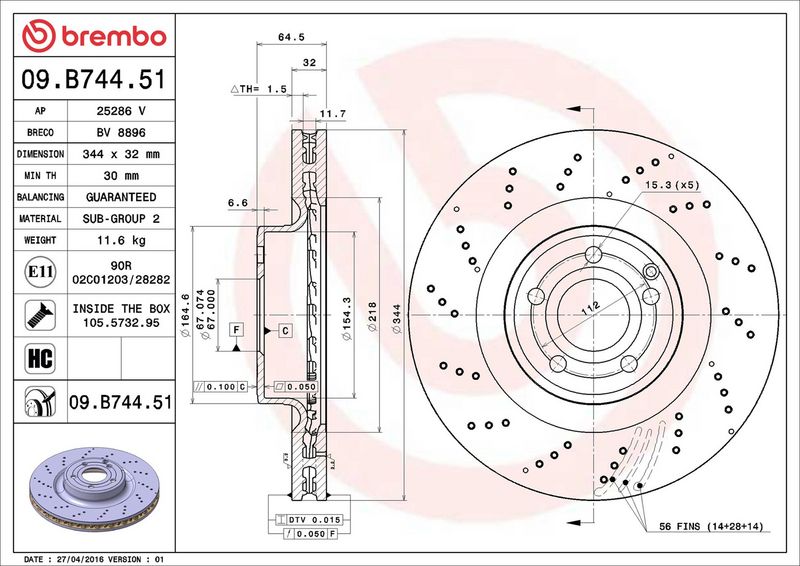

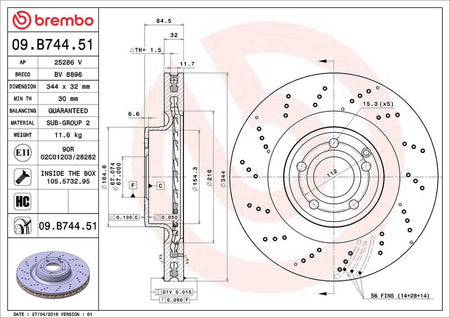

The Brembo 09.B744.51 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 67
Outer Diameter [mm] : 344
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.B744.51
  • Barcode 8020584037522
  • MERCEDES-BENZ : 0004211612 1724210212 A0004211612 A1724210212
  • APEC : DSK3213
  • BLUE PRINT : ADU174363
  • BORG & BECK : BBD6102S
  • BOSCH : 0 986 479 A17
  • DELPHI : BG9205C
  • FEBI BILSTEIN : 37724
  • FEBI BILSTEIN : 44007
  • FEBI BILSTEIN : 44008
  • HELLA : 8DD 355 122-891
  • MEYLE : 083 521 0019/PD
  • MINTEX : MDC2704
  • NAPA : NBD5845
  • TEXTAR : 92277605
  • TRW : DF6674S
  • VALEO : 197480
