Brembo 09.B745.41 Brake Disc - 1
Brembo 09.B745.41 Brake Disc - 2
Brembo 09.B745.41 Brake Disc - 1
Brembo 09.B745.41 Brake Disc - 2
BREMBO

Brembo 09.B745.41 Brake Disc

SKU: 09.B745.41
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£123.72 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
CLS (C219)
Description Cylinder Capacity Horse Power Year
CLS 500 (219.372) 5461 CCM 388 HP 04/2006 - 12/2010
CLS (C218)
Description Cylinder Capacity Horse Power Year
CLS 500 (218.373) 4663 CCM 408 HP 02/2011 - 12/2017
CLS 500 4-matic (218.391) 4663 CCM 408 HP 09/2011 - 12/2017
CLS Shooting Brake (X218)
Description Cylinder Capacity Horse Power Year
CLS 500 (218.973) 4663 CCM 408 HP 10/2012 - 12/2017
CLS 500 4-matic (218.991) 4663 CCM 408 HP 10/2012 - 12/2017
E-CLASS (W212)
Description Cylinder Capacity Horse Power Year
E 500 (212.073) 4663 CCM 408 HP 09/2011 - 12/2015
E 500 4-matic (212.091) 4663 CCM 408 HP 09/2011 - 12/2015
E-CLASS T-Model (S212)
Description Cylinder Capacity Horse Power Year
E 350 CDI (212.223) 2987 CCM 265 HP 07/2011 - 12/2013
E 350 CDI 4-matic (212.293) 2987 CCM 265 HP 07/2011 - 12/2013
E 500 4-matic (212.291) 4663 CCM 408 HP 09/2011 - 12/2016
E 500 (212.273) 4663 CCM 408 HP 09/2011 - 12/2016
E 350 (212.259) 3498 CCM 306 HP 09/2011 - 12/2014
E 350 4-matic (212.288) 3498 CCM 306 HP 09/2011 - 12/2016
E 250 CDI / BlueTEC 4-matic (212.282, 212.297) 2143 CCM 204 HP 07/2010 - 12/2016
E 300 4-matic (212.280) 3498 CCM 252 HP 07/2011 - 12/2016
E 300 (212.255) 3498 CCM 252 HP 07/2011 - 12/2016
E 200 CDI / BlueTEC (212.205, 212.206) 2143 CCM 136 HP 11/2009 - 12/2016
E 220 CDI / BlueTEC (212.202, 212.201) 2143 CCM 170 HP 11/2009 - 12/2016
E 250 CDI / BlueTEC (212.203, 212.204) 2143 CCM 204 HP 11/2009 - 12/2016
E 350 CDI (212.225) 2987 CCM 231 HP 11/2009 - 12/2011

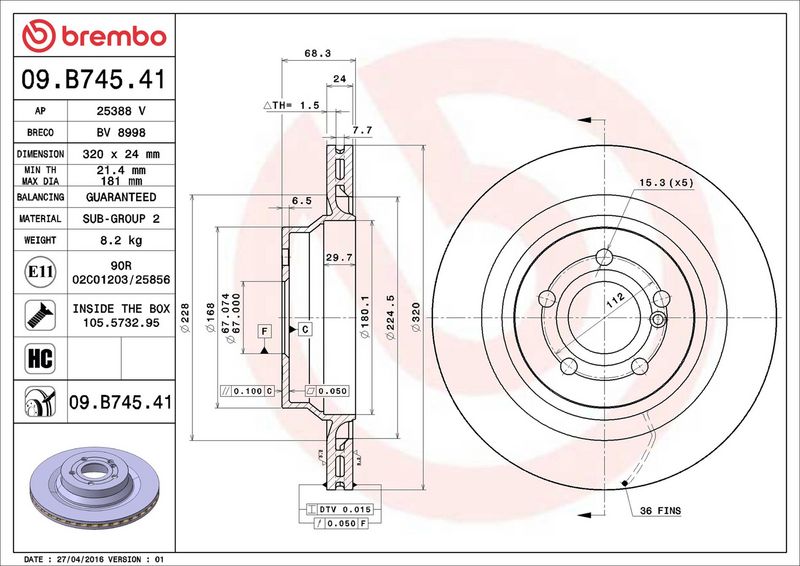

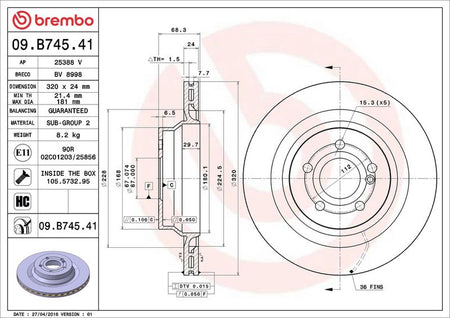

The Brembo 09.B745.41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 68
Centering Diameter [mm] : 67
Outer Diameter [mm] : 320
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 21.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.B745.41
  • Barcode 8020584037607
  • MERCEDES-BENZ : 0004231112 2194230012 A0004231112 A2194230012
  • APEC : DSK3274
  • BLUE PRINT : ADU1743102
  • BORG & BECK : BBD6118S
  • BOSCH : 0 986 479 654
  • DELPHI : BG4705C
  • FEBI BILSTEIN : 43977
  • HELLA : 8DD 355 122-951
  • MINTEX : MDC2708
  • SKF : VKBD 91265 V1
  • TEXTAR : 92233705
  • TRW : DF6826S
