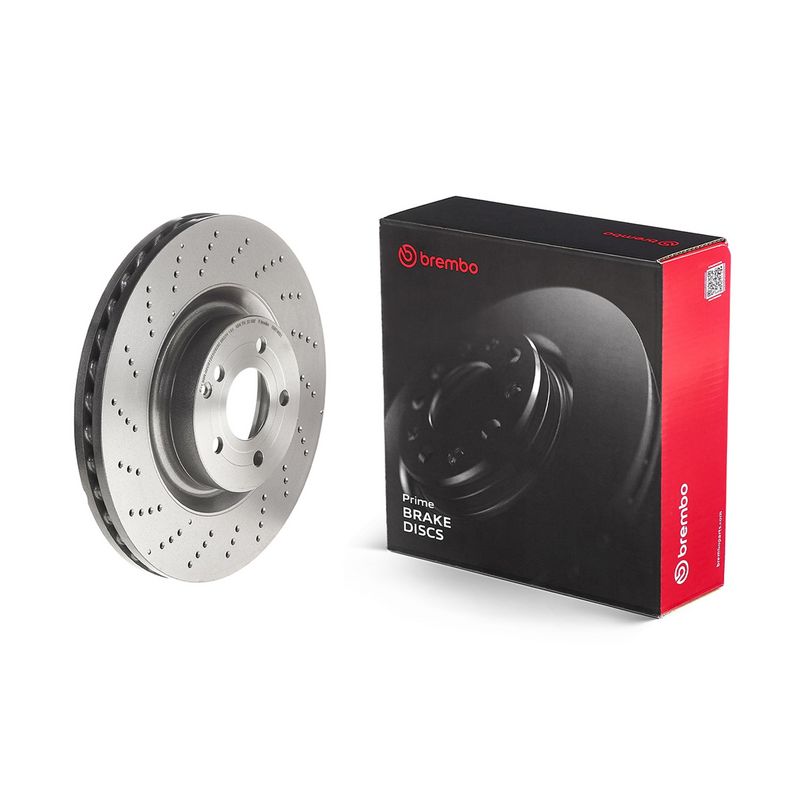

Brembo 09.B746.51 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B746.51

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£114.47 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
E-CLASS (W212)
Description Cylinder Capacity Horse Power Year
E 300 CDI / BlueTEC (212.020, 212.021, 212.027) 2987 CCM 231 HP 03/2011 - 12/2015
E 350 CDI (212.023) 2987 CCM 265 HP 03/2011 - 12/2015
E 350 CDI 4-matic (212.093) 2987 CCM 265 HP 03/2011 - 12/2015
E 350 (212.059) 3498 CCM 306 HP 09/2011 - 12/2015
E-CLASS T-Model (S212)
Description Cylinder Capacity Horse Power Year
E 350 CDI (212.223) 2987 CCM 265 HP 07/2011 - 12/2013
E 350 (212.259) 3498 CCM 306 HP 09/2011 - 12/2014

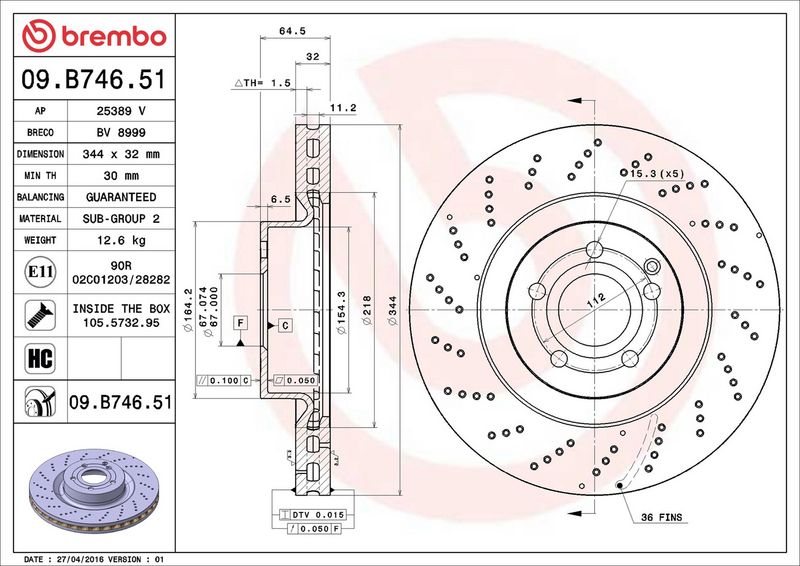

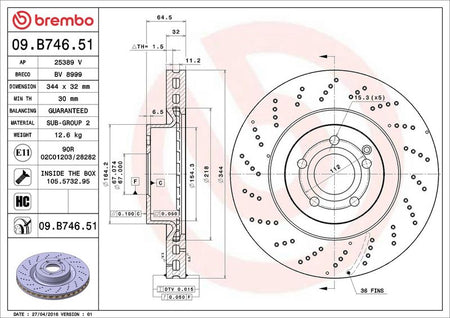

The Brembo 09.B746.51 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 67
Outer Diameter [mm] : 344
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.B746.51
  • Barcode 8020584038321
  • MERCEDES-BENZ : 0004211512 000421151207 2044211112 A0004211512 A2044211112
  • MERCEDES-BENZ (BBDC) : A0004211512
  • BLUE PRINT : ADU174363
  • BORG & BECK : BBD5953S
  • BOSCH : 0 986 479 764
  • DELPHI : BG9188C
  • FEBI BILSTEIN : 37724
  • FEBI BILSTEIN : 44007
  • FEBI BILSTEIN : 44008
  • HELLA : 8DD 355 116-951
  • MEYLE : 083 521 0019/PD
  • MINTEX : MDC2251
  • TEXTAR : 92224605
