Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

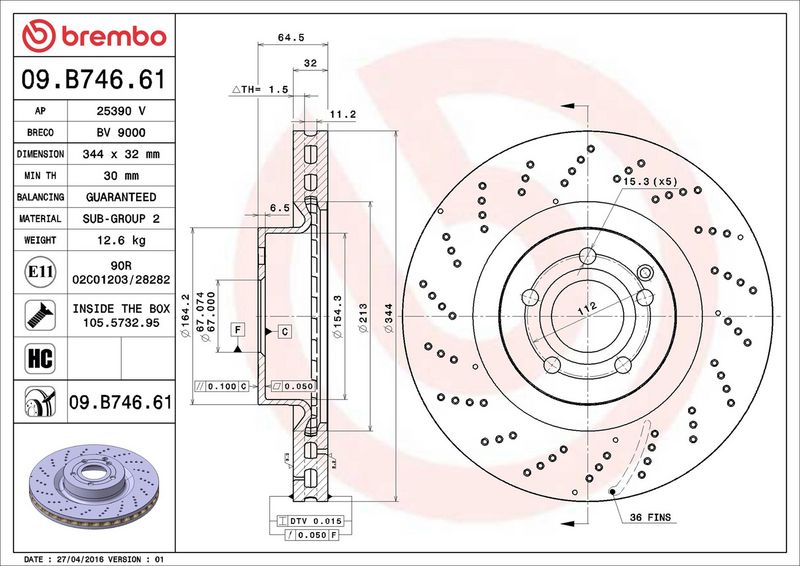

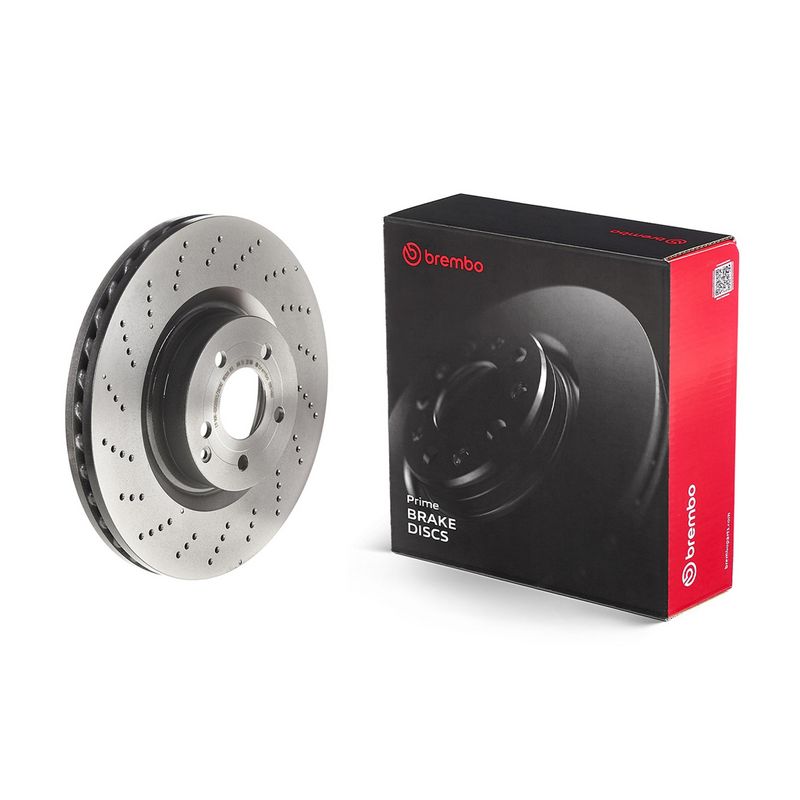

Brembo 09.B746.61 Brake Disc - 1
Brembo 09.B746.61 Brake Disc - 2
Brembo 09.B746.61 Brake Disc - 1
Brembo 09.B746.61 Brake Disc - 2
BREMBO

Brembo 09.B746.61 Brake Disc

SKU: 09.B746.61
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£84.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
C-CLASS Coupe (C204)
Description Cylinder Capacity Horse Power Year
C 250 CDI (204.303) 2143 CCM 204 HP From 06/2011
C 180 (204.349) 1796 CCM 156 HP From 06/2011
C 250 (204.347) 1796 CCM 204 HP From 06/2011
C 200 CGI (204.348) 1796 CCM 184 HP From 06/2011
E-CLASS Coupe (C207)
Description Cylinder Capacity Horse Power Year
E 500 (207.372) 5461 CCM 388 HP 01/2009 - 12/2016
E 400 (207.365) 2996 CCM 333 HP 06/2013 - 12/2016
E-CLASS Convertible (A207)
Description Cylinder Capacity Horse Power Year
E 500 (207.472) 5461 CCM 388 HP 01/2010 - 12/2011

The Brembo 09.B746.61 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 67
Outer Diameter [mm] : 344
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.B746.61
  • Barcode 8020584038239
  • MERCEDES-BENZ : 0004211412 2074210012 A0004211412 A2074210012
  • BLUE PRINT : ADU174363
  • BORG & BECK : BBD5953S
  • BOSCH : 0 986 479 764
  • DELPHI : BG9188C
  • FEBI BILSTEIN : 37724
  • FEBI BILSTEIN : 44007
  • FEBI BILSTEIN : 44008
  • FTE : 9071330
  • FTE : 9081161
  • HELLA : 8DD 355 116-951
  • MEYLE : 083 521 0019/PD
  • MINTEX : MDC2251
  • National : NBD2118
  • TEXTAR : 92224605
  • TRW : DF6775S
