BREMBO

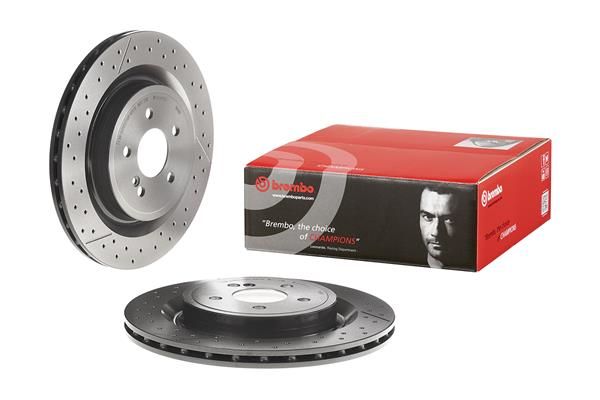

Brembo 09.B788.11 Brake Disc

SKU: 09.B788.11
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£127.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 45 AMG 4-matic (176.052) 1991 CCM 360 HP 06/2013 - 05/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 45 AMG 4-matic (117.352) 1991 CCM 360 HP 07/2013 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 45 AMG 4-matic (117.952) 1991 CCM 360 HP 01/2015 - 07/2015
AMG CLA 45 4-matic (117.952) 1991 CCM 381 HP 07/2015 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 45 AMG 4-matic (156.952) 1991 CCM 360 HP 03/2014 - 06/2019
AMG GLA 45 4-matic (156.952) 1991 CCM 381 HP 07/2015 - 06/2019
SLC (R172)
Description Cylinder Capacity Horse Power Year
AMG SLC 43 (172.466) 2996 CCM 367 HP From 01/2016
AMG SLC 43 (172.466) 2996 CCM 390 HP From 06/2018
SLK (R172)
Description Cylinder Capacity Horse Power Year
55 AMG (172.475) 5461 CCM 422 HP From 01/2012

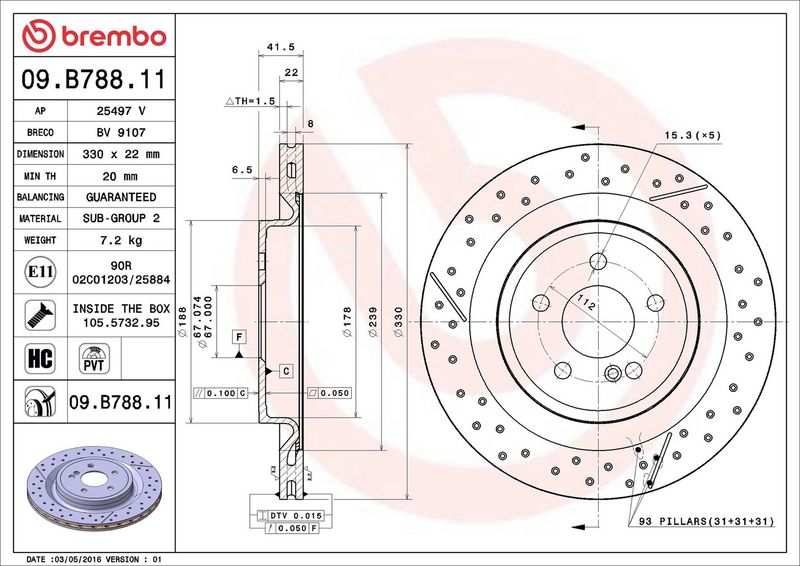

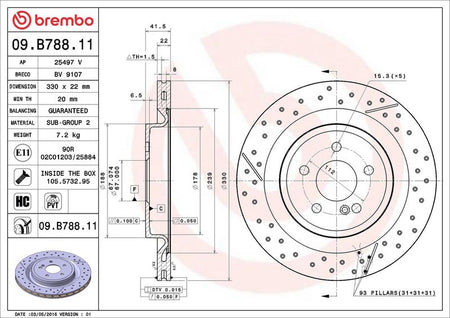

The Brembo 09.B788.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented and slotted/perforated disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : slotted/perforated
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 42
Centering Diameter [mm] : 67
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20
  • Vendor BREMBO
  • SKU 09.B788.11
  • Barcode 8020584220030
  • MERCEDES-BENZ : 1724230112 A1724230112
  • APEC : DSK3278
  • APEC : SDK7002
  • BLUE PRINT : ADU1743120
  • BORG & BECK : BBD6129S
  • DELPHI : BG4958C
  • FEBI BILSTEIN : 107722
  • HELLA : 8DD 355 126-441
  • MINTEX : MDC2793C
  • NAPA : NBD5941
  • National : NBD2086
  • TEXTAR : 92290605
  • TRW : DF6900
