BREMBO

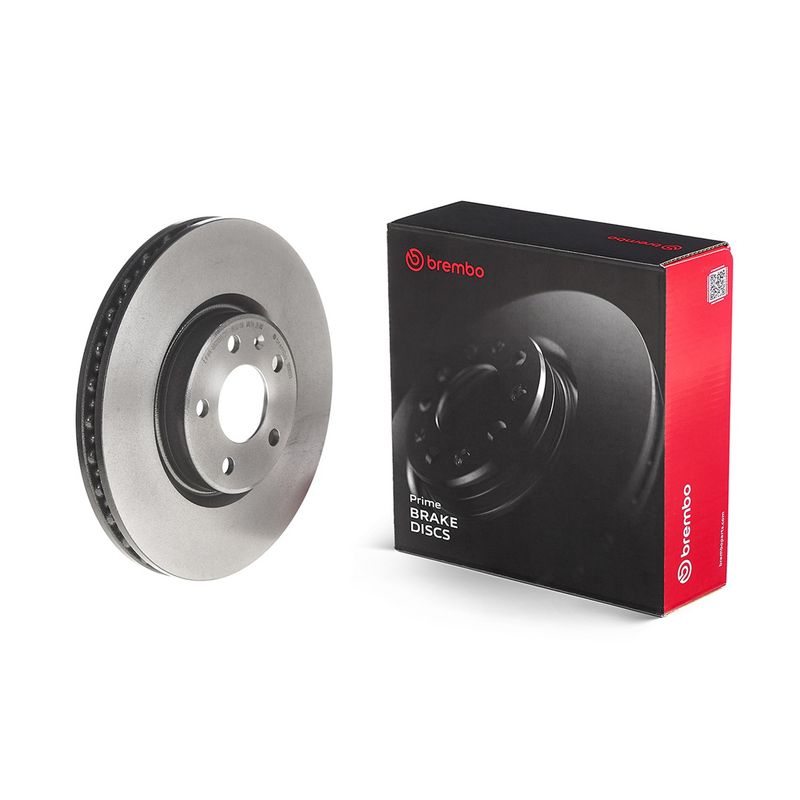

Brembo 09.B822.11 Brake Disc

SKU: 09.B822.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£68.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
Q5 (8RB)
Description Cylinder Capacity Horse Power Year
2.0 TFSI Hybrid quattro 1984 CCM 245 HP 06/2011 - 06/2016
2.0 TDI 1968 CCM 136 HP 11/2010 - 05/2017
2.0 TDI 1968 CCM 143 HP 11/2010 - 05/2013
3.0 TDI quattro 2967 CCM 240 HP 11/2008 - 05/2017
2.0 TFSI quattro 1984 CCM 180 HP 08/2009 - 05/2017
2.0 TDI quattro 1968 CCM 143 HP 08/2009 - 05/2013
2.0 TDI quattro 1968 CCM 136 HP 08/2009 - 05/2017
2.0 TDI quattro 1968 CCM 163 HP 11/2008 - 05/2017
3.0 TDI quattro 2967 CCM 245 HP 06/2012 - 05/2017
2.0 TDI quattro 1968 CCM 177 HP 06/2012 - 05/2017
SQ5 TDI quattro 2967 CCM 313 HP 12/2012 - 11/2015
2.0 TFSI quattro 1984 CCM 224 HP 06/2012 - 05/2016

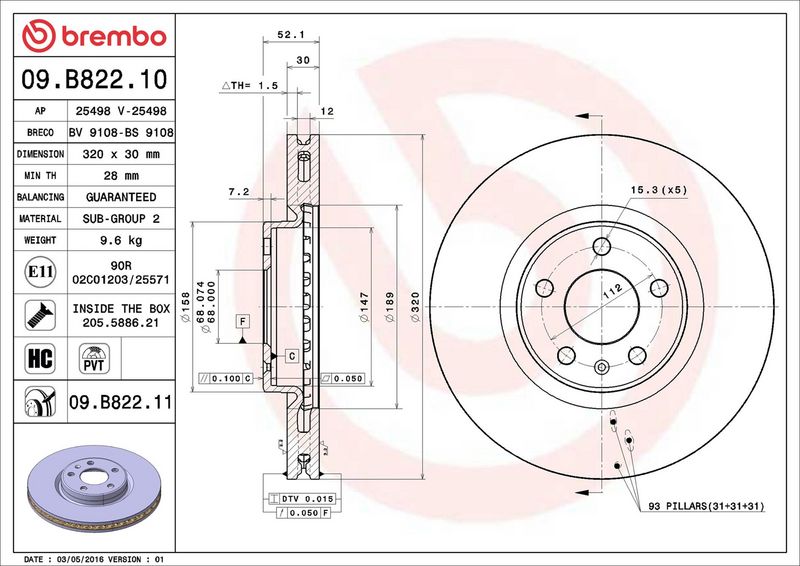

The Brembo 09.B822.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 52
Centering Diameter [mm] : 68
Outer Diameter [mm] : 320
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
  • Vendor BREMBO
  • SKU 09.B822.11
  • Barcode 8020584213698
  • AUDI : 8R0615301B 8R0615301C 8R0615301E 8R0615301G
  • BLUE PRINT : ADV184368
  • BORG & BECK : BBD5990S
  • BOSCH : 0 986 479 C49
  • DELPHI : BG4346C
  • FEBI BILSTEIN : 44022
  • FTE : 9071027
  • HELLA : 8DD 355 117-191
  • MEYLE : 183 521 0022/PD
  • MINTEX : MDC2263
  • SKF : VKBD 80178 V1
  • TEXTAR : 92229303
  • TEXTAR : 92229305
  • TRW : DF6148
  • VALEO : 672637
