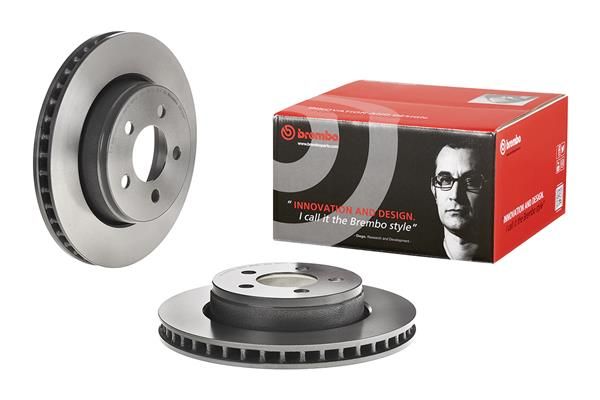

Brembo 09.C004.11 Brake Disc - 1

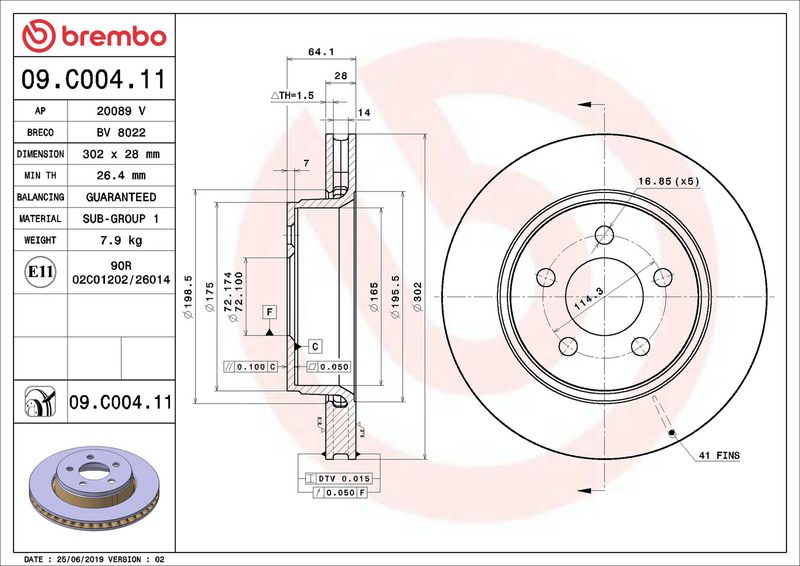

Brembo 09.C004.11 Brake Disc - 2
Brembo 09.C004.11 Brake Disc - 1
Brembo 09.C004.11 Brake Disc - 2
BREMBO

Brembo 09.C004.11 Brake Disc

SKU: 09.C004.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£99.82 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DODGE
NITRO
Description Cylinder Capacity Horse Power Year
2.8 CRD 4WD 2777 CCM 177 HP 06/2007 - 12/2012
2.8 CRD 2777 CCM 177 HP 06/2007 - 12/2012
3.7 V6 4WD 3700 CCM 205 HP 06/2007 - 12/2012
4.0 4WD 3952 CCM 260 HP 09/2006 - 12/2007
3.7 3700 CCM 214 HP 09/2006 - 12/2012
3.7 4WD 3700 CCM 214 HP 09/2006 - 12/2012
NITRO VAN (KA)
Description Cylinder Capacity Horse Power Year
4.0 4WD 3952 CCM 260 HP 09/2006 - 12/2011
JEEP
COMPASS (MK49)
Description Cylinder Capacity Horse Power Year
2.4 2360 CCM 170 HP From 08/2006
LIBERTY (KK)
Description Cylinder Capacity Horse Power Year
3.7 V6 All-wheel Drive 3700 CCM 213 HP 01/2008 - 08/2012
2.8 CRD 4x4 2777 CCM 177 HP From 05/2008
3.7 V6 4x4 3700 CCM 205 HP From 01/2008
2.8 CRD 4x4 2777 CCM 200 HP From 01/2010
3.7 V6 3700 CCM 205 HP 01/2008 - 03/2013

The Brembo 09.C004.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 64
Centering Diameter [mm] : 72
Outer Diameter [mm] : 302
Surface : Coated
Minimum thickness [mm] : 26.4
  • Vendor BREMBO
  • SKU 09.C004.11
  • Barcode 8020584216354
  • CHRYSLER : 52109938AB
  • DODGE : 2AMV9938AB 52109938AB
  • JEEP : 52109938AB
  • APEC : DSK2706
  • BLUE PRINT : ADA104355
  • BOSCH : 0 986 479 U04
  • DELPHI : BG4642
  • DELPHI : BG4642C
  • FEBI BILSTEIN : 170070
  • HELLA : 8DD 355 119-241
  • MINTEX : MDC2501
  • SKF : VKBD 80313 V2
  • TEXTAR : 92203303
  • TRW : DF6264
