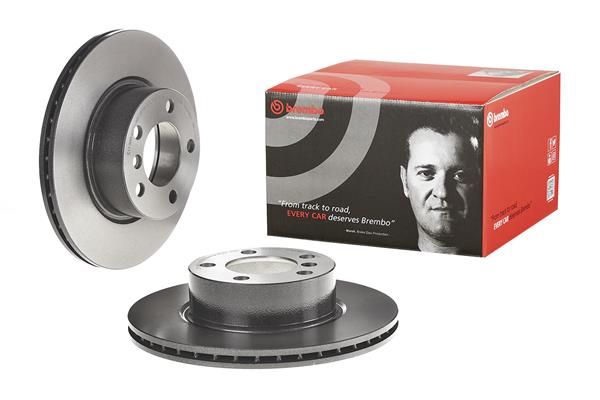

Brembo 09.C114.11 Brake Disc

SKU: 09.C114.11
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£112.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
1 Sports Hatch (F20)
Description Cylinder Capacity Horse Power Year
120 d 1995 CCM 163 HP 07/2011 - 06/2019
118 i 1598 CCM 170 HP 07/2011 - 02/2015
120 d 1995 CCM 184 HP 07/2011 - 02/2015
1 Sports Hatch (F21)
Description Cylinder Capacity Horse Power Year
118 d xDrive 1995 CCM 143 HP 05/2013 - 02/2015
118 i 1598 CCM 170 HP 07/2012 - 06/2019
120 d 1995 CCM 163 HP 07/2012 - 06/2019
120 d 1995 CCM 184 HP 07/2012 - 02/2015
120 d xDrive 1995 CCM 184 HP 02/2012 - 02/2015
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 184 HP 11/2011 - 03/2016
320 d 1995 CCM 163 HP 11/2011 - 10/2018
320 i 1997 CCM 184 HP 03/2012 - 10/2018
316 d 1995 CCM 116 HP 03/2012 - 10/2018
318 d 1995 CCM 143 HP 03/2012 - 06/2015
318 d 1995 CCM 136 HP 03/2012 - 10/2018
320 i xDrive 1997 CCM 184 HP 07/2012 - 10/2018
316 i 1598 CCM 136 HP 07/2012 - 08/2016
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
320 i 1997 CCM 184 HP 03/2013 - 06/2016
318 d 1995 CCM 143 HP 03/2013 - 06/2015
320 i xDrive 1997 CCM 184 HP 11/2012 - 06/2016
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
320 i 1997 CCM 184 HP 11/2012 - 06/2015
316 d 1995 CCM 116 HP 11/2012 - 06/2019
318 d 1995 CCM 143 HP 11/2012 - 06/2015
320 d 1995 CCM 184 HP 07/2012 - 02/2016
320 d 1995 CCM 163 HP 07/2012 - 06/2019
320 i xDrive 1997 CCM 184 HP 03/2013 - 06/2015
316 i 1598 CCM 136 HP 03/2013 - 06/2015
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
420 i 1997 CCM 184 HP 11/2013 - 02/2017
420 i xDrive 1997 CCM 184 HP 11/2013 - 02/2016
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
420 i 1997 CCM 184 HP 07/2014 - 02/2016
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
418 d 1995 CCM 143 HP 03/2014 - 06/2015
420 i 1997 CCM 184 HP 03/2014 - 02/2017
420 i xDrive 1997 CCM 184 HP 07/2014 - 02/2016

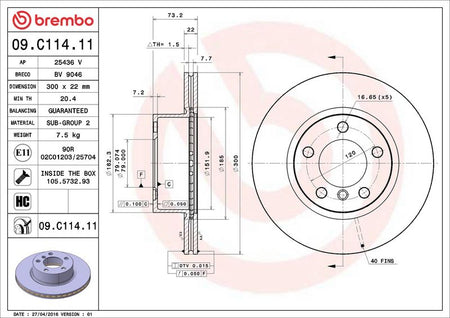

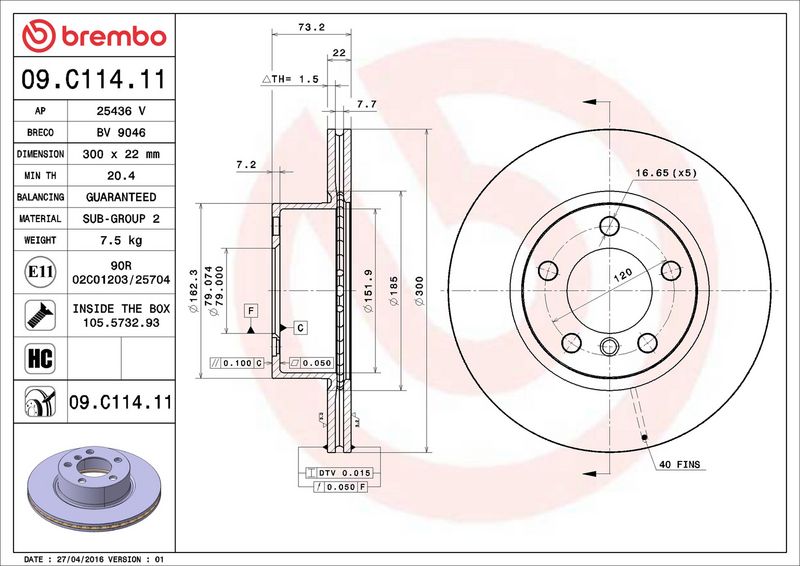

The Brembo 09.C114.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 73
Centering Diameter [mm] : 79
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20.4
  • Vendor BREMBO
  • SKU 09.C114.11
  • Barcode 8020584220986
  • BMW : 34116792217 6792217
  • BMW (BRILLIANCE) : 34116792217 6792217
  • APEC : DSK2970
  • APEC : SDK6732
  • BLUE PRINT : ADB114331
  • BORG & BECK : BBD5264
  • BOSCH : 0 986 479 A18
  • DELPHI : BG4645C
  • Fahren : FBD6732
  • FEBI BILSTEIN : 39111
  • FTE : 9071036
  • HELLA : 8DD 355 118-041
  • HELLA : 8DD 355 129-401
  • MEYLE : 383 521 0014/PD
  • MINTEX : MDC2351
  • NAPA : NBD5229
  • National : NBD1815
  • SKF : VKBD 80060 V1
  • TEXTAR : 92238505
  • TRW : DF6143S
  • VALEO : 197789
  • VALEO : 672590
