Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.C114.75 Brake Disc - 1
Brembo 09.C114.75 Brake Disc - 2
Brembo 09.C114.75 Brake Disc - 1
Brembo 09.C114.75 Brake Disc - 2
BREMBO

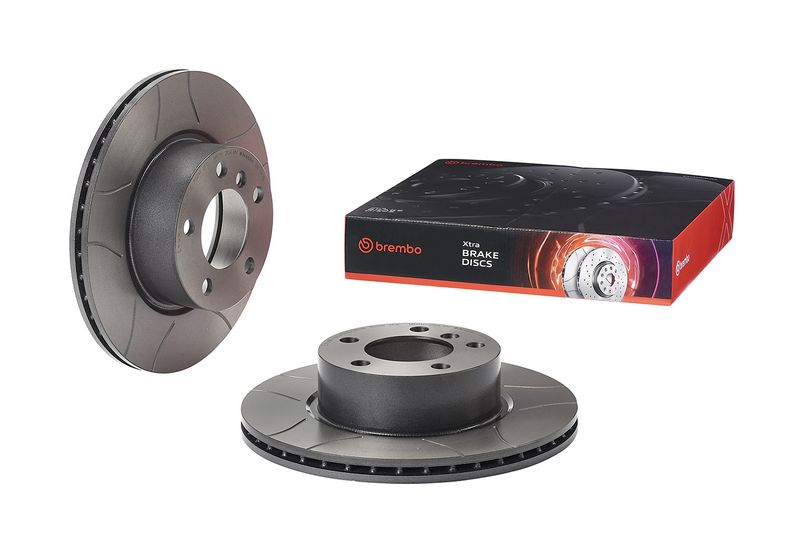

Brembo 09.C114.75 Brake Disc

SKU: 09.C114.75
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£270.12 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
1 Sports Hatch (F20)
Description Cylinder Capacity Horse Power Year
120 d 1995 CCM 163 HP 07/2011 - 06/2019
118 i 1598 CCM 170 HP 07/2011 - 02/2015
120 d 1995 CCM 184 HP 07/2011 - 02/2015
1 Sports Hatch (F21)
Description Cylinder Capacity Horse Power Year
118 d xDrive 1995 CCM 143 HP 05/2013 - 02/2015
118 i 1598 CCM 170 HP 07/2012 - 06/2019
120 d 1995 CCM 163 HP 07/2012 - 06/2019
120 d 1995 CCM 184 HP 07/2012 - 02/2015
120 d xDrive 1995 CCM 184 HP 02/2012 - 02/2015
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 184 HP 11/2011 - 03/2016
320 d 1995 CCM 163 HP 11/2011 - 10/2018
320 i 1997 CCM 184 HP 03/2012 - 10/2018
316 d 1995 CCM 116 HP 03/2012 - 10/2018
318 d 1995 CCM 143 HP 03/2012 - 06/2015
318 d 1995 CCM 136 HP 03/2012 - 10/2018
320 i xDrive 1997 CCM 184 HP 07/2012 - 10/2018
316 i 1598 CCM 136 HP 07/2012 - 08/2016
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
320 i 1997 CCM 184 HP 03/2013 - 06/2016
318 d 1995 CCM 143 HP 03/2013 - 06/2015
320 i xDrive 1997 CCM 184 HP 11/2012 - 06/2016
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
320 i 1997 CCM 184 HP 11/2012 - 06/2015
316 d 1995 CCM 116 HP 11/2012 - 06/2019
318 d 1995 CCM 143 HP 11/2012 - 06/2015
320 d 1995 CCM 184 HP 07/2012 - 02/2016
320 d 1995 CCM 163 HP 07/2012 - 06/2019
320 i xDrive 1997 CCM 184 HP 03/2013 - 06/2015
316 i 1598 CCM 136 HP 03/2013 - 06/2015
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
420 i 1997 CCM 184 HP 11/2013 - 02/2017
420 i xDrive 1997 CCM 184 HP 11/2013 - 02/2016
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
420 i 1997 CCM 184 HP 07/2014 - 02/2016
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
418 d 1995 CCM 143 HP 03/2014 - 06/2015
420 i 1997 CCM 184 HP 03/2014 - 02/2017
420 i xDrive 1997 CCM 184 HP 07/2014 - 02/2016

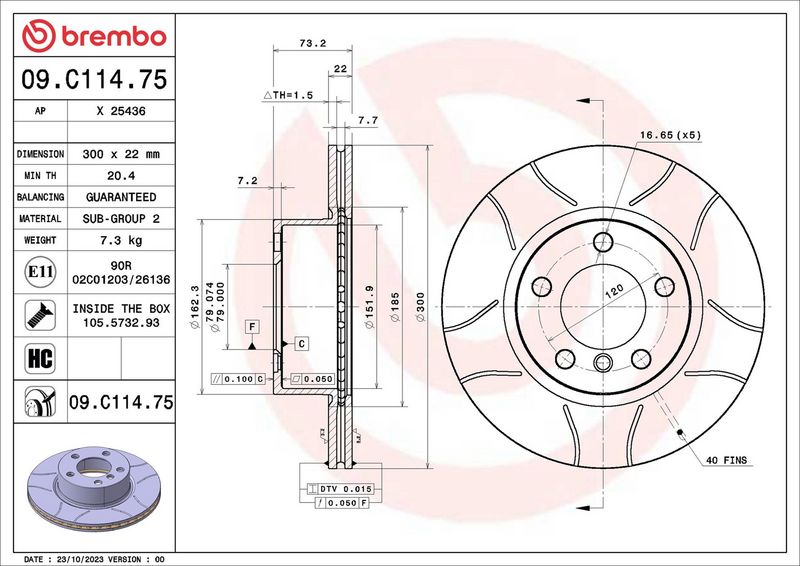

The Brembo 09.C114.75 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented and slotted disc construction, 22 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : slotted
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 73
Centering Diameter [mm] : 79
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20.4
  • Vendor BREMBO
  • SKU 09.C114.75
  • Barcode 8020584326121
  • BMW : 34116792217 6792217
  • BMW (BRILLIANCE) : 34116792217 6792217
  • BLUE PRINT : ADB114331
  • BOSCH : 0 986 479 A18
  • FEBI BILSTEIN : 39111
  • HELLA : 8DD 355 118-041
  • HELLA : 8DD 355 129-401
  • MINTEX : MDC2351
  • TEXTAR : 92238503
  • TEXTAR : 92238505
  • TRW : DF6143S
