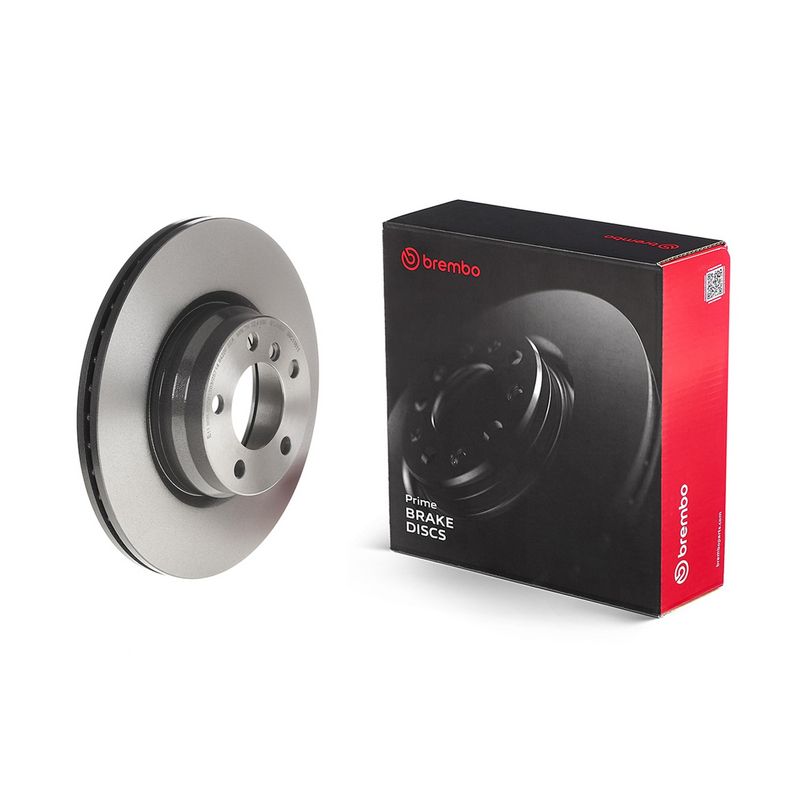

Brembo 09.C116.11 Brake Disc - 1
Brembo 09.C116.11 Brake Disc - 2
Brembo 09.C116.11 Brake Disc - 1
Brembo 09.C116.11 Brake Disc - 2
BREMBO

Brembo 09.C116.11 Brake Disc

SKU: 09.C116.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£69.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
2 Coupe (F22, F87)
Description Cylinder Capacity Horse Power Year
228 i 1997 CCM 245 HP 07/2014 - 06/2016
2 Convertible (F23)
Description Cylinder Capacity Horse Power Year
228 i 1997 CCM 245 HP 11/2014 - 06/2016
230 i 1998 CCM 252 HP 07/2016 - 06/2021
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
328 i 1997 CCM 245 HP 11/2011 - 10/2018
328 i xDrive 1997 CCM 245 HP 07/2012 - 08/2016
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
325 d 1995 CCM 211 HP 07/2013 - 06/2016
328 i 1997 CCM 245 HP 03/2013 - 06/2016
328 i xDrive 1997 CCM 245 HP 07/2013 - 06/2016
325 d 1995 CCM 218 HP 07/2013 - 06/2016
330 d xDrive 2993 CCM 258 HP From 03/2014
330 d 2993 CCM 258 HP From 03/2014
335 d xDrive 2993 CCM 313 HP From 03/2014
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
328 i 1997 CCM 245 HP 07/2012 - 06/2015
330 d 2993 CCM 258 HP 07/2012 - 06/2019
325 d 1995 CCM 218 HP 03/2013 - 02/2016
328 i xDrive 1997 CCM 245 HP 03/2013 - 06/2016
330 d xDrive 2993 CCM 258 HP 03/2013 - 06/2019
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
430 d 2993 CCM 258 HP 11/2013 - 06/2020
428 i 1997 CCM 245 HP 07/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 07/2013 - 02/2016
430 d xDrive 2993 CCM 258 HP 03/2014 - 06/2020
425 d 1995 CCM 218 HP 03/2014 - 02/2016
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
428 i 1997 CCM 245 HP 11/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
425 d 1995 CCM 218 HP 07/2014 - 02/2016
430 d 2993 CCM 258 HP 07/2014 - 07/2020
430 d 2993 CCM 286 HP 07/2014 - 07/2020
420 d 1995 CCM 190 HP 07/2015 - 07/2020
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
428 i 1997 CCM 245 HP 03/2014 - 06/2016
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
430 d 2993 CCM 258 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 258 HP 07/2014 - 12/2020
430 d 2993 CCM 286 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 286 HP 07/2014 - 12/2020

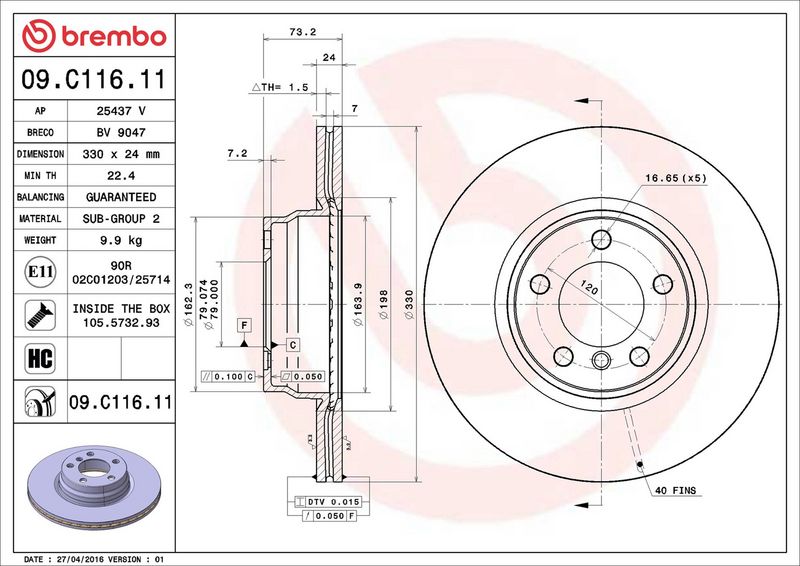

The Brembo 09.C116.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 73
Centering Diameter [mm] : 79
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.C116.11
  • Barcode 8020584218464
  • BMW : 34116792221
  • APEC : DSK3100
  • APEC : SDK6931
  • BLUE PRINT : ADB114339
  • BORG & BECK : BBD6010S
  • BOSCH : 0 986 479 A06
  • DELPHI : BG4458C
  • Fahren : FBD6931
  • FEBI BILSTEIN : 43956
  • FTE : 9071063
  • HELLA : 8DD 355 119-561
  • HELLA : 8DD 355 129-651
  • MEYLE : 383 521 0016/PD
  • MINTEX : MDC2534
  • NAPA : NBD5099
  • National : NBD1549
  • SKF : VKBD 80448 V1
  • TEXTAR : 92242005
  • TRW : DF8050
  • VALEO : 197791
  • VALEO : 673396
