BREMBO

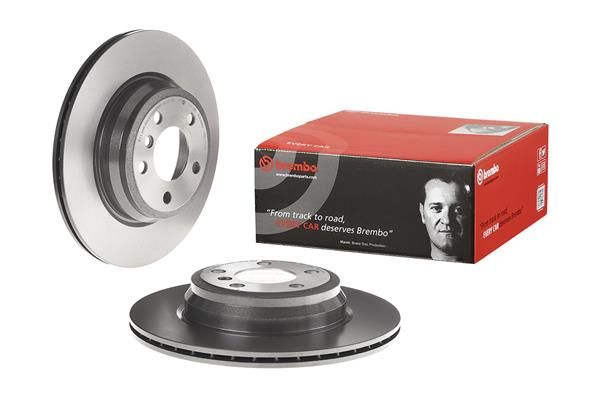

Brembo 09.C117.11 Brake Disc

SKU: 09.C117.11
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£109.82 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
335 i 2979 CCM 306 HP 11/2011 - 07/2015
335 d xDrive 2993 CCM 313 HP 07/2013 - 10/2018
335 i xDrive 2979 CCM 306 HP 07/2012 - 07/2015
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
335 i 2979 CCM 306 HP 03/2013 - 06/2016
335 i xDrive 2979 CCM 306 HP 07/2013 - 06/2016
330 d xDrive 2993 CCM 258 HP From 03/2014
330 d 2993 CCM 258 HP From 03/2014
335 d xDrive 2993 CCM 313 HP From 03/2014
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 184 HP 07/2012 - 02/2016
330 d 2993 CCM 258 HP 07/2012 - 06/2019
320 d 1995 CCM 163 HP 07/2012 - 06/2019
325 d 1995 CCM 218 HP 03/2013 - 02/2016
335 i xDrive 2979 CCM 306 HP 03/2013 - 06/2015
335 i 2979 CCM 306 HP 03/2013 - 06/2015
330 d xDrive 2993 CCM 258 HP 03/2013 - 06/2019
320 d xDrive 1995 CCM 184 HP 03/2013 - 06/2015
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
435 d xDrive 2993 CCM 313 HP 11/2013 - 06/2020
430 d 2993 CCM 258 HP 11/2013 - 06/2020
435 i 2979 CCM 306 HP 07/2013 - 02/2016
435 i xDrive 2979 CCM 306 HP 07/2013 - 02/2016
430 d xDrive 2993 CCM 258 HP 03/2014 - 06/2020
435 i 2979 CCM 340 HP 07/2013 - 02/2016
435 i xDrive 2979 CCM 340 HP 07/2013 - 02/2016
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
435 i 2979 CCM 306 HP 11/2013 - 02/2016
435 i xDrive 2979 CCM 306 HP 07/2014 - 02/2016
430 d 2993 CCM 258 HP 07/2014 - 07/2020
435 d xDrive 2993 CCM 313 HP 07/2014 - 07/2020
430 d 2993 CCM 286 HP 07/2014 - 07/2020
435 i xDrive 2979 CCM 340 HP 07/2014 - 02/2016
435 i 2979 CCM 340 HP 11/2013 - 02/2016
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
435 i 2979 CCM 306 HP 03/2014 - 02/2016
435 i xDrive 2979 CCM 306 HP 07/2014 - 02/2016
430 d 2993 CCM 258 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 258 HP 07/2014 - 12/2020
435 d xDrive 2993 CCM 313 HP 07/2014 - 12/2020
430 d 2993 CCM 286 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 286 HP 07/2014 - 12/2020
435 i 2979 CCM 340 HP 03/2014 - 02/2016

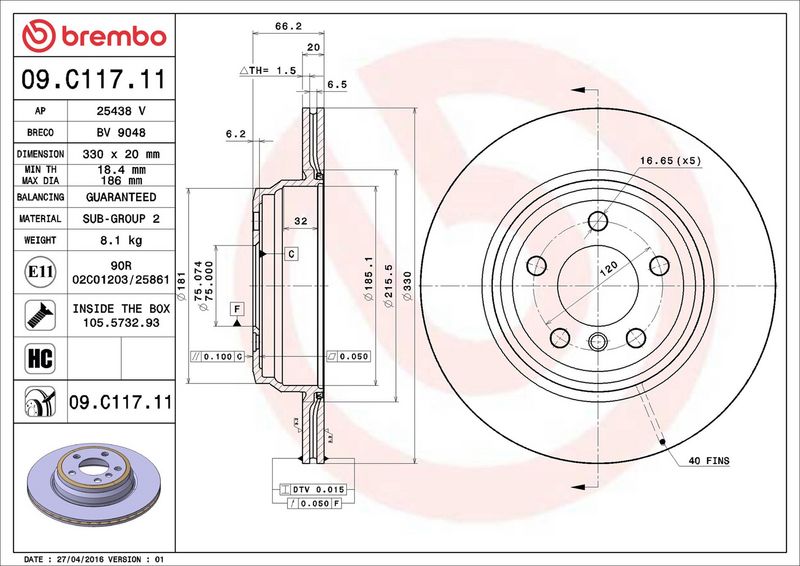

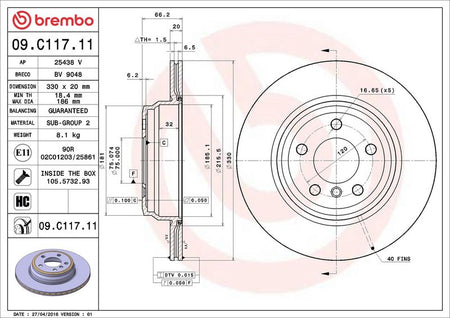

The Brembo 09.C117.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 75
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 18.4
  • Vendor BREMBO
  • SKU 09.C117.11
  • Barcode 8020584218471
  • BMW : 34216792233 34216864899
  • BMW (BRILLIANCE) : 34216792233 34216864899
  • APEC : DSK3101
  • BLUE PRINT : ADB114383
  • BORG & BECK : BBD5260
  • BOSCH : 0 986 479 622
  • DELPHI : BG4665C
  • FEBI BILSTEIN : 43907
  • FTE : 9071195
  • HELLA : 8DD 355 129-641
  • MEYLE : 315 523 0033/PD
  • MINTEX : MDC2533
  • NAPA : NBD5843
  • National : NBD2071
  • SKF : VKBD 90465 V1
  • TEXTAR : 92241903
  • TRW : DF6512S
  • VALEO : 197785
  • VALEO : 673237
