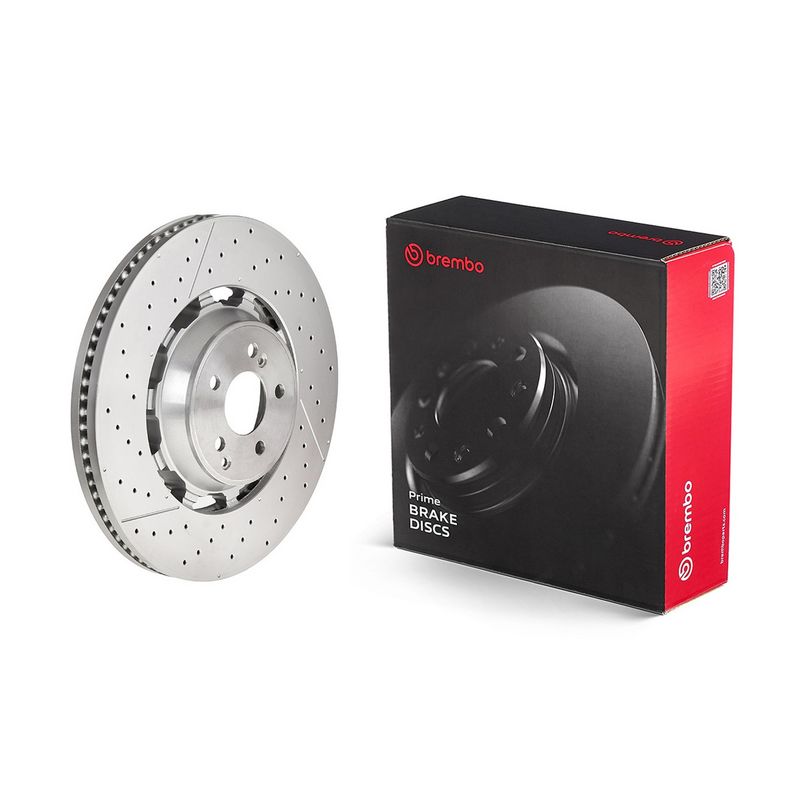

Brembo 09.C127.33 Brake Disc

SKU: 09.C127.33
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£828.67 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
S-CLASS (W222, V222, X222)
Description Cylinder Capacity Horse Power Year
S 63 AMG (222.077, 222.177) 5461 CCM 585 HP 05/2013 - 05/2017
S 63 AMG 4-matic (222.178) 5461 CCM 585 HP 05/2013 - 05/2017
S 65 AMG (222.179) 5980 CCM 630 HP 02/2014 - 11/2019
S-CLASS Coupe (C217)
Description Cylinder Capacity Horse Power Year
S 63 AMG 4-matic (217.378) 5461 CCM 585 HP 04/2014 - 10/2017
S 63 AMG (217.377) 5461 CCM 585 HP 07/2014 - 10/2017
S 65 AMG (217.379) 5980 CCM 630 HP 07/2014 - 05/2019
S 63 AMG 4-matic+ (217.388) 3982 CCM 612 HP 10/2017 - 07/2020
S 63 AMG (217.387) 3982 CCM 612 HP 12/2018 - 07/2020
S-CLASS Convertible (A217)
Description Cylinder Capacity Horse Power Year
AMG S 63 4-matic (217.478) 5461 CCM 585 HP 12/2015 - 10/2017
AMG S 65 (217.479) 5980 CCM 630 HP 04/2016 - 05/2019
AMG S 63 (217.477) 5461 CCM 585 HP 02/2016 - 10/2017
S 650 Maybach (217.479) 5980 CCM 630 HP 08/2017 - 05/2019
AMG S 63 4-matic+ (217.488) 3982 CCM 612 HP 10/2017 - 07/2020
AMG S 63 (217.487) 3982 CCM 612 HP 12/2018 - 07/2020

The Brembo 09.C127.33 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, slotted/perforated, and two-piece brake disc disc construction, 36 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

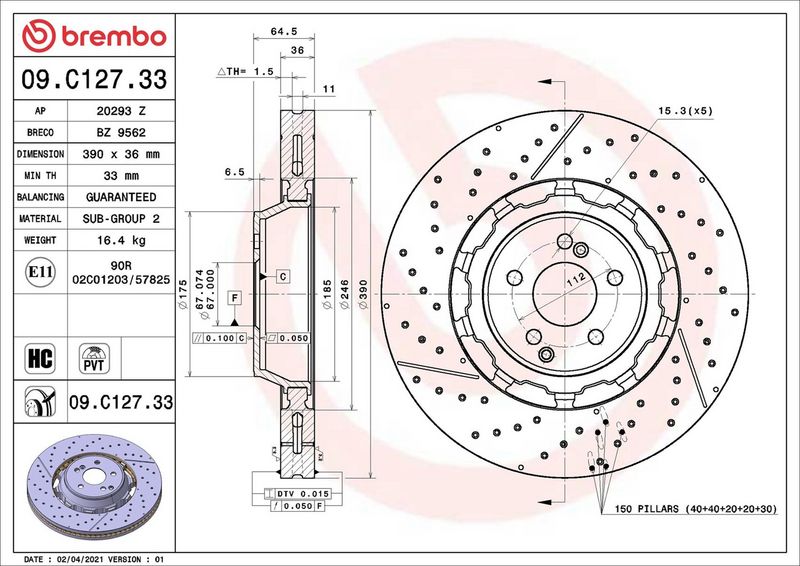

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : slotted/perforated
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 36
Number of Holes : 5
Height [mm] : 64.5
Centering Diameter [mm] : 67
Outer Diameter [mm] : 390
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 33
  • Vendor BREMBO
  • SKU 09.C127.33
  • Barcode 8020584316351
  • MERCEDES-BENZ : 2224212612 A2224212612
