Brembo 09.C136.11 Brake Disc - 1
Brembo 09.C136.11 Brake Disc - 2
Brembo 09.C136.11 Brake Disc - 1
Brembo 09.C136.11 Brake Disc - 2
BREMBO

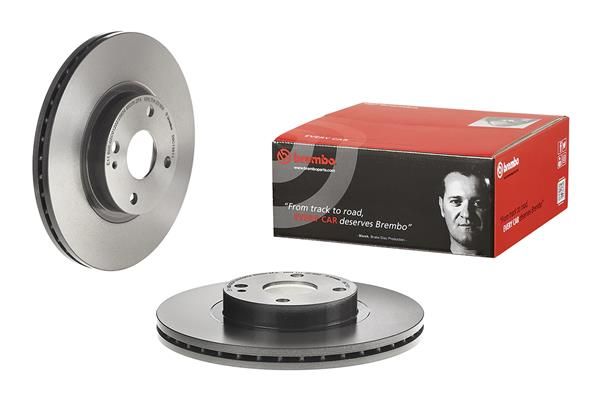

Brembo 09.C136.11 Brake Disc

SKU: 09.C136.11
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£70.92 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
MX-5 Mk II (NB)
Description Cylinder Capacity Horse Power Year
1.6 16V (NB6C) 1597 CCM 110 HP 05/1998 - 10/2005
1.8 16V (NB8C) 1840 CCM 140 HP 05/1998 - 10/2005
1.8 16V (NB8C) 1840 CCM 146 HP 11/2000 - 10/2005
1.8 16V (NB8C) 1840 CCM 139 HP 11/2000 - 10/2005
1.8 (NB8C) 1839 CCM 140 HP 01/1998 - 07/2002
1.8 (NB8C) 1839 CCM 146 HP 08/2002 - 10/2005

The Brembo 09.C136.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

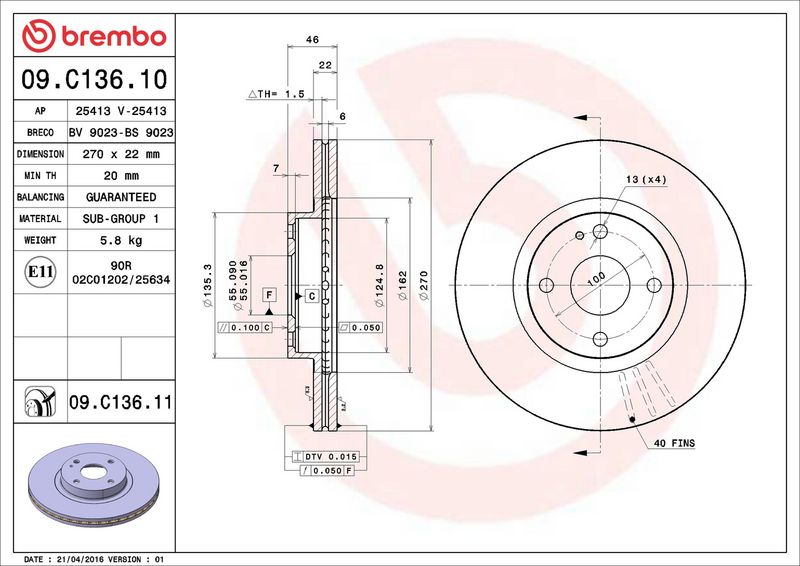

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Height [mm] : 46
Centering Diameter [mm] : 55
Outer Diameter [mm] : 270
Surface : Coated
Minimum thickness [mm] : 20
  • Vendor BREMBO
  • SKU 09.C136.11
  • Barcode 8020584217863
  • MAZDA : N06Y3325X N0YY3325X
  • BLUE PRINT : ADM54386
  • BORG & BECK : BBD4649
  • BOSCH : 0 986 479 472
  • DELPHI : BG3966
  • FEBI BILSTEIN : 108544
  • HELLA : 8DD 355 115-361
  • MINTEX : MDC1895
  • SKF : VKBD 80530 V2
  • TEXTAR : 92175903
  • TRW : DF4405
  • VALEO : 197627
  • VALEO : 673585
