Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

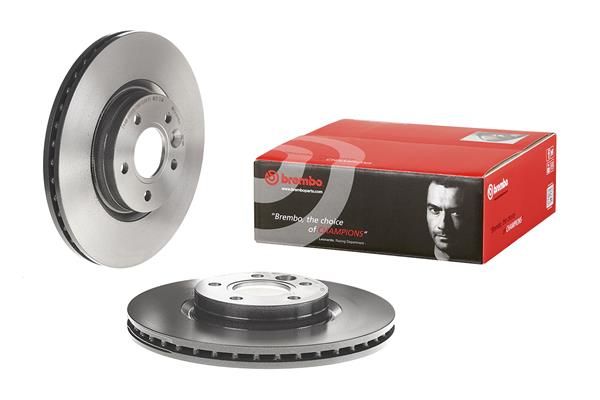

Brembo 09.C138.11 Brake Disc - 1

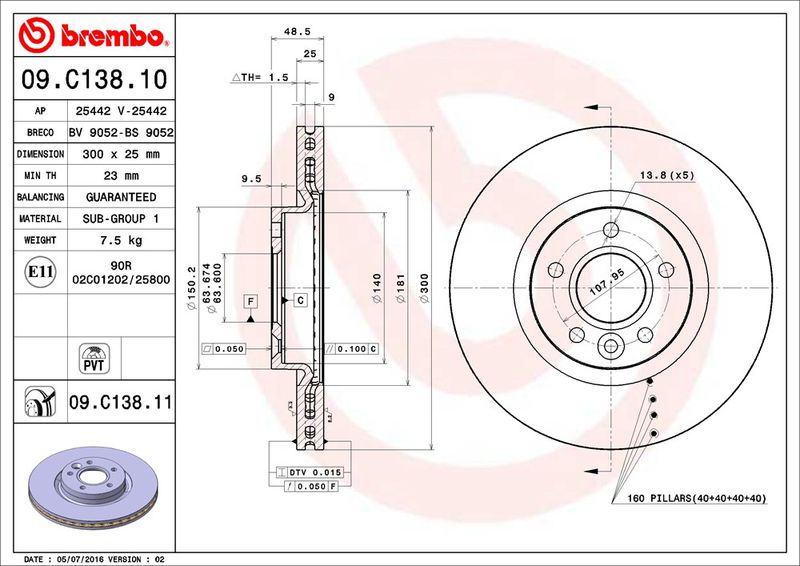

Brembo 09.C138.11 Brake Disc - 2
Brembo 09.C138.11 Brake Disc - 1
Brembo 09.C138.11 Brake Disc - 2
BREMBO

Brembo 09.C138.11 Brake Disc

SKU: 09.C138.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£86.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
D2 1560 CCM 115 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
1.6 1596 CCM 100 HP 10/2006 - 12/2012
1.8 1798 CCM 125 HP 10/2006 - 12/2012
2.0 1999 CCM 145 HP 10/2006 - 12/2012
2.4 i 2435 CCM 170 HP 10/2006 - 12/2012
T5 2521 CCM 220 HP 10/2006 - 12/2012
1.6 D 1560 CCM 109 HP 10/2006 - 12/2012
2.0 D 1998 CCM 136 HP 10/2006 - 12/2012
D5 2400 CCM 180 HP 10/2006 - 12/2012
T5 2521 CCM 230 HP 03/2007 - 12/2012
1.8 FlexFuel 1798 CCM 125 HP 01/2007 - 12/2012
D5 2400 CCM 163 HP 10/2006 - 12/2012
2.0 FlexFuel 1999 CCM 146 HP 01/2010 - 12/2012
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 06/2013
D4 1984 CCM 177 HP 10/2010 - 06/2013
2.4 2435 CCM 140 HP 03/2006 - 10/2009
2.4 i 2435 CCM 170 HP 03/2006 - 10/2009
T5 2521 CCM 220 HP 03/2006 - 02/2007
D5 2400 CCM 180 HP 03/2006 - 06/2013
T5 2521 CCM 230 HP 03/2007 - 06/2013
2.0 D 1998 CCM 136 HP 01/2008 - 10/2009
2.4 D 2400 CCM 163 HP 03/2007 - 06/2013
S40 II (544)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
D2 1560 CCM 115 HP 10/2010 - 12/2012
2.0 F 1999 CCM 146 HP 10/2009 - 12/2012
2.4 2435 CCM 140 HP 01/2004 - 12/2010
2.4 2435 CCM 170 HP 01/2004 - 12/2012
T5 2521 CCM 220 HP 01/2004 - 12/2007
2.0 D 1998 CCM 136 HP 01/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
1.6 D 1560 CCM 110 HP 01/2005 - 12/2012
2.0 1999 CCM 146 HP 10/2006 - 12/2012
D5 2400 CCM 179 HP 03/2006 - 12/2010
T5 2521 CCM 230 HP 03/2007 - 12/2012
V40 Hatchback (525)
Description Cylinder Capacity Horse Power Year
T4 1984 CCM 180 HP 07/2013 - 12/2015
T3 GTDi 1596 CCM 150 HP 03/2012 - 12/2016
T4 GTDi 1596 CCM 180 HP 03/2012 - 12/2016
D2 1560 CCM 114 HP 03/2012 - 12/2016
D3 1984 CCM 150 HP 03/2012 - 03/2015
D4 1984 CCM 177 HP 03/2012 - 12/2014
T5 2497 CCM 254 HP 12/2012 - 12/2014
T5 1984 CCM 214 HP 03/2013 - 12/2015
T2 GTDi 1596 CCM 120 HP 04/2013 - 12/2016
D4 1969 CCM 190 HP 05/2014 - 08/2019
T5 1969 CCM 245 HP 05/2014 - 08/2019
T4 1596 CCM 200 HP 04/2014 - 12/2015
T2 1969 CCM 122 HP 02/2015 - 08/2019
T3 1969 CCM 152 HP 02/2015 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
V40 Cross Country (526)
Description Cylinder Capacity Horse Power Year
T4 AWD 1984 CCM 180 HP 07/2013 - 12/2015
T5 AWD 1984 CCM 214 HP 03/2013 - 12/2015
T5 AWD 2497 CCM 254 HP 10/2012 - 12/2016
T5 AWD 1969 CCM 245 HP 05/2014 - 08/2019
T4 AWD 1969 CCM 190 HP 05/2014 - 08/2019
T5 Polestar AWD 1969 CCM 253 HP 01/2015 - 08/2019
D4 1969 CCM 190 HP 05/2014 - 08/2019
T3 1969 CCM 152 HP 02/2015 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
T3 1498 CCM 152 HP 04/2015 - 08/2019
D3 1969 CCM 150 HP 04/2015 - 08/2019
T4 1984 CCM 180 HP 10/2013 - 12/2015
T4 GTDi 1596 CCM 180 HP 10/2012 - 12/2016
D2 1560 CCM 114 HP 10/2012 - 12/2016
D3 1984 CCM 150 HP 10/2012 - 03/2015
V50 (545)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
2.4 2435 CCM 140 HP 04/2004 - 12/2010
2.4 2435 CCM 170 HP 04/2004 - 12/2010
T5 2521 CCM 220 HP 04/2004 - 12/2007
2.0 D 1998 CCM 136 HP 04/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
1.6 D 1560 CCM 110 HP 01/2005 - 12/2011
2.0 1999 CCM 146 HP 10/2006 - 12/2012
D5 2400 CCM 179 HP 04/2006 - 02/2008
T5 2521 CCM 230 HP 03/2007 - 12/2012
T5 AWD 2521 CCM 230 HP 03/2007 - 12/2010
1.8 FlexFuel 1798 CCM 125 HP 01/2005 - 12/2010

The Brembo 09.C138.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 64
Outer Diameter [mm] : 300
Surface : Coated
Minimum thickness [mm] : 23
  • Vendor BREMBO
  • SKU 09.C138.11
  • Barcode 8020584217900
  • VOLVO : 31262719 31341643 31362412 31381375 31400817 31400937 31400941 31471749 31471819 31471834
  • VOLVO (CHANGAN) : 31400941
  • BLUE PRINT : ADF124304
  • BORG & BECK : BBD4452
  • BORG & BECK : BBD5305
  • BOSCH : 0 986 479 701
  • BOSCH : 0 986 479 956
  • BOSCH : 0 986 479 C52
  • DELPHI : BG3895C
  • DELPHI : BG4676C
  • FEBI BILSTEIN : 24566
  • HELLA : 8DD 355 112-191
  • MEYLE : 515 521 5027
  • MEYLE : 583 521 5027/PD
  • MINTEX : MDC1641C
  • MINTEX : MDC2530
  • SKF : VKBD 80053 V2
  • TEXTAR : 92141300
  • TEXTAR : 92141305
  • TEXTAR : 92255703
  • VALEO : 186863
  • VALEO : 672551
