Brembo 09.C173.11 Brake Disc

SKU: 09.C173.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£92.06 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

KIA
RIO III Saloon (UB)
Description Cylinder Capacity Horse Power Year
1.25 CVVT 1248 CCM 88 HP 06/2011 - 12/2017
1.4 CVVT 1396 CCM 107 HP 06/2011 - 12/2017
1.25 CVVT 1248 CCM 86 HP 10/2011 - 12/2017
1.4 CVVT 1396 CCM 109 HP 10/2011 - 12/2017
1.2 CVVT 1248 CCM 87 HP 11/2014 - 12/2017
RIO III (UB)
Description Cylinder Capacity Horse Power Year
1.25 CVVT 1248 CCM 86 HP 09/2011 - 12/2017
1.4 CVVT 1396 CCM 109 HP 09/2011 - 12/2017
1.1 CRDi 1120 CCM 75 HP 09/2011 - 12/2017
1.4 CRDi 1396 CCM 90 HP 09/2011 - 12/2017
1.25 LPG 1248 CCM 86 HP 09/2011 - 12/2017
1.4 CVVT 1396 CCM 107 HP 09/2011 - 12/2017
1.2 CVVT 1248 CCM 84 HP 09/2011 - 12/2017
1.2 1248 CCM 69 HP 09/2011 - 12/2017

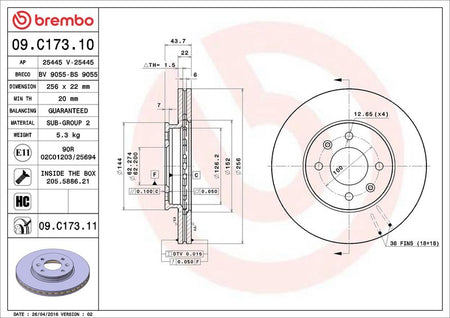

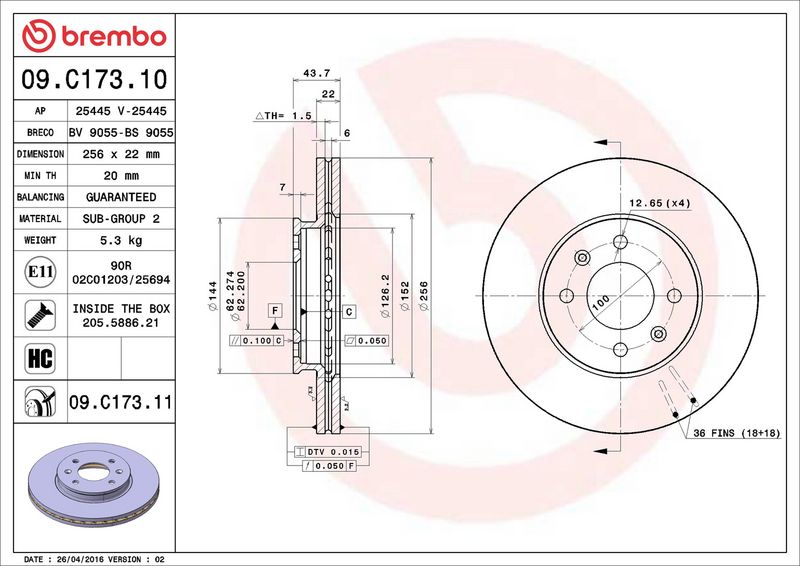

The Brembo 09.C173.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 44
Centering Diameter [mm] : 62
Outer Diameter [mm] : 256
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20
  • Vendor BREMBO
  • SKU 09.C173.11
  • Barcode 8020584221006
  • KIA : 517121W200
  • BLUE PRINT : ADG043177
  • BLUE PRINT : ADG043178
  • BOSCH : 0 986 479 W05
  • DELPHI : BG4744C
  • FEBI BILSTEIN : 108447
  • FEBI BILSTEIN : 108539
  • FTE : 9072056
  • HELLA : 8DD 355 117-981
  • MEYLE : 37-15 521 0037/PD
  • MINTEX : MDC2344
  • SKF : VKBD 80472 V2
  • TEXTAR : 92237903
  • VALEO : 672773
