BREMBO

Brembo 09.C174.11 Brake Disc

SKU: 09.C174.11

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£93.23 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI

i20 II (GB, IB)

Description	Cylinder Capacity	Horse Power	Year
1.2	1248 CCM	75 HP	11/2014 - 03/2020
1.2	1248 CCM	84 HP	11/2014 - 08/2020
1.4	1368 CCM	100 HP	11/2014 - 06/2018
1.1 CRDi	1120 CCM	75 HP	11/2014 - 06/2018
1.4 CRDi	1396 CCM	90 HP	11/2014 - 06/2018
1.0 T-GDI	998 CCM	120 HP	01/2016 - 08/2020
1.0 T-GDI	998 CCM	101 HP	01/2016 - 08/2020

i20 II Coupe (GB)

Description	Cylinder Capacity	Horse Power	Year
1.4	1368 CCM	100 HP	05/2015 - 09/2021
1.4 CRDi	1396 CCM	90 HP	05/2015 - 09/2021
1.0 T-GDI	998 CCM	101 HP	01/2016 - 09/2021
1.0 T-GDI	998 CCM	120 HP	01/2016 - 09/2021
1.2	1248 CCM	84 HP	05/2015 - 09/2021
1.1 CRDi	1120 CCM	75 HP	05/2015 - 09/2021

i20 ACTIVE (IB, GB)

Description	Cylinder Capacity	Horse Power	Year
1.0 T-GDI	998 CCM	101 HP	09/2015 - 06/2018
1.0 T-GDI	998 CCM	120 HP	09/2015 - 06/2018
1.4 CRDI	1396 CCM	90 HP	09/2015 - 06/2018
1.4 CVVT	1368 CCM	101 HP	09/2015 - 06/2018

KIA

RIO III Saloon (UB)

Description	Cylinder Capacity	Horse Power	Year
1.6 CVVT	1591 CCM	123 HP	06/2012 - 12/2017
1.25 CVVT	1248 CCM	88 HP	06/2011 - 12/2017
1.4 CVVT	1396 CCM	107 HP	06/2011 - 12/2017
1.25 CVVT	1248 CCM	86 HP	10/2011 - 12/2017
1.4 CVVT	1396 CCM	109 HP	10/2011 - 12/2017
1.2 CVVT	1248 CCM	87 HP	11/2014 - 12/2017

RIO III (UB)

Description	Cylinder Capacity	Horse Power	Year
1.25 CVVT	1248 CCM	86 HP	09/2011 - 12/2017
1.4 CVVT	1396 CCM	109 HP	09/2011 - 12/2017
1.1 CRDi	1120 CCM	75 HP	09/2011 - 12/2017
1.4 CRDi	1396 CCM	90 HP	09/2011 - 12/2017
1.6 CVVT	1591 CCM	123 HP	06/2012 - 12/2017
1.25 LPG	1248 CCM	86 HP	09/2011 - 12/2017
1.4 CVVT	1396 CCM	107 HP	09/2011 - 12/2017
1.2 CVVT	1248 CCM	84 HP	09/2011 - 12/2017
1.2	1248 CCM	69 HP	09/2011 - 12/2017

RIO IV (YB, SC, FB)

Description	Cylinder Capacity	Horse Power	Year
1.25	1248 CCM	84 HP	From 01/2017
1.4	1368 CCM	99 HP	From 01/2017
1.0 T-GDI 100	998 CCM	101 HP	From 01/2017
1.0 T-GDI 120	998 CCM	120 HP	From 01/2017
1.4 CRDi 77	1396 CCM	78 HP	From 01/2017
1.4 CRDi 90	1396 CCM	90 HP	From 01/2017
1.4	1368 CCM	101 HP	From 01/2017
1.25 LPG	1248 CCM	82 HP	From 05/2019
1.0 T-GDI 120 Eco-Dynamics+	998 CCM	120 HP	08/2020 - 04/2023

RIO IV Saloon (SC, FB)

Description	Cylinder Capacity	Horse Power	Year
1.4	1368 CCM	100 HP	From 07/2017

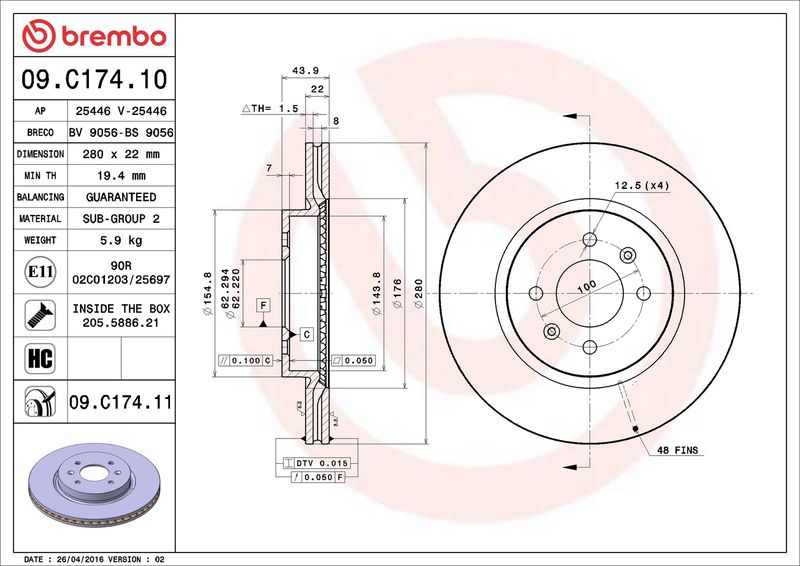

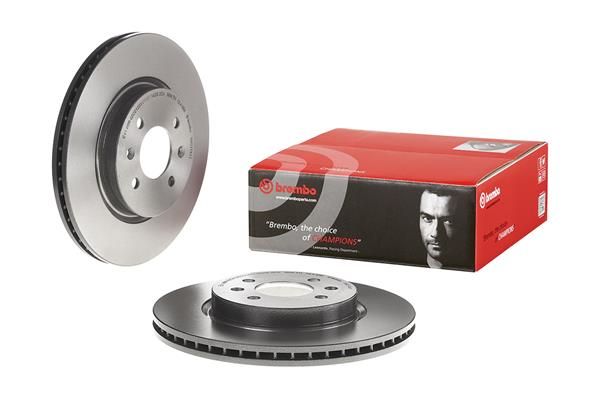

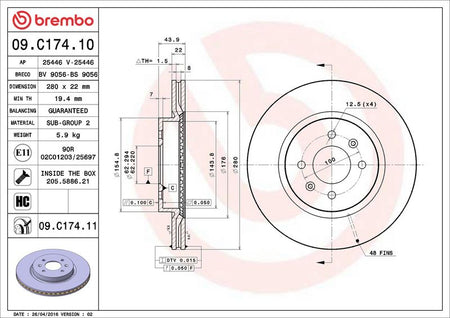

The Brembo 09.C174.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 22

Number of Holes : 4

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 44

Centering Diameter [mm] : 62

Outer Diameter [mm] : 280

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 19.4

BLUE PRINT : ADG043201
BORG & BECK : BBD5243
BOSCH : 0 986 479 B05
BOSCH : 0 986 479 E98
DELPHI : BG4743C
FEBI BILSTEIN : 108438
FTE : 9082458
HELLA : 8DD 355 118-251
HELLA : 8DD 355 125-501
MEYLE : 28-15 521 0023/PD
MINTEX : MDC2362
MINTEX : MDC2847C
SKF : VKBD 81119 V2
TEXTAR : 92239303
TEXTAR : 92288303
TRW : DF6842
TRW : DF6904
VALEO : 672775
