Brembo 09.C219.41 Brake Disc - 1
Brembo 09.C219.41 Brake Disc - 2
Brembo 09.C219.41 Brake Disc - 1
Brembo 09.C219.41 Brake Disc - 2
BREMBO

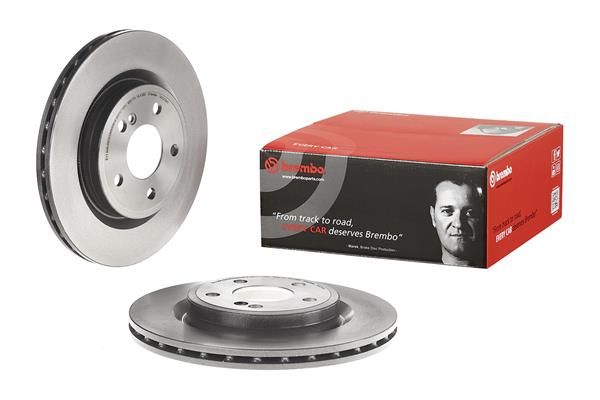

Brembo 09.C219.41 Brake Disc

SKU: 09.C219.41
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£81.75 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 250 4-matic (176.046) 1991 CCM 211 HP 06/2013 - 05/2018
A 220 4-matic (176.047) 1991 CCM 184 HP 05/2014 - 05/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 250 4-matic (117.346) 1991 CCM 211 HP 07/2013 - 03/2019
CLA 200 CDI / d 4-matic (117.302) 2143 CCM 136 HP 07/2014 - 03/2019
CLA 220 CDI 4-matic (117.305) 2143 CCM 170 HP 07/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 163 HP 08/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 177 HP 09/2014 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 250 4-matic (117.946) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 200 CDI / d 4-matic (117.902) 2143 CCM 136 HP 01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 163 HP 01/2015 - 03/2019
CLA 250 4-matic (117.951) 1991 CCM 218 HP 07/2015 - 03/2019
CLA 220 4-matic (117.947) 1991 CCM 184 HP 04/2016 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 250 4-matic (156.946) 1991 CCM 211 HP 12/2013 - 12/2019

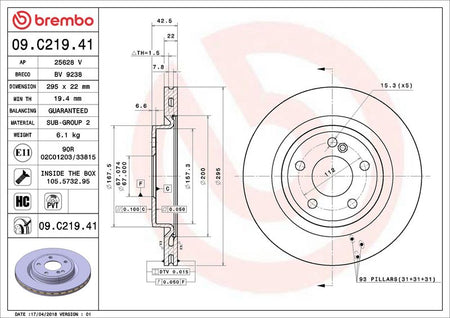

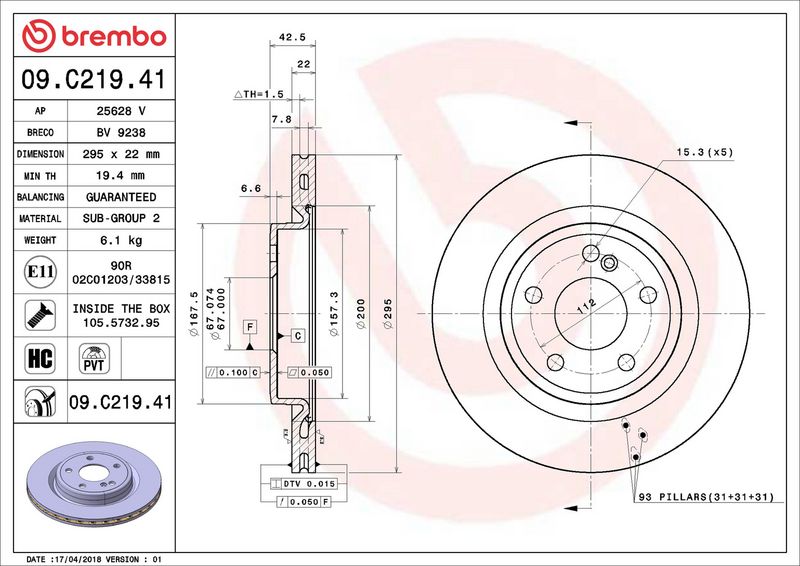

The Brembo 09.C219.41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 43
Centering Diameter [mm] : 67
Outer Diameter [mm] : 295
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 19.4
  • Vendor BREMBO
  • SKU 09.C219.41
  • Barcode 8020584228029
  • MERCEDES-BENZ : 2464230812 246423081207 A2464230812
  • MERCEDES-BENZ (BBDC) : A2464230812
  • APEC : DSK3364
  • BLUE PRINT : ADN143186
  • BORG & BECK : BBD5459
  • BOSCH : 0 986 479 F75
  • DELPHI : BG4927C
  • FTE : 9082671
  • HELLA : 8DD 355 125-381
  • MEYLE : 015 523 0045/PD
  • MINTEX : MDC2772
  • National : NBD2190
  • TEXTAR : 92286903
  • TRW : DF6887
  • VALEO : 673705
