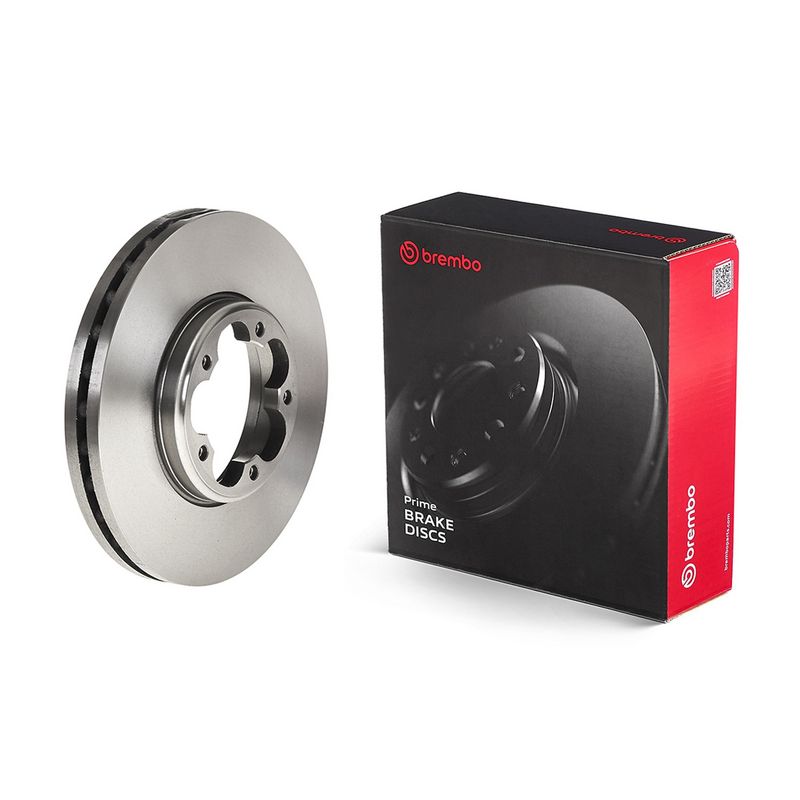

Brembo 09.C240.20 Brake Disc - 1

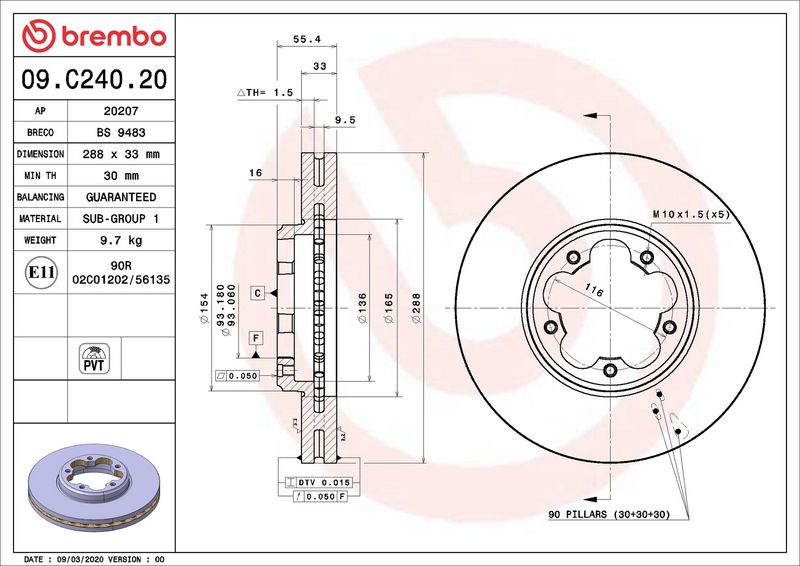

Brembo 09.C240.20 Brake Disc - 2
Brembo 09.C240.20 Brake Disc - 1
Brembo 09.C240.20 Brake Disc - 2
BREMBO

Brembo 09.C240.20 Brake Disc

SKU: 09.C240.20
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£56.91 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
2.0 EcoBlue 1995 CCM 150 HP 01/2022 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 150 HP 01/2022 - 12/2023
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue mHEV 1995 CCM 130 HP From 05/2019
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024

The Brembo 09.C240.20 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 33 mm brake disc thickness, 5 mounting holes, and 93 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 33
Number of Holes : 5
Height [mm] : 55
Centering Diameter [mm] : 93
Outer Diameter [mm] : 288
Minimum thickness [mm] : 30
  • Vendor BREMBO
  • SKU 09.C240.20
  • Barcode 8020584315286
  • FORD : 2168838 2221678 BK211125GA BK211125HA
  • APEC : DSK3752
  • BLUE PRINT : ADBP430075
  • BORG & BECK : BBD6269S
  • DELPHI : BG9391C
  • FEBI BILSTEIN : 174457
  • FTE : 9082846
  • HELLA : 8DD 355 120-111
  • HELLA : 8DD 355 133-161
  • MINTEX : MDC2551
  • MINTEX : MDC2959C
  • National : NBD2060
  • SKF : VKBD 81389 V1
  • TEXTAR : 92320303
  • TEXTAR : 93260603
