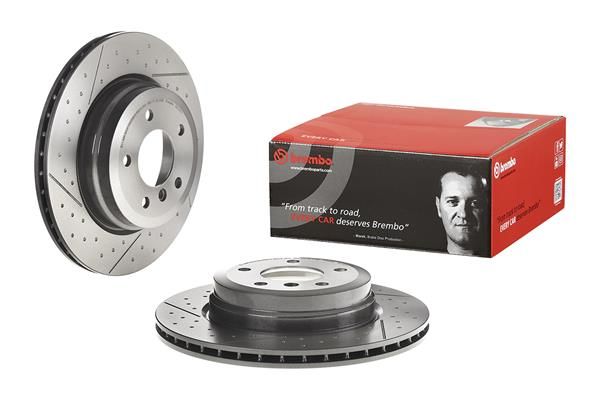

Brembo 09.C246.11 Brake Disc - 1

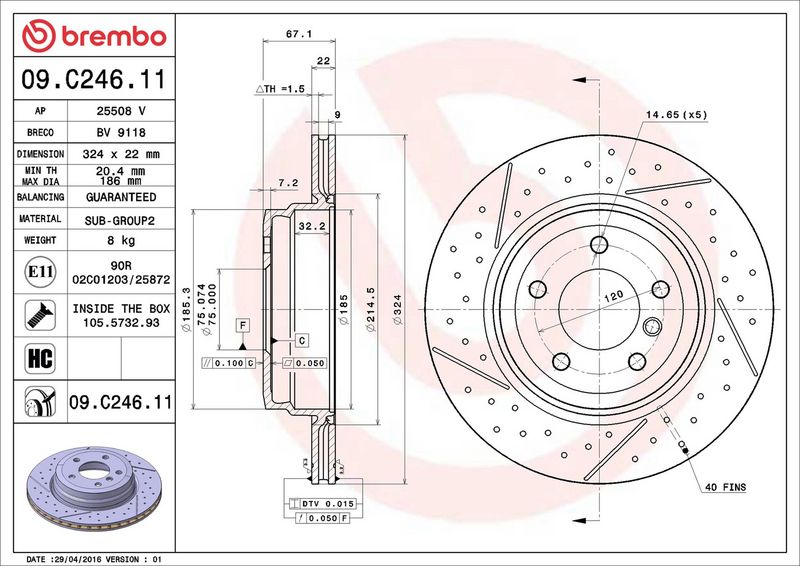

Brembo 09.C246.11 Brake Disc - 2
Brembo 09.C246.11 Brake Disc - 1
Brembo 09.C246.11 Brake Disc - 2
BREMBO

Brembo 09.C246.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.C246.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£101.40 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
130 i 2996 CCM 258 HP 03/2007 - 06/2011
130 i 2996 CCM 265 HP 09/2005 - 02/2007
1 (E81)
Description Cylinder Capacity Horse Power Year
130 i 2996 CCM 265 HP 09/2006 - 12/2011
123 d 1995 CCM 204 HP 03/2007 - 12/2011
130 i 2996 CCM 258 HP 09/2006 - 12/2011
1 Coupe (E82)
Description Cylinder Capacity Horse Power Year
123 d 1995 CCM 204 HP 10/2007 - 09/2013
3 (E90)
Description Cylinder Capacity Horse Power Year
330 i 2996 CCM 258 HP 12/2004 - 10/2011
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
325 i 2996 CCM 211 HP 09/2007 - 06/2012
318 d 1995 CCM 136 HP 07/2007 - 06/2012
318 i 1995 CCM 136 HP 09/2007 - 03/2012
320 i 1995 CCM 150 HP 09/2005 - 06/2012
325 i 2497 CCM 218 HP 12/2004 - 08/2008
330 i 2996 CCM 258 HP 08/2005 - 08/2007
320 d 1995 CCM 163 HP 06/2005 - 06/2012
318 d 1995 CCM 122 HP 09/2005 - 08/2007
318 i 1995 CCM 129 HP 01/2006 - 08/2007
3 Coupe (E92)
Description Cylinder Capacity Horse Power Year
330 i 2996 CCM 272 HP 09/2006 - 02/2010
330 i 2996 CCM 258 HP 03/2010 - 06/2013
325 d 2993 CCM 197 HP 02/2007 - 02/2010
3 Convertible (E93)
Description Cylinder Capacity Horse Power Year
325 d 2993 CCM 204 HP 09/2009 - 09/2013
320 i 1995 CCM 170 HP 03/2007 - 10/2013
325 i 2996 CCM 218 HP 03/2007 - 12/2013
330 i 2996 CCM 272 HP 03/2007 - 10/2013
330 d 2993 CCM 231 HP 03/2007 - 12/2013
325 i 2497 CCM 218 HP 12/2006 - 02/2010
325 d 2993 CCM 197 HP 03/2007 - 12/2010
320 d 1995 CCM 177 HP 03/2008 - 02/2010
330 i 2996 CCM 258 HP 03/2010 - 10/2013
330 d 2993 CCM 245 HP 01/2009 - 09/2013
320 d 1995 CCM 184 HP 03/2010 - 10/2013
325 i 2996 CCM 211 HP 10/2006 - 12/2013

The Brembo 09.C246.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented and slotted/perforated disc construction, 22 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : slotted/perforated
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 67
Centering Diameter [mm] : 75
Outer Diameter [mm] : 324
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20.4
  • Vendor BREMBO
  • SKU 09.C246.11
  • Barcode 8020584222522
  • BMW : 34216787931 34216795755
  • BLUE PRINT : ADB114396
  • BORG & BECK : BBD5266
  • BOSCH : 0 986 479 A78
  • DELPHI : BG4714C
  • FEBI BILSTEIN : 43800
  • FTE : 9071316
  • HELLA : 8DD 355 123-031
  • MINTEX : MDC2716
  • TEXTAR : 92231203
