Brembo 09.C314.11 Brake Disc - 1
Brembo 09.C314.11 Brake Disc - 2
Brembo 09.C314.11 Brake Disc - 1
Brembo 09.C314.11 Brake Disc - 2
BREMBO

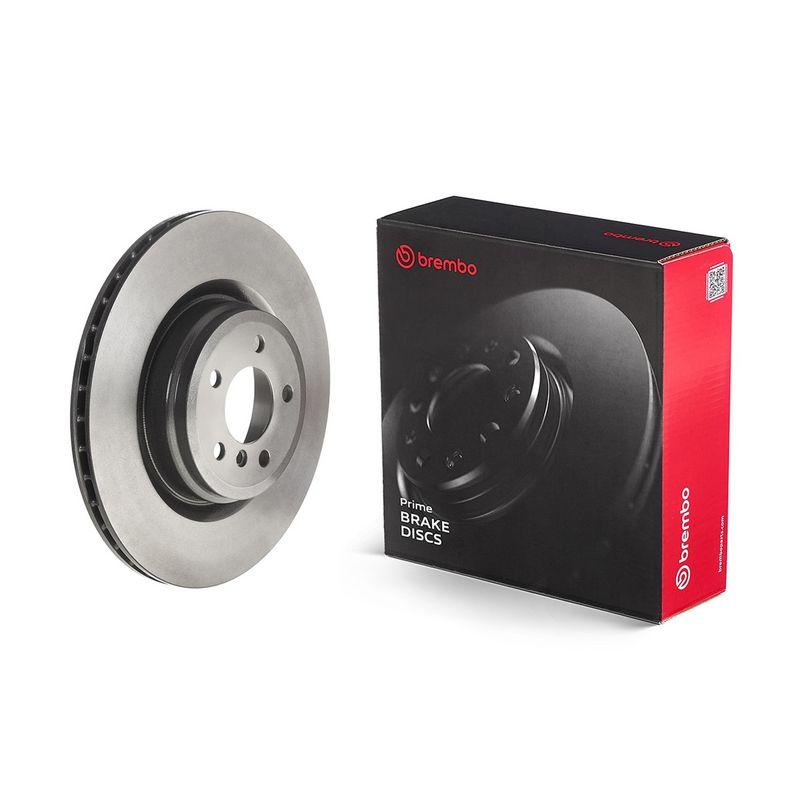

Brembo 09.C314.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.C314.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£85.55 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
5 Gran Turismo (F07)
Description Cylinder Capacity Horse Power Year
550 i 4395 CCM 408 HP 08/2009 - 06/2012
550 i xDrive 4395 CCM 408 HP 06/2010 - 06/2012
550 i 4395 CCM 449 HP 07/2012 - 02/2017
550 i xDrive 4395 CCM 449 HP 07/2012 - 02/2017
7 (F01, F02, F03, F04)
Description Cylinder Capacity Horse Power Year
ActiveHybrid 7 4395 CCM 465 HP 04/2010 - 06/2012
750 i, Li 4395 CCM 408 HP 09/2008 - 06/2012
750 i, Li xDrive 4395 CCM 408 HP 09/2009 - 06/2012
760 i, Li 5972 CCM 544 HP 09/2009 - 12/2015

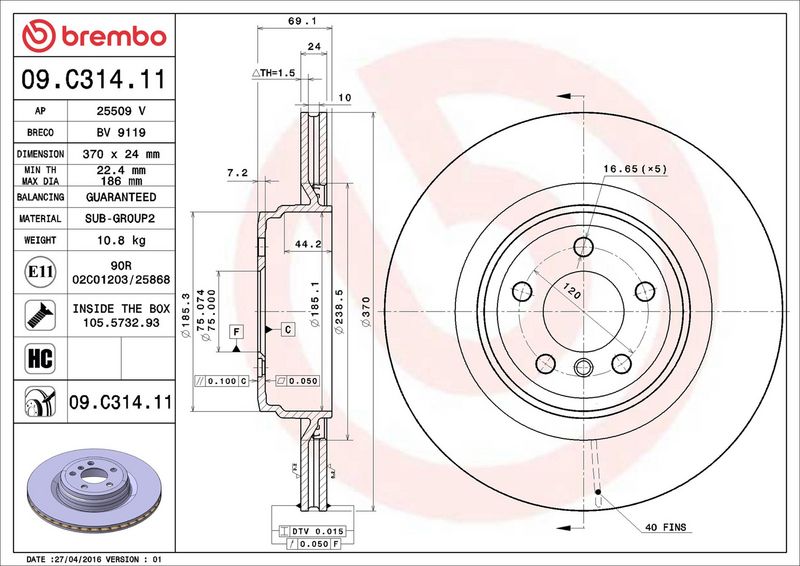

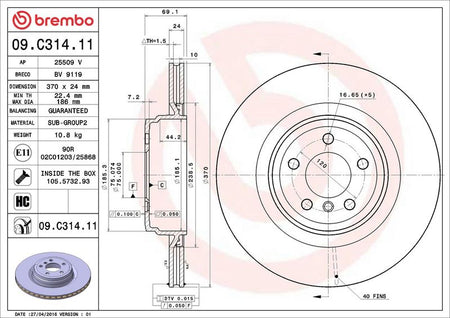

The Brembo 09.C314.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 69
Centering Diameter [mm] : 75
Outer Diameter [mm] : 370
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.C314.11
  • Barcode 8020584224281
  • BMW : 34216775291
  • APEC : DSK3103
  • BLUE PRINT : ADB1143107
  • BORG & BECK : BBD6089S
  • BOSCH : 0 986 479 730
  • DELPHI : BG9078C
  • FEBI BILSTEIN : 44028
  • HELLA : 8DD 355 125-091
  • MEYLE : 315 523 0057/PD
  • MINTEX : MDC2733
  • TEXTAR : 92270003
  • TRW : DF6311S
