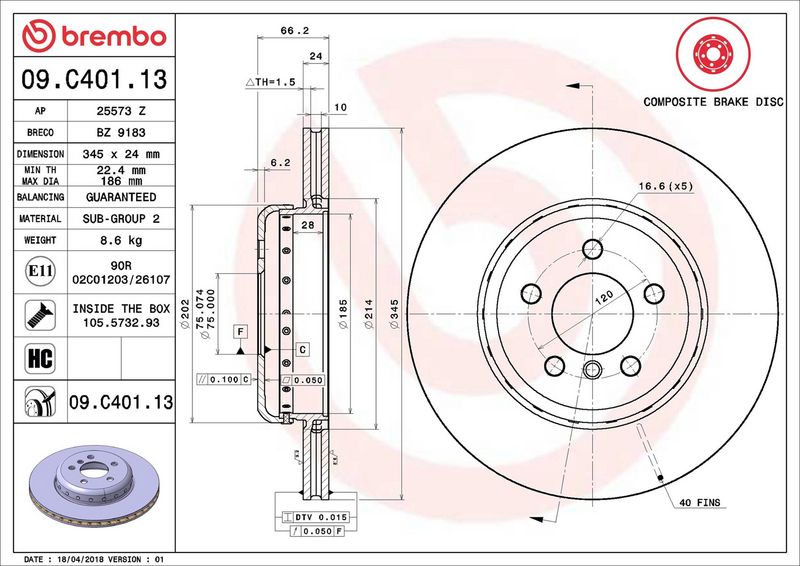

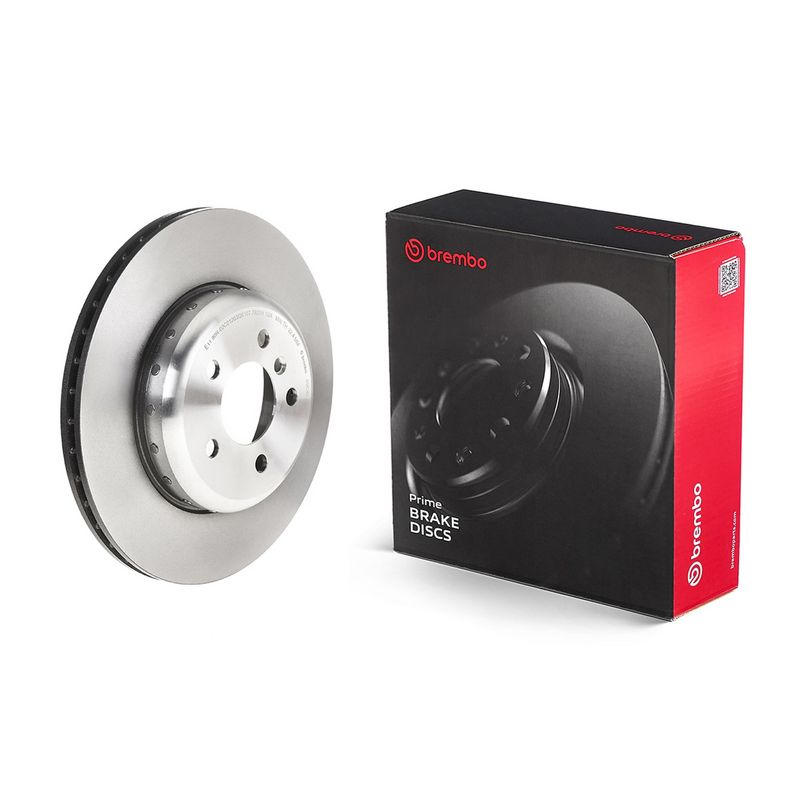

Brembo 09.C401.13 Brake Disc - 1

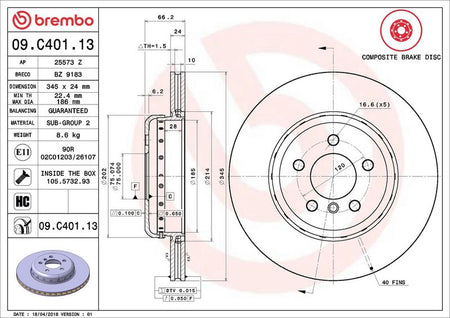

Brembo 09.C401.13 Brake Disc - 2
Brembo 09.C401.13 Brake Disc - 1
Brembo 09.C401.13 Brake Disc - 2
BREMBO

Brembo 09.C401.13 Brake Disc

SKU: 09.C401.13
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£116.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
328 i 1997 CCM 245 HP 11/2011 - 10/2018
335 i 2979 CCM 306 HP 11/2011 - 07/2015
320 d 1995 CCM 163 HP 11/2011 - 10/2018
316 d 1995 CCM 116 HP 03/2012 - 10/2018
335 d xDrive 2993 CCM 313 HP 07/2013 - 10/2018
318 d 1995 CCM 136 HP 03/2012 - 10/2018
320 d xDrive 1995 CCM 163 HP 08/2012 - 10/2018
320 i xDrive 1997 CCM 184 HP 07/2012 - 10/2018
320 d xDrive 1995 CCM 184 HP 08/2012 - 06/2015
328 i xDrive 1997 CCM 245 HP 07/2012 - 08/2016
335 i xDrive 2979 CCM 306 HP 07/2012 - 07/2015
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
325 d 1995 CCM 211 HP 07/2013 - 06/2016
320 d 1995 CCM 163 HP 03/2013 - 03/2018
320 i 1997 CCM 184 HP 03/2013 - 06/2016
328 i 1997 CCM 245 HP 03/2013 - 06/2016
335 i 2979 CCM 306 HP 03/2013 - 06/2016
318 d 1995 CCM 143 HP 03/2013 - 06/2015
320 d 1995 CCM 184 HP 03/2013 - 06/2015
320 i xDrive 1997 CCM 184 HP 11/2012 - 06/2016
328 i xDrive 1997 CCM 245 HP 07/2013 - 06/2016
335 i xDrive 2979 CCM 306 HP 07/2013 - 06/2016
320 d xDrive 1995 CCM 184 HP 07/2013 - 06/2015
325 d 1995 CCM 218 HP 07/2013 - 06/2016
330 d xDrive 2993 CCM 258 HP From 03/2014
330 d 2993 CCM 258 HP From 03/2014
335 d xDrive 2993 CCM 313 HP From 03/2014
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
320 i 1997 CCM 184 HP 11/2012 - 06/2015
328 i 1997 CCM 245 HP 07/2012 - 06/2015
316 d 1995 CCM 116 HP 11/2012 - 06/2019
318 d 1995 CCM 143 HP 11/2012 - 06/2015
320 d 1995 CCM 184 HP 07/2012 - 02/2016
330 d 2993 CCM 258 HP 07/2012 - 06/2019
320 d 1995 CCM 163 HP 07/2012 - 06/2019
325 d 1995 CCM 218 HP 03/2013 - 02/2016
335 i xDrive 2979 CCM 306 HP 03/2013 - 06/2015
335 i 2979 CCM 306 HP 03/2013 - 06/2015
328 i xDrive 1997 CCM 245 HP 03/2013 - 06/2016
320 i xDrive 1997 CCM 184 HP 03/2013 - 06/2015
330 d xDrive 2993 CCM 258 HP 03/2013 - 06/2019
320 d xDrive 1995 CCM 184 HP 03/2013 - 06/2015
316 i 1598 CCM 136 HP 03/2013 - 06/2015
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
435 d xDrive 2993 CCM 313 HP 11/2013 - 06/2020
420 d xDrive 1995 CCM 184 HP 11/2013 - 02/2015
430 d 2993 CCM 258 HP 11/2013 - 06/2020
420 i xDrive 1997 CCM 184 HP 11/2013 - 02/2016
428 i 1997 CCM 245 HP 07/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 07/2013 - 02/2016
435 i 2979 CCM 306 HP 07/2013 - 02/2016
435 i xDrive 2979 CCM 306 HP 07/2013 - 02/2016
430 d xDrive 2993 CCM 258 HP 03/2014 - 06/2020
435 i 2979 CCM 340 HP 07/2013 - 02/2016
435 i xDrive 2979 CCM 340 HP 07/2013 - 02/2016
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
435 i 2979 CCM 306 HP 11/2013 - 02/2016
420 d 1995 CCM 184 HP 10/2013 - 06/2015
428 i 1997 CCM 245 HP 11/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
420 i 1997 CCM 184 HP 07/2014 - 02/2016
435 i xDrive 2979 CCM 306 HP 07/2014 - 02/2016
425 d 1995 CCM 218 HP 07/2014 - 02/2016
430 d 2993 CCM 258 HP 07/2014 - 07/2020
435 d xDrive 2993 CCM 313 HP 07/2014 - 07/2020
430 d 2993 CCM 286 HP 07/2014 - 07/2020
435 i xDrive 2979 CCM 340 HP 07/2014 - 02/2016
435 i 2979 CCM 340 HP 11/2013 - 02/2016
420 d 1995 CCM 200 HP 10/2013 - 06/2015
420 d 1995 CCM 190 HP 07/2015 - 07/2020
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
418 d 1995 CCM 143 HP 03/2014 - 06/2015
435 i 2979 CCM 306 HP 03/2014 - 02/2016
420 d 1995 CCM 184 HP 03/2014 - 02/2015
420 d xDrive 1995 CCM 184 HP 03/2014 - 02/2015
420 i 1997 CCM 184 HP 03/2014 - 02/2017
428 i 1997 CCM 245 HP 03/2014 - 06/2016
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
420 i xDrive 1997 CCM 184 HP 07/2014 - 02/2016
435 i xDrive 2979 CCM 306 HP 07/2014 - 02/2016
430 d 2993 CCM 258 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 258 HP 07/2014 - 12/2020
435 d xDrive 2993 CCM 313 HP 07/2014 - 12/2020
430 d 2993 CCM 286 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 286 HP 07/2014 - 12/2020
435 i 2979 CCM 340 HP 03/2014 - 02/2016

The Brembo 09.C401.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 24 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 75
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.C401.13
  • Barcode 8020584220863
  • BMW : 34206797607 34206894382
  • APEC : DSK3253
  • APEC : DSK3253B
  • APEC : SDK6998
  • BLUE PRINT : ADB114379
  • BORG & BECK : BBD6176S
  • BOSCH : 0 986 479 E17
  • DELPHI : BG4752C
  • DELPHI : BG9583BC
  • Fahren : FBD6998
  • FEBI BILSTEIN : 105726
  • HELLA : 8DD 355 120-851
  • MEYLE : 383 523 1006/PD
  • NAPA : NBD5687
  • National : NBD2072
  • National : NBD2072B
  • SKF : VKBD 90456 V1
  • TEXTAR : 92265625
  • TRW : DF6607S
  • VALEO : 672791
