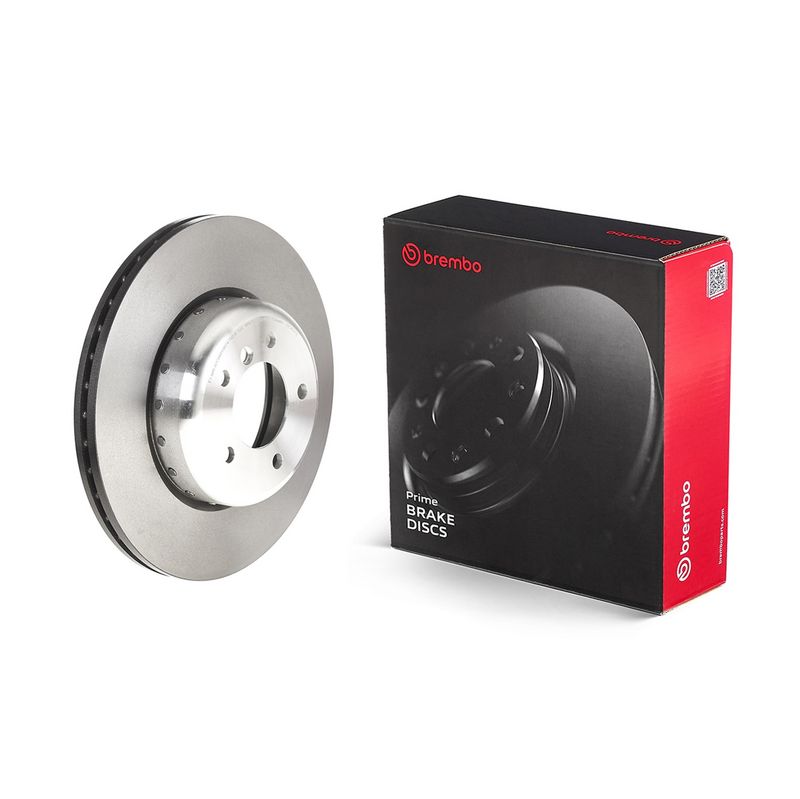

Brembo 09.C403.13 Brake Disc
Your selected vehicle
Regular price
£132.14
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

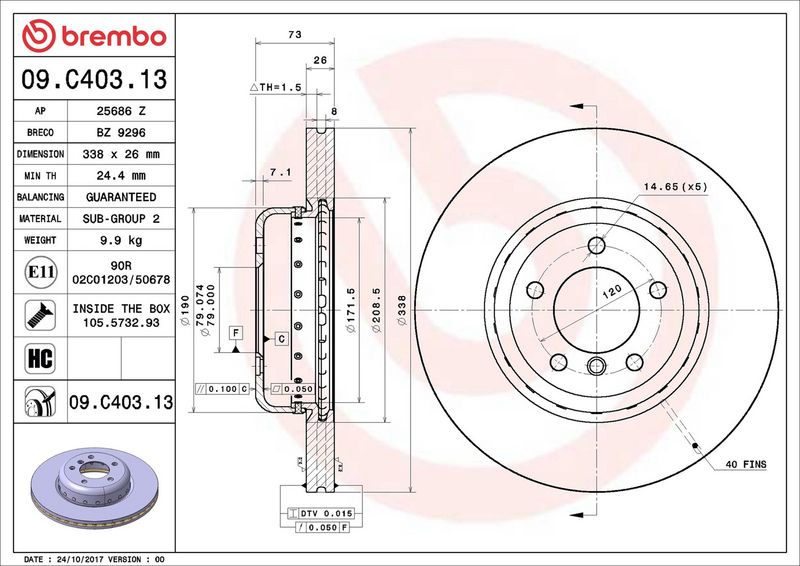

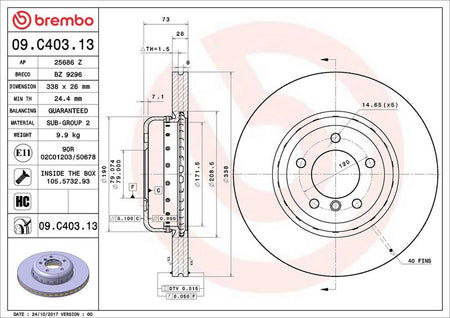

The Brembo 09.C403.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 26 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
internally vented
Brake Disc Type :
two-piece brake disc
Brake Disc Type :
Aluminium Brake Disc Hub
Brake Disc Thickness [mm] :
26
Number of Holes :
5
Supplementary Article/Supplementary Info 2 :
with bolts/screws
Height [mm] :
73
Centering Diameter [mm] :
79
Outer Diameter [mm] :
338
Machining :
High-carbon
Surface :
Coated
Minimum thickness [mm] :
24.4
- Vendor BREMBO
- SKU 09.C403.13
- BMW : 34116778647
- BLUE PRINT : ADB114374
- BORG & BECK : BBD5976S
- BOSCH : 0 986 479 773
- DELPHI : BG9197C
- FEBI BILSTEIN : 105729
- National : NBD2036
- TEXTAR : 92219725
- TRW : DF6609S
