BREMBO

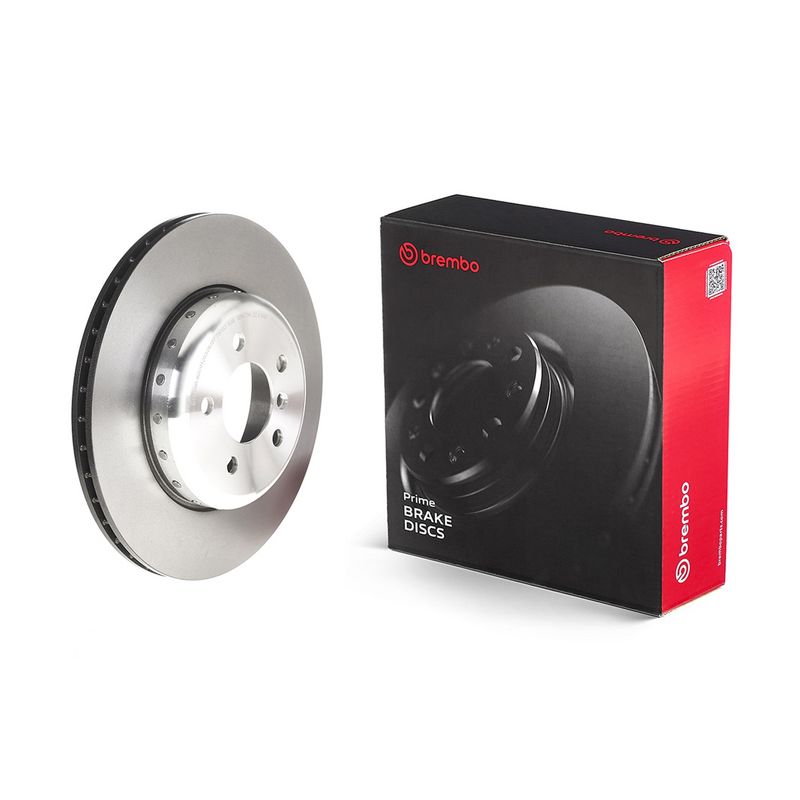

Brembo 09.C404.13 Brake Disc

SKU: 09.C404.13
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£116.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
5 Gran Turismo (F07)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 211 HP 09/2010 - 02/2017
535 i 2979 CCM 306 HP 01/2009 - 02/2017
530 d 2993 CCM 245 HP 08/2009 - 06/2012
535 d xDrive 2993 CCM 299 HP 03/2010 - 06/2012
535 i xDrive 2979 CCM 306 HP 09/2010 - 02/2017
530 d xDrive 2993 CCM 245 HP 06/2010 - 06/2012
535 d 2993 CCM 299 HP 03/2010 - 06/2012
520 d 1995 CCM 184 HP 04/2011 - 02/2017
530 d 2993 CCM 258 HP 07/2012 - 02/2017
530 d xDrive 2993 CCM 258 HP 07/2012 - 02/2017
535 d xDrive 2993 CCM 313 HP 07/2012 - 02/2017
5 (F10)
Description Cylinder Capacity Horse Power Year
M 550 d xDrive 2993 CCM 381 HP 03/2012 - 10/2016
535 i xDrive 2979 CCM 306 HP 03/2011 - 10/2016
530 i 2996 CCM 272 HP 05/2011 - 06/2013
530 d 2993 CCM 258 HP 09/2011 - 10/2016
530 d xDrive 2993 CCM 258 HP 03/2011 - 10/2016
535 d 2993 CCM 313 HP 09/2011 - 10/2016
535 d xDrive 2993 CCM 313 HP 09/2011 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
M 550 d xDrive 2993 CCM 381 HP 03/2012 - 02/2017
528 i 1997 CCM 245 HP 09/2011 - 02/2017
530 i 2996 CCM 272 HP 07/2011 - 06/2013
550 i 4395 CCM 408 HP 09/2010 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 02/2017
525 d xDrive 1995 CCM 218 HP 09/2011 - 02/2017
530 d 2993 CCM 258 HP 09/2011 - 02/2017
530 d xDrive 2993 CCM 258 HP 03/2011 - 02/2017
535 d 2993 CCM 313 HP 09/2011 - 02/2017
535 d xDrive 2993 CCM 313 HP 09/2011 - 02/2017
535 i xDrive 2979 CCM 306 HP 09/2011 - 02/2017
6 Convertible (F12)
Description Cylinder Capacity Horse Power Year
640 d xDrive 2993 CCM 313 HP 03/2012 - 06/2018
640 i 2979 CCM 320 HP 09/2011 - 06/2018
650 i 4395 CCM 408 HP 12/2010 - 06/2012
640 d 2993 CCM 313 HP 09/2011 - 06/2018
650 i xDrive 4395 CCM 407 HP 09/2011 - 06/2012
650 i xDrive 4395 CCM 449 HP 07/2012 - 06/2018
650 i 4395 CCM 449 HP 07/2012 - 06/2018
640 i xDrive 2979 CCM 320 HP 03/2013 - 06/2018
650 i 4395 CCM 405 HP 09/2011 - 12/2012
6 Coupe (F13)
Description Cylinder Capacity Horse Power Year
640 d xDrive 2993 CCM 313 HP 03/2012 - 10/2017
640 i 2979 CCM 320 HP 07/2011 - 10/2017
650 i 4395 CCM 408 HP 07/2011 - 06/2012
650 i xDrive 4395 CCM 408 HP 09/2011 - 02/2015
640 d 2993 CCM 313 HP 09/2011 - 10/2017
650 i 4395 CCM 449 HP 07/2012 - 10/2017
650 i xDrive 4395 CCM 449 HP 07/2012 - 10/2017
640 i xDrive 2979 CCM 320 HP 03/2013 - 10/2017
650 i 4395 CCM 405 HP 09/2011 - 12/2012
6 Gran Coupe (F06)
Description Cylinder Capacity Horse Power Year
640 i 2979 CCM 320 HP 03/2012 - 10/2018
650 i 4395 CCM 449 HP 07/2012 - 10/2018
650 i xDrive 4395 CCM 449 HP 07/2012 - 10/2018
640 d 2993 CCM 313 HP 03/2012 - 10/2018
640 i xDrive 2979 CCM 320 HP 03/2013 - 10/2018
640 d xDrive 2993 CCM 313 HP 03/2013 - 10/2018
7 (F01, F02, F03, F04)
Description Cylinder Capacity Horse Power Year
740 d xDrive 2993 CCM 306 HP 09/2010 - 12/2012
730 i, Li 2996 CCM 258 HP 09/2009 - 06/2015
740 i, Li 2979 CCM 326 HP 09/2008 - 06/2012
730 d 2993 CCM 245 HP 09/2008 - 06/2012
740 d 2993 CCM 306 HP 09/2009 - 06/2012
730 d 2993 CCM 211 HP 02/2008 - 05/2015
740 i, Li 2979 CCM 320 HP 07/2012 - 12/2015
730 d 2993 CCM 258 HP 07/2012 - 05/2015
730 d xDrive 2993 CCM 258 HP 11/2011 - 05/2015
740 d 2993 CCM 313 HP 07/2012 - 06/2015
740 d xDrive 2993 CCM 313 HP 07/2012 - 06/2015

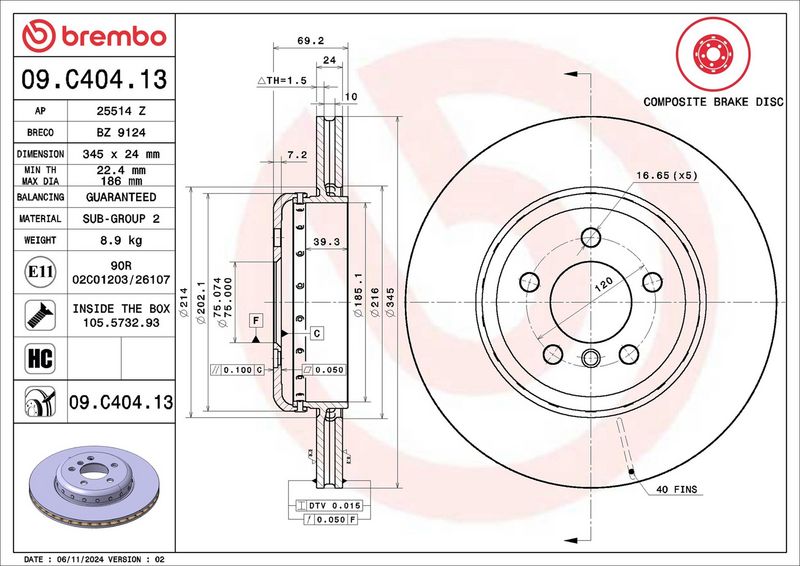

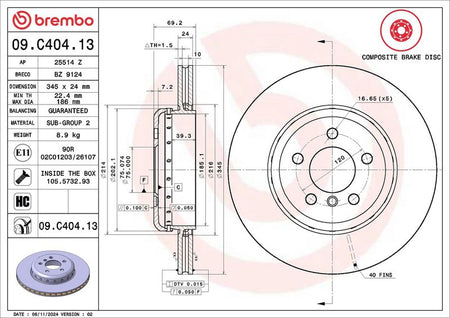

The Brembo 09.C404.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 24 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 69
Centering Diameter [mm] : 75
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.C404.13
  • Barcode 8020584039281
  • BMW : 34206894381 34216775289
  • BLUE PRINT : ADB114367
  • BORG & BECK : BBD6042S
  • BOSCH : 0 986 479 D59
  • BOSCH : 0 986 479 E08
  • DELPHI : BG9130BC
  • DELPHI : BG9130C
  • FEBI BILSTEIN : 104805
  • FTE : 9081209
  • HELLA : 8DD 355 120-871
  • MEYLE : 383 523 1003/PD
  • National : NBD1878
  • National : NBD1878B
  • SKF : VKBD 90162 V1
  • TEXTAR : 92253903
  • TEXTAR : 92253925
  • TRW : DF6610S
