Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.C408.13 Brake Disc - 1
Brembo 09.C408.13 Brake Disc - 2
Brembo 09.C408.13 Brake Disc - 1
Brembo 09.C408.13 Brake Disc - 2
BREMBO

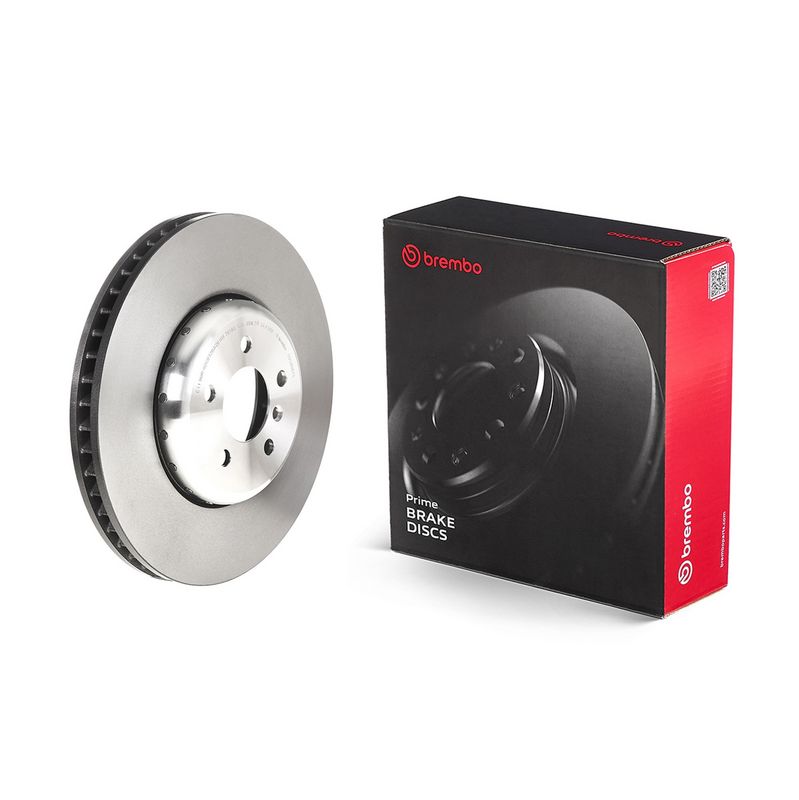

Brembo 09.C408.13 Brake Disc

SKU: 09.C408.13
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£173.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
5 Gran Turismo (F07)
Description Cylinder Capacity Horse Power Year
550 i 4395 CCM 408 HP 08/2009 - 06/2012
550 i xDrive 4395 CCM 408 HP 06/2010 - 06/2012
550 i 4395 CCM 449 HP 07/2012 - 02/2017
550 i xDrive 4395 CCM 449 HP 07/2012 - 02/2017
5 (F10)
Description Cylinder Capacity Horse Power Year
M 550 d xDrive 2993 CCM 381 HP 03/2012 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
M 550 d xDrive 2993 CCM 381 HP 03/2012 - 02/2017
550 i 4395 CCM 408 HP 09/2010 - 06/2013
6 Convertible (F12)
Description Cylinder Capacity Horse Power Year
650 i 4395 CCM 408 HP 12/2010 - 06/2012
650 i xDrive 4395 CCM 407 HP 09/2011 - 06/2012
650 i xDrive 4395 CCM 449 HP 07/2012 - 06/2018
650 i 4395 CCM 449 HP 07/2012 - 06/2018
650 i 4395 CCM 405 HP 09/2011 - 12/2012
6 Coupe (F13)
Description Cylinder Capacity Horse Power Year
650 i 4395 CCM 408 HP 07/2011 - 06/2012
650 i xDrive 4395 CCM 408 HP 09/2011 - 02/2015
650 i 4395 CCM 449 HP 07/2012 - 10/2017
650 i xDrive 4395 CCM 449 HP 07/2012 - 10/2017
650 i 4395 CCM 405 HP 09/2011 - 12/2012
6 Gran Coupe (F06)
Description Cylinder Capacity Horse Power Year
650 i 4395 CCM 449 HP 07/2012 - 10/2018
650 i xDrive 4395 CCM 449 HP 07/2012 - 10/2018
7 (F01, F02, F03, F04)
Description Cylinder Capacity Horse Power Year
ActiveHybrid 7 4395 CCM 465 HP 04/2010 - 06/2012
740 i, Li 2979 CCM 326 HP 09/2008 - 06/2012
750 i, Li 4395 CCM 408 HP 09/2008 - 06/2012
750 i, Li xDrive 4395 CCM 408 HP 09/2009 - 06/2012

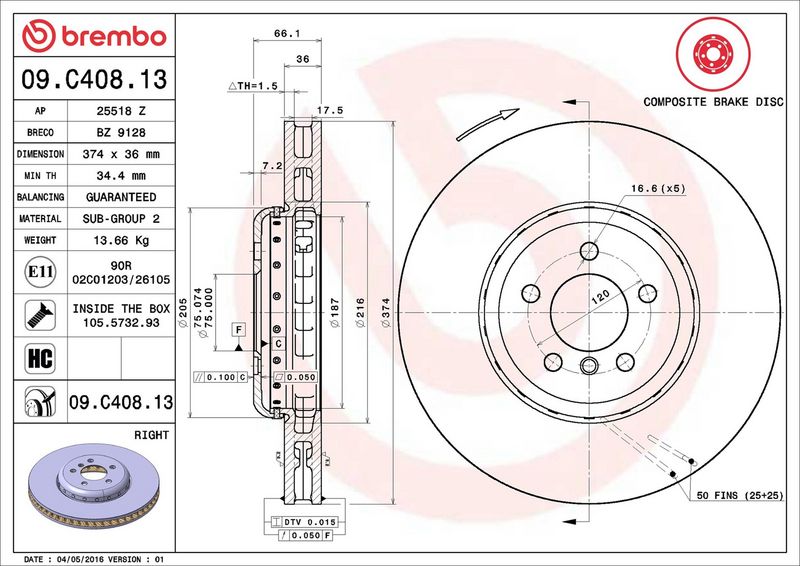

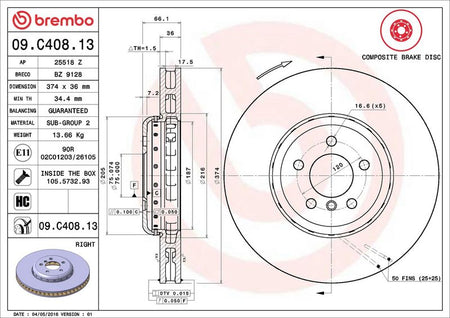

The Brembo 09.C408.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 36 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 36
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 75
Outer Diameter [mm] : 374
Machining : High-carbon
Surface : Coated
Paired article number : 09.C407.13
Minimum thickness [mm] : 34.4
  • Vendor BREMBO
  • SKU 09.C408.13
  • Barcode 8020584039328
  • BMW : 34106894384 34116785676
  • APEC : DSK3136
  • APEC : DSK3136B
  • BLUE PRINT : ADB1143118
  • BORG & BECK : BBD6179S
  • BORG & BECK : BBD7028S
  • BOSCH : 0 986 479 E27
  • DELPHI : BG9161BC
  • DELPHI : BG9161C
  • FEBI BILSTEIN : 108212
  • HELLA : 8DD 355 120-691
  • SKF : VKBD 80757 V1
  • TEXTAR : 92266125
  • TRW : DF6614S
