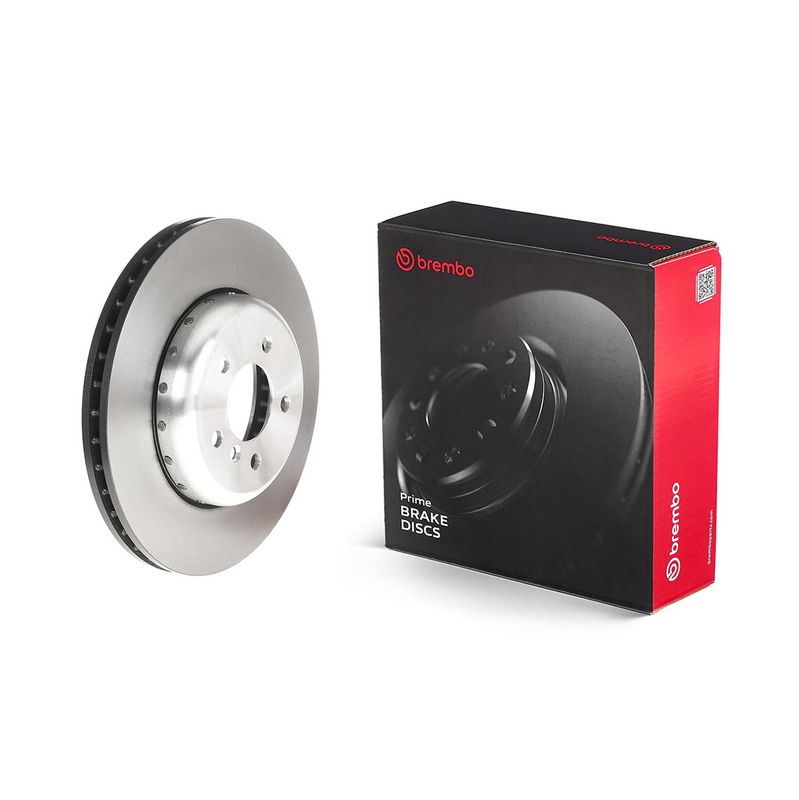

Brembo 09.C409.13 Brake Disc

Position: Front
5.0/5 78 reviews
SKU: 09.C409.13

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
Regular price £189.40 inc. VAT

Complete the job

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

BMW
5 Gran Turismo (F07)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 245 HP 08/2009 - 06/2012
530 d xDrive 2993 CCM 245 HP 06/2010 - 06/2012
5 (F10)
Description Cylinder Capacity Horse Power Year
525 d xDrive 1995 CCM 211 HP 09/2011 - 10/2016
525 d 1995 CCM 211 HP 09/2011 - 10/2016
535 i xDrive 2979 CCM 306 HP 03/2011 - 10/2016
528 i 1997 CCM 245 HP 09/2011 - 10/2016
528 i xDrive 1997 CCM 245 HP 09/2011 - 10/2016
530 i 2996 CCM 272 HP 05/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 10/2016
525 d xDrive 1995 CCM 218 HP 09/2011 - 10/2016
530 d 2993 CCM 258 HP 09/2011 - 10/2016
530 d xDrive 2993 CCM 258 HP 03/2011 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
528 i 1997 CCM 245 HP 09/2011 - 02/2017
528 i xDrive 1997 CCM 245 HP 09/2011 - 02/2017
530 i 2996 CCM 272 HP 07/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 02/2017
525 d xDrive 1995 CCM 218 HP 09/2011 - 02/2017
530 d 2993 CCM 258 HP 09/2011 - 02/2017
530 d xDrive 2993 CCM 258 HP 03/2011 - 02/2017
535 i xDrive 2979 CCM 306 HP 09/2011 - 02/2017
528 i 2996 CCM 258 HP 11/2009 - 08/2011
6 Convertible (F12)
Description Cylinder Capacity Horse Power Year
640 i 2979 CCM 320 HP 09/2011 - 06/2018
640 i xDrive 2979 CCM 320 HP 03/2013 - 06/2018
6 Coupe (F13)
Description Cylinder Capacity Horse Power Year
640 i 2979 CCM 320 HP 07/2011 - 10/2017
640 i xDrive 2979 CCM 320 HP 03/2013 - 10/2017
6 Gran Coupe (F06)
Description Cylinder Capacity Horse Power Year
640 i 2979 CCM 320 HP 03/2012 - 10/2018
640 i xDrive 2979 CCM 320 HP 03/2013 - 10/2018
7 (F01, F02, F03, F04)
Description Cylinder Capacity Horse Power Year
730 i, Li 2996 CCM 258 HP 09/2009 - 06/2015
730 d 2993 CCM 245 HP 09/2008 - 06/2012

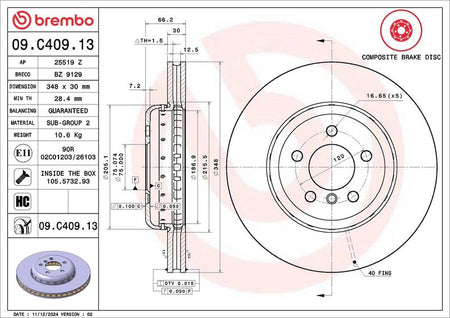

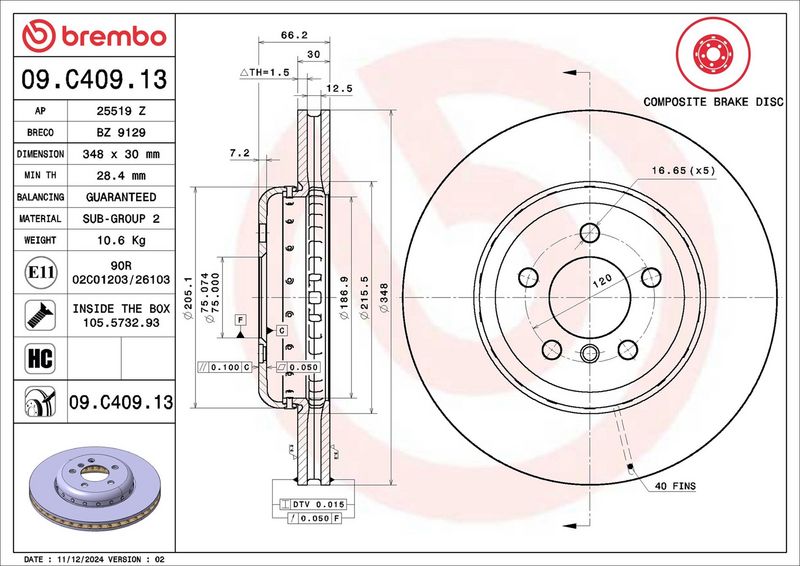

The Brembo 09.C409.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 30 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 75
Outer Diameter [mm] : 348
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28.4
  • Vendor BREMBO
  • SKU 09.C409.13
  • Barcode 8020584039335
  • BMW : 34106898723 34116775277 34116884301
  • APEC : DSK3254
  • APEC : DSK3254B
  • APEC : SDK6855
  • BLUE PRINT : ADB114384
  • BORG & BECK : BBD6041S
  • BOSCH : 0 986 479 772
  • BOSCH : 0 986 479 E16
  • DELPHI : BG9154BC
  • DELPHI : BG9154C
  • FEBI BILSTEIN : 105723
  • HELLA : 8DD 355 120-651
  • MEYLE : 383 521 1008/PD
  • NAPA : NBD5525
  • National : NBD1877
  • National : NBD1877B
  • SKF : VKBD 80197 V1
  • TEXTAR : 92265725
  • TRW : DF6615S
