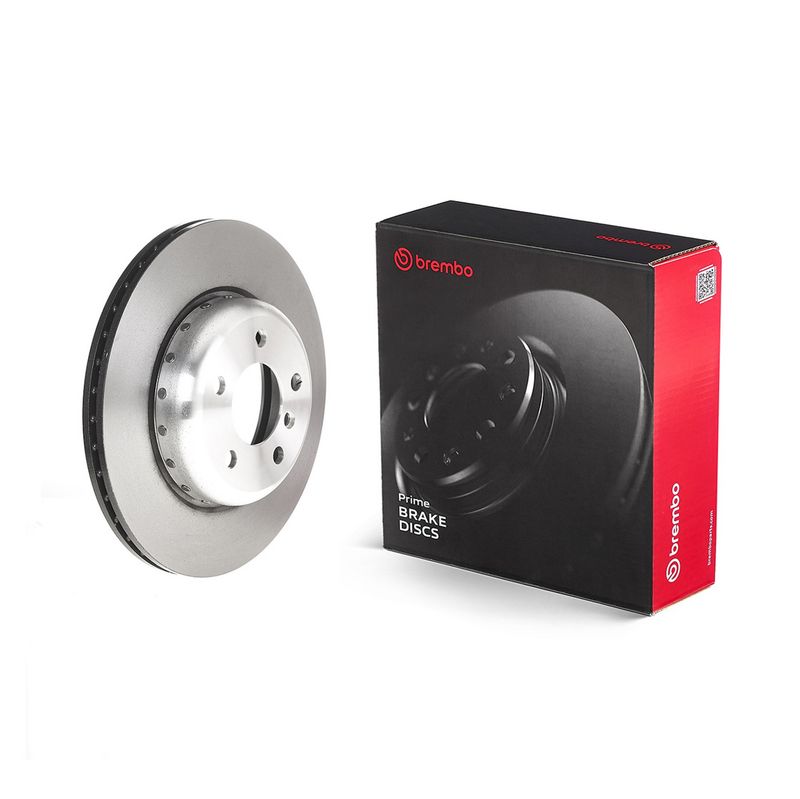

Brembo 09.C410.13 Brake Disc - 1

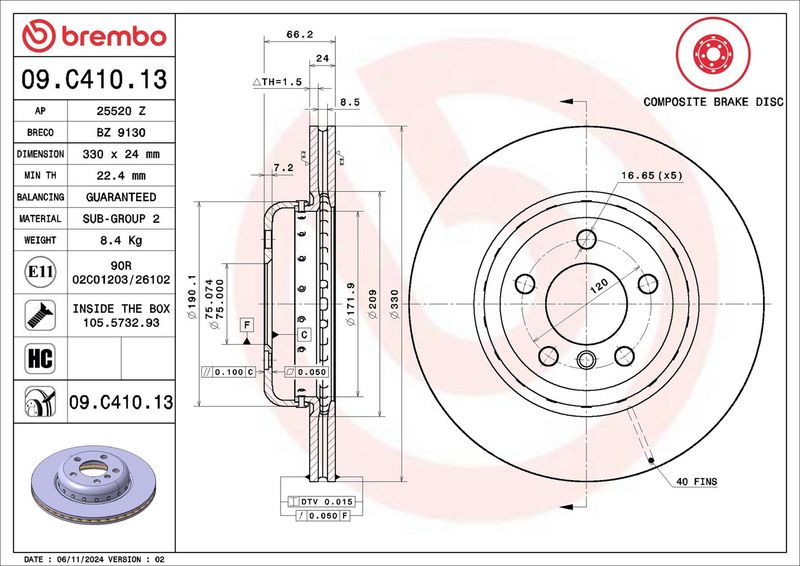

Brembo 09.C410.13 Brake Disc - 2
Brembo 09.C410.13 Brake Disc - 1

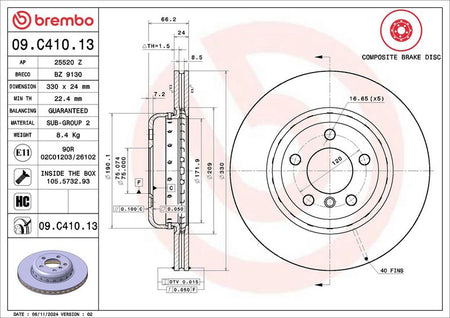

Brembo 09.C410.13 Brake Disc - 2
BREMBO

Brembo 09.C410.13 Brake Disc

5.0/5 65 reviews
SKU: 09.C410.13

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£142.22 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

BMW
5 (F10)
Description Cylinder Capacity Horse Power Year
525 d xDrive 1995 CCM 211 HP 09/2011 - 10/2016
525 d 1995 CCM 211 HP 09/2011 - 10/2016
520 i 1997 CCM 163 HP 09/2011 - 10/2016
520 i 1997 CCM 184 HP 09/2011 - 10/2016
528 i 1997 CCM 245 HP 09/2011 - 10/2016
528 i xDrive 1997 CCM 245 HP 09/2011 - 10/2016
530 i 2996 CCM 272 HP 05/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 10/2016
525 d xDrive 1995 CCM 218 HP 09/2011 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
520 i 1997 CCM 184 HP 10/2010 - 02/2017
528 i 1997 CCM 245 HP 09/2011 - 02/2017
528 i xDrive 1997 CCM 245 HP 09/2011 - 02/2017
530 i 2996 CCM 272 HP 07/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 02/2017
525 d xDrive 1995 CCM 218 HP 09/2011 - 02/2017
523 i 2996 CCM 204 HP 11/2009 - 08/2011
528 i 2996 CCM 258 HP 11/2009 - 08/2011

The Brembo 09.C410.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 24 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 75
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.C410.13
  • Barcode 8020584039342
  • BMW : 34116794429 34116896652
  • APEC : DSK3063
  • APEC : DSK3063B
  • APEC : SDK6781
  • BLUE PRINT : ADB114365
  • BORG & BECK : BBD6039S
  • BOSCH : 0 986 479 E07
  • DELPHI : BG9129BC
  • DELPHI : BG9129C
  • Fahren : FBD6781
  • FEBI BILSTEIN : 104803
  • FTE : 9081207
  • HELLA : 8DD 355 120-661
  • MEYLE : 383 521 1004/PD
  • NAPA : NBD5601
  • National : NBD1825
  • National : NBD1825B
  • SKF : VKBD 80093 V1
  • TEXTAR : 92265825
  • TRW : DF6616S
