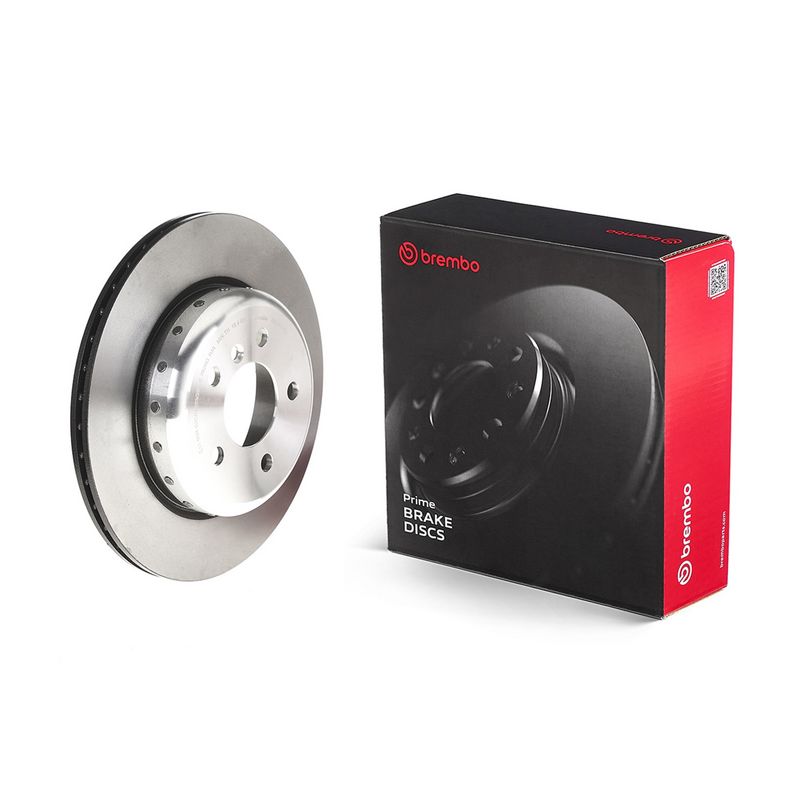

Brembo 09.C411.13 Brake Disc - 1

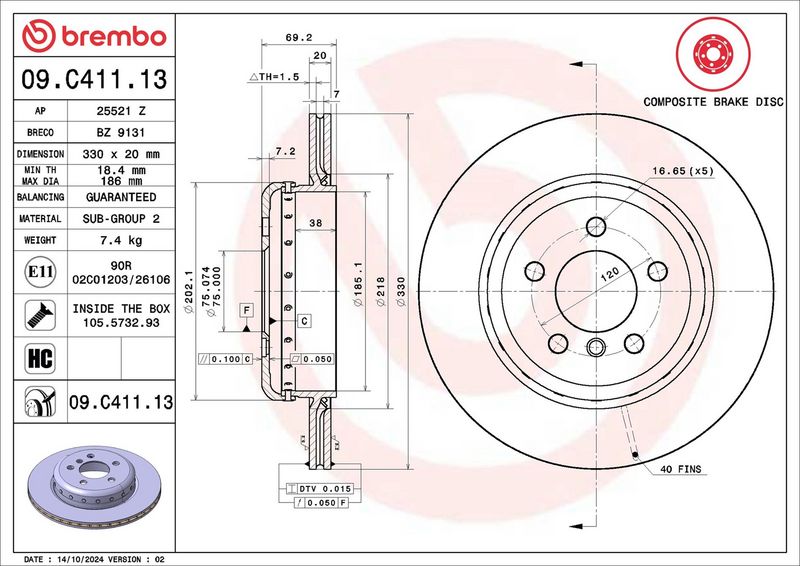

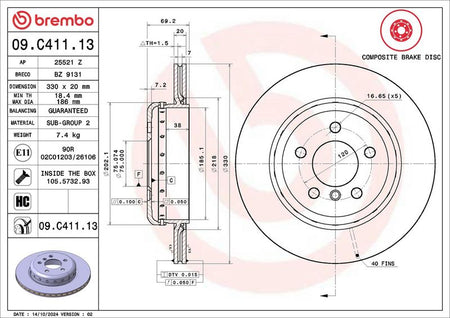

Brembo 09.C411.13 Brake Disc - 2
Brembo 09.C411.13 Brake Disc - 1
Brembo 09.C411.13 Brake Disc - 2
BREMBO

Brembo 09.C411.13 Brake Disc

SKU: 09.C411.13
Your selected vehicle
Out of stock
Out of Stock
£104.54 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
5 (F10)
Description Cylinder Capacity Horse Power Year
525 d xDrive 1995 CCM 211 HP 09/2011 - 10/2016
525 d 1995 CCM 211 HP 09/2011 - 10/2016
520 i 1997 CCM 163 HP 09/2011 - 10/2016
535 i xDrive 2979 CCM 306 HP 03/2011 - 10/2016
520 i 1997 CCM 184 HP 09/2011 - 10/2016
528 i 1997 CCM 245 HP 09/2011 - 10/2016
528 i xDrive 1997 CCM 245 HP 09/2011 - 10/2016
530 i 2996 CCM 272 HP 05/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 10/2016
525 d xDrive 1995 CCM 218 HP 09/2011 - 10/2016
530 d 2993 CCM 258 HP 09/2011 - 10/2016
530 d xDrive 2993 CCM 258 HP 03/2011 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
520 i 1997 CCM 184 HP 10/2010 - 02/2017
528 i 1997 CCM 245 HP 09/2011 - 02/2017
528 i xDrive 1997 CCM 245 HP 09/2011 - 02/2017
530 i 2996 CCM 272 HP 07/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 02/2017
525 d xDrive 1995 CCM 218 HP 09/2011 - 02/2017
530 d 2993 CCM 258 HP 09/2011 - 02/2017
530 d xDrive 2993 CCM 258 HP 03/2011 - 02/2017
535 i xDrive 2979 CCM 306 HP 09/2011 - 02/2017
523 i 2996 CCM 204 HP 11/2009 - 08/2011
528 i 2996 CCM 258 HP 11/2009 - 08/2011

The Brembo 09.C411.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 20 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 69
Centering Diameter [mm] : 75
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 18.4
  • Vendor BREMBO
  • SKU 09.C411.13
  • Barcode 8020584039359
  • BMW : 34216775287 34216898733
  • BLUE PRINT : ADB114366
  • BORG & BECK : BBD6040S
  • BORG & BECK : BBD7026S
  • BOSCH : 0 986 479 D58
  • BOSCH : 0 986 479 E04
  • DELPHI : BG4664C
  • DELPHI : BG9421BC
  • FEBI BILSTEIN : 104804
  • FTE : 9081303
  • HELLA : 8DD 355 120-671
  • National : NBD1826
  • National : NBD1826B
  • SKF : VKBD 90102 V1
  • TEXTAR : 92265925
  • TRW : DF6617S
  • VALEO : 672784
