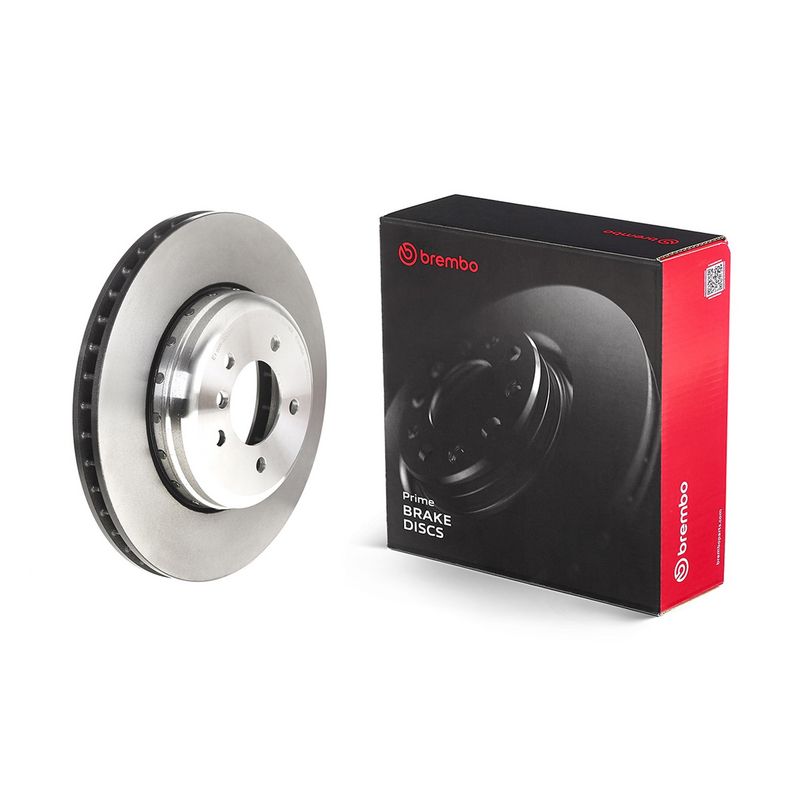

Brembo 09.C415.13 Brake Disc - 1

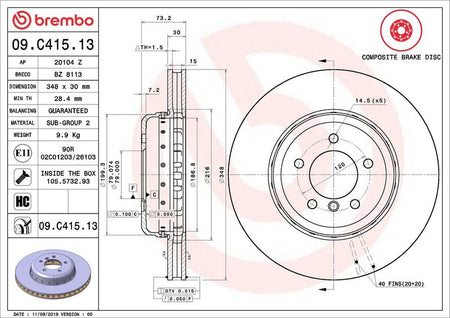

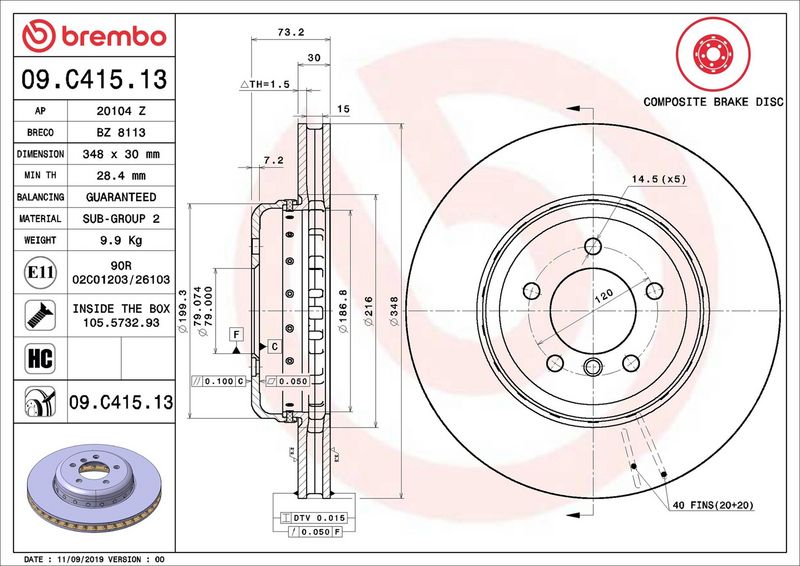

Brembo 09.C415.13 Brake Disc - 2
Brembo 09.C415.13 Brake Disc - 1
Brembo 09.C415.13 Brake Disc - 2
BREMBO

Brembo 09.C415.13 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.C415.13

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£153.72 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
Z4 Roadster (E89)
Description Cylinder Capacity Horse Power Year
sDrive 35 i 2979 CCM 306 HP 02/2009 - 08/2016
sDrive 35 is 2979 CCM 340 HP 03/2010 - 08/2016

The Brembo 09.C415.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 30 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 73
Centering Diameter [mm] : 79
Outer Diameter [mm] : 348
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28.4
  • Vendor BREMBO
  • SKU 09.C415.13
  • Barcode 8020584238233
  • BMW : 34116782593
  • APEC : DSK3301
  • APEC : DSK3301B
  • BLUE PRINT : ADB1143114
  • BOSCH : 0 986 479 E24
  • DELPHI : BG9159C
  • FEBI BILSTEIN : 107504
  • HELLA : 8DD 355 120-751
  • MEYLE : 383 521 1007/PD
  • TEXTAR : 92266825
