BREMBO

Brembo 09.C416.13 Brake Disc

SKU: 09.C416.13

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£166.33 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW

5 Gran Turismo (F07)

Description	Cylinder Capacity	Horse Power	Year
550 i	4395 CCM	408 HP	08/2009 - 06/2012
550 i xDrive	4395 CCM	408 HP	06/2010 - 06/2012
550 i	4395 CCM	449 HP	07/2012 - 02/2017
550 i xDrive	4395 CCM	449 HP	07/2012 - 02/2017

7 (F01, F02, F03, F04)

Description	Cylinder Capacity	Horse Power	Year
ActiveHybrid 7	4395 CCM	465 HP	04/2010 - 06/2012
750 i, Li	4395 CCM	408 HP	09/2008 - 06/2012
750 i, Li xDrive	4395 CCM	408 HP	09/2009 - 06/2012
760 i, Li	5972 CCM	544 HP	09/2009 - 12/2015

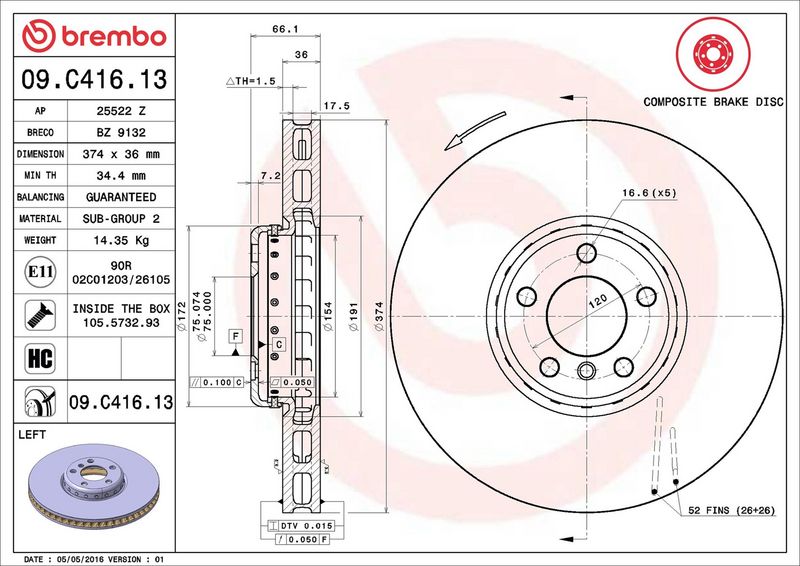

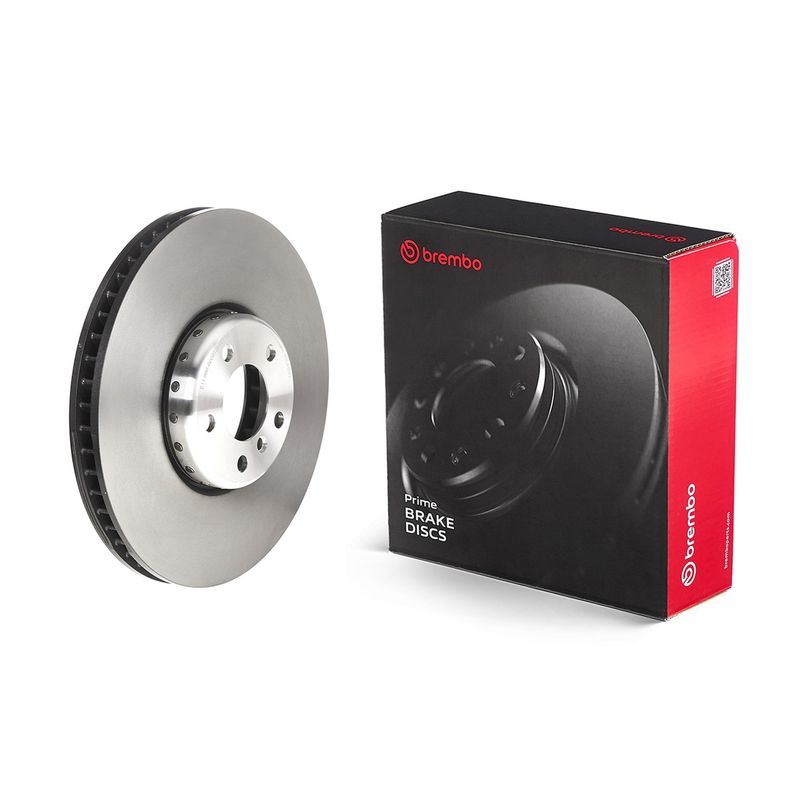

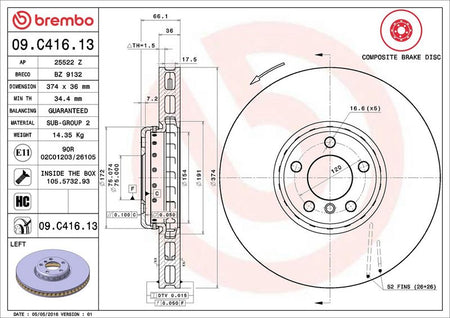

The Brembo 09.C416.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 36 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Type : two-piece brake disc

Brake Disc Type : Aluminium Brake Disc Hub

Brake Disc Thickness [mm] : 36

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 66

Centering Diameter [mm] : 75

Outer Diameter [mm] : 374

Machining : High-carbon

Surface : Coated

Paired article number : 09.C417.13

Minimum thickness [mm] : 34.4
