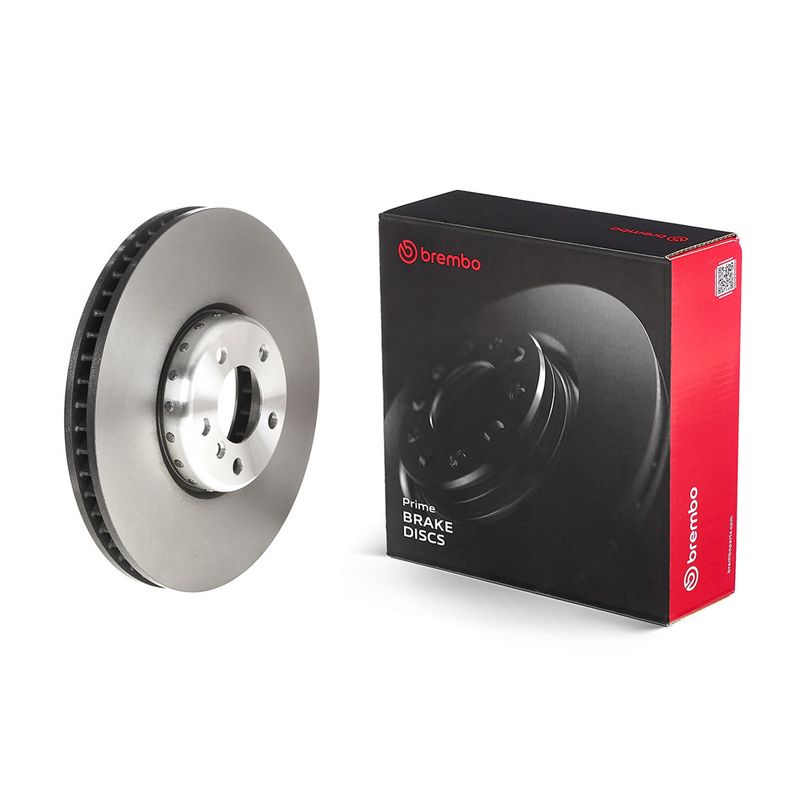

Brembo 09.C417.13 Brake Disc - 1

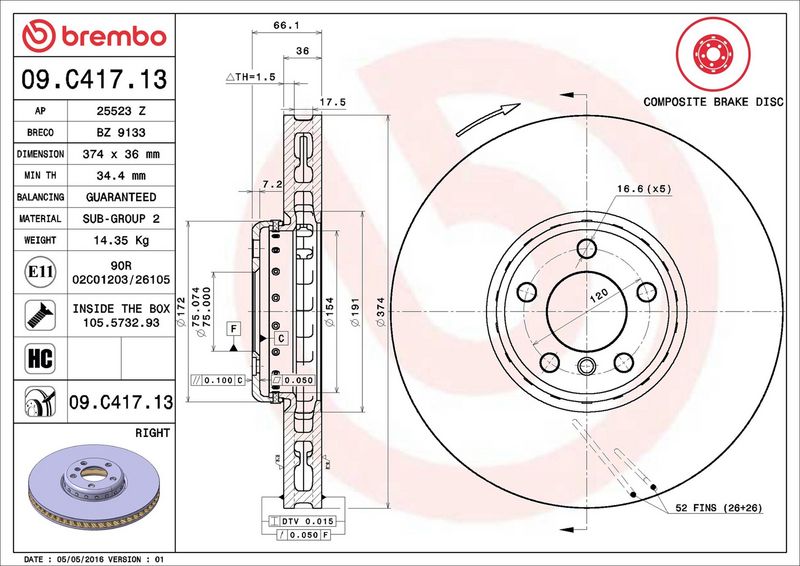

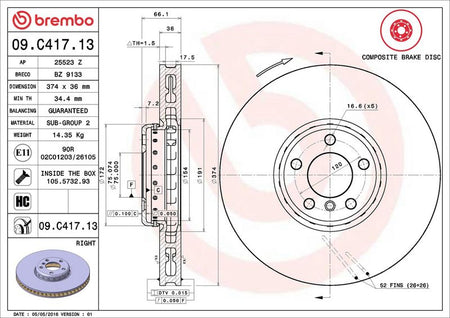

Brembo 09.C417.13 Brake Disc - 2
Brembo 09.C417.13 Brake Disc - 1
Brembo 09.C417.13 Brake Disc - 2
BREMBO

Brembo 09.C417.13 Brake Disc

5.0/5 65 reviews
SKU: 09.C417.13

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£166.33 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

BMW
5 Gran Turismo (F07)
Description Cylinder Capacity Horse Power Year
550 i 4395 CCM 408 HP 08/2009 - 06/2012
550 i xDrive 4395 CCM 408 HP 06/2010 - 06/2012
550 i 4395 CCM 449 HP 07/2012 - 02/2017
550 i xDrive 4395 CCM 449 HP 07/2012 - 02/2017
7 (F01, F02, F03, F04)
Description Cylinder Capacity Horse Power Year
ActiveHybrid 7 4395 CCM 465 HP 04/2010 - 06/2012
750 i, Li 4395 CCM 408 HP 09/2008 - 06/2012
750 i, Li xDrive 4395 CCM 408 HP 09/2009 - 06/2012
760 i, Li 5972 CCM 544 HP 09/2009 - 12/2015

The Brembo 09.C417.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 36 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 36
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 75
Outer Diameter [mm] : 374
Machining : High-carbon
Surface : Coated
Paired article number : 09.C416.13
Minimum thickness [mm] : 34.4
  • Vendor BREMBO
  • SKU 09.C417.13
  • Barcode 8020584039373
  • BMW : 34106898732 34115789544 34116783778 34116789544
  • APEC : DSK3256
  • APEC : DSK3256B
  • BLUE PRINT : ADBP430024
  • BOSCH : 0 986 479 E63
  • DELPHI : BG9418BC
  • FEBI BILSTEIN : 171461
  • HELLA : 8DD 355 120-711
  • TEXTAR : 92266325
  • TRW : DF6623S
