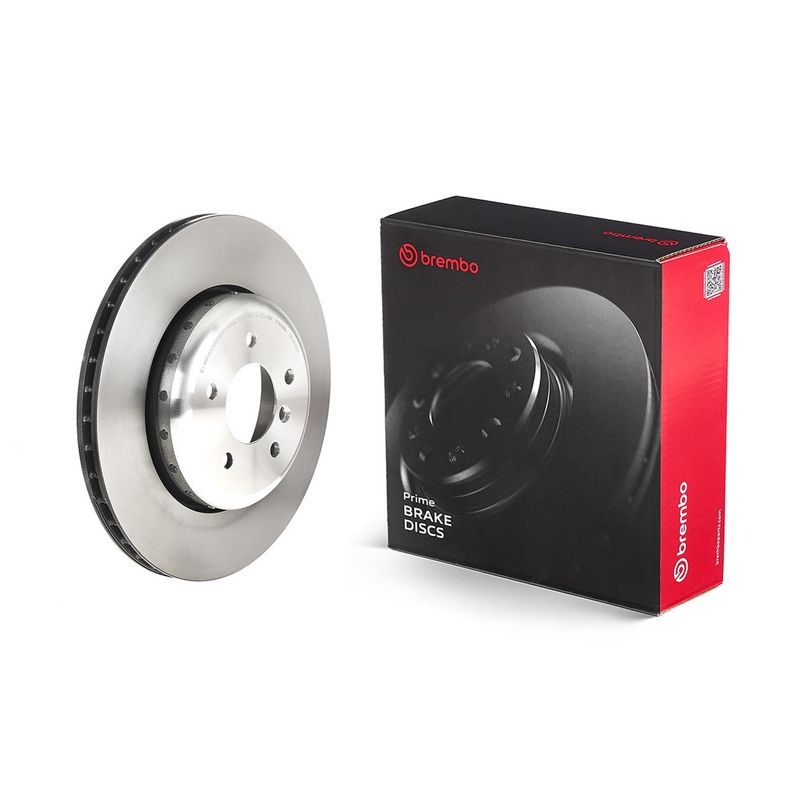

Brembo 09.C418.13 Brake Disc

SKU: 09.C418.13
Your selected vehicle
Out of stock
Out of Stock
£123.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
5 (E60)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 218 HP 09/2002 - 09/2005
545 i 4398 CCM 333 HP 07/2003 - 08/2005
535 d 2993 CCM 272 HP 09/2004 - 03/2010
530 i 2996 CCM 258 HP 03/2005 - 03/2007
540 i 4000 CCM 306 HP 03/2007 - 12/2009
550 i 4799 CCM 367 HP 09/2005 - 12/2009
530 d 2993 CCM 231 HP 09/2005 - 03/2007
5 Touring (E61)
Description Cylinder Capacity Horse Power Year
545 i 4398 CCM 333 HP 06/2004 - 12/2010
530 d 2993 CCM 218 HP 03/2004 - 09/2005
535 d 2993 CCM 272 HP 09/2004 - 12/2010
530 i 2996 CCM 258 HP 09/2004 - 02/2007
550 i 4799 CCM 367 HP 07/2005 - 12/2010
530 d 2993 CCM 231 HP 02/2005 - 02/2007
6 (E63)
Description Cylinder Capacity Horse Power Year
645 Ci 4398 CCM 333 HP 09/2003 - 08/2005
650 i 4799 CCM 367 HP 09/2005 - 08/2010
630 i 2996 CCM 272 HP 09/2007 - 08/2010
635 d 2993 CCM 286 HP 07/2007 - 07/2010
630 i 2996 CCM 272 HP 09/2007 - 08/2010
6 Convertible (E64)
Description Cylinder Capacity Horse Power Year
645 Ci 4398 CCM 333 HP 04/2004 - 08/2005
650 i 4799 CCM 367 HP 09/2005 - 08/2010
635 d 2993 CCM 286 HP 07/2007 - 07/2010
630 i 2996 CCM 272 HP 09/2007 - 08/2010
630 i 2996 CCM 272 HP 09/2007 - 08/2010

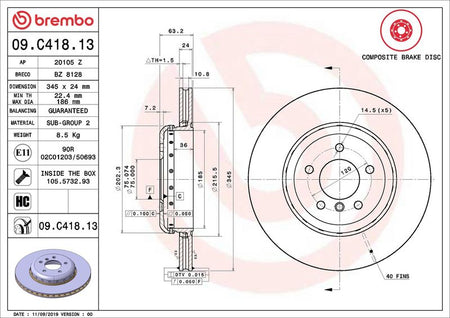

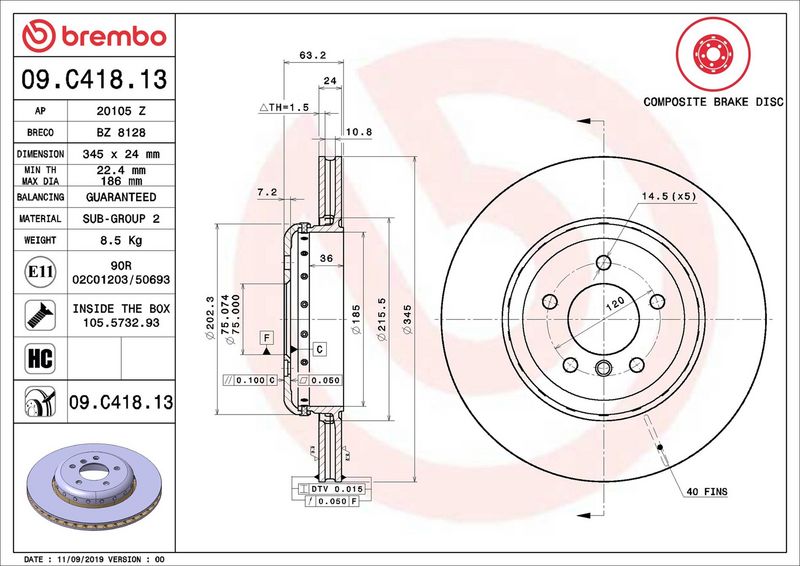

The Brembo 09.C418.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 24 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 63
Centering Diameter [mm] : 75
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.C418.13
  • Barcode 8020584239346
  • BMW : 34216763827
  • BMW (BRILLIANCE) : 34216763827
  • BLUE PRINT : ADB114369
  • BORG & BECK : BBD5803S
  • BORG & BECK : BBD7000S
  • BOSCH : 0 986 479 729
  • BOSCH : 0 986 479 E13
  • DELPHI : BG4753C
  • FEBI BILSTEIN : 104807
  • HELLA : 8DD 355 123-231
  • MEYLE : 383 523 1002/PD
  • SKF : VKBD 90336 V1
  • TEXTAR : 92182503
  • TEXTAR : 92182525
  • TRW : DF6624S
  • VALEO : 673254
