Brembo 09.C422.11 Brake Disc - 1
Brembo 09.C422.11 Brake Disc - 2
Brembo 09.C422.11 Brake Disc - 1
Brembo 09.C422.11 Brake Disc - 2
BREMBO

Brembo 09.C422.11 Brake Disc

SKU: 09.C422.11
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£74.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
B-MAX Van (JK)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 10/2012
B-MAX (JK)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 10/2012
1.0 EcoBoost 998 CCM 120 HP From 10/2012
1.6 Ti 1596 CCM 105 HP From 10/2012
1.6 TDCi 1560 CCM 95 HP From 10/2012
1.4 1388 CCM 90 HP From 10/2012
1.5 TDCi 1499 CCM 75 HP From 10/2012
1.0 EcoBoost 998 CCM 125 HP From 10/2012
1.4 LPG 1388 CCM 90 HP From 08/2013
1.5 TDCi 1499 CCM 95 HP From 04/2015
1.0 EcoBoost 998 CCM 140 HP From 02/2016
FIESTA VI (CB1, CCN)
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 134 HP 12/2010 - 04/2017
1.4 TDCi 1399 CCM 70 HP 07/2010 - 09/2012
1.25 1242 CCM 60 HP 06/2008 - 04/2017
1.25 1242 CCM 82 HP 06/2008 - 04/2017
1.6 TDCi 1560 CCM 90 HP 06/2008 - 12/2012
1.4 1388 CCM 97 HP 10/2008 - 12/2017
1.6 Ti 1596 CCM 120 HP 06/2008 - 09/2012
1.4 TDCi 1399 CCM 68 HP 08/2008 - 09/2012
1.6 TDCi 1560 CCM 75 HP 06/2008 - 12/2012
1.4 LPG 1388 CCM 97 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 12/2015
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 12/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 12/2017
1.6 Ti 1596 CCM 105 HP 09/2012 - 04/2017
FIESTA VI Van
Description Cylinder Capacity Horse Power Year
1.5 TDCi 1499 CCM 75 HP 10/2012 - 04/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 04/2017
1.0 EcoBoost 998 CCM 140 HP 05/2014 - 04/2017
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 04/2017
1.6 ST 1596 CCM 182 HP 03/2013 - 04/2017
1.5 TDCi 1499 CCM 95 HP 05/2015 - 04/2017
1.0 998 CCM 80 HP 10/2012 - 04/2017
FIESTA Saloon
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 120 HP 04/2010 - 04/2017
1.6 Ti 1596 CCM 105 HP 03/2015 - 04/2017
1.6 1596 CCM 85 HP 03/2015 - 04/2017
TOURNEO COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
TRANSIT COURIER B460 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
TRANSIT COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023

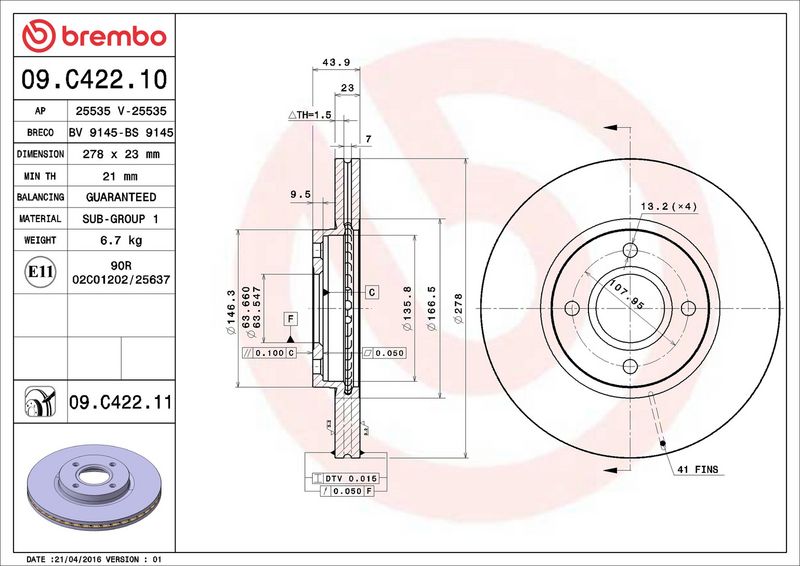

The Brembo 09.C422.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 23 mm brake disc thickness, 4 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 23
Number of Holes : 4
Height [mm] : 44
Centering Diameter [mm] : 64
Outer Diameter [mm] : 278
Surface : Coated
Minimum thickness [mm] : 21
  • Vendor BREMBO
  • SKU 09.C422.11
  • Barcode 8020584221068
  • FORD : 1751584 1833857 1833867 AY111125AA EY161125AA EY161125BA
  • FORD USA : AY1Z1125A
  • FORD ASIA & OCEANIA : AY111125AA
  • BLUE PRINT : ADF124338
  • BORG & BECK : BBD5316
  • BOSCH : 0 986 479 659
  • DELPHI : BG4565C
  • FEBI BILSTEIN : 105848
  • FTE : 9072039
  • FTE : 9082422
  • HELLA : 8DD 355 118-181
  • MEYLE : 715 521 0032
  • MEYLE : 715 521 0032/PD
  • MINTEX : MDC2481
  • National : NBD1821
  • SKF : VKBD 80134 V2
  • TEXTAR : 92252403
  • TRW : DF6509
  • VALEO : 197617
  • VALEO : 673022
