BREMBO

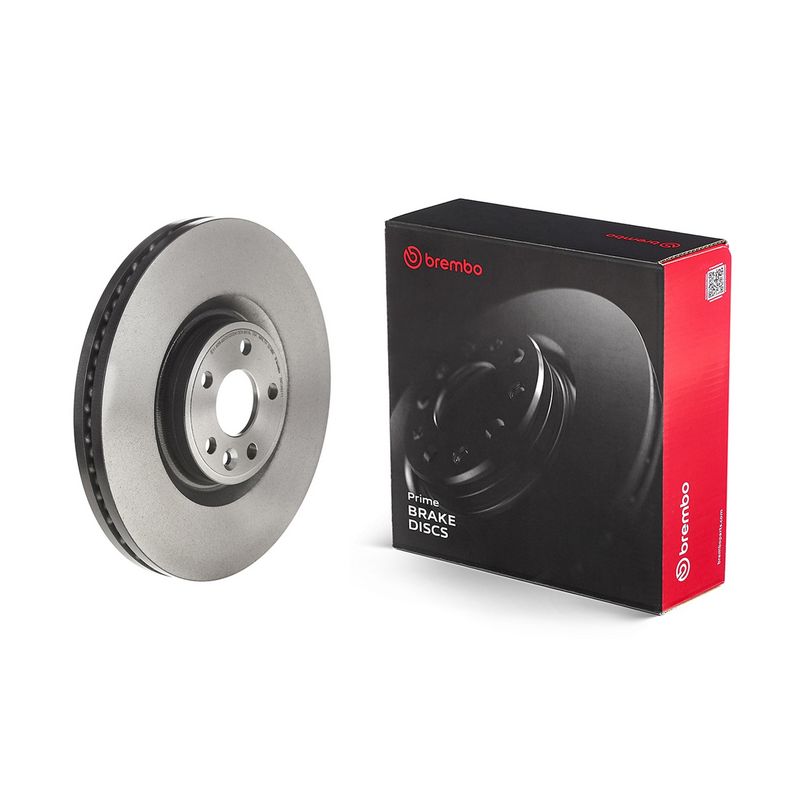

Brembo 09.C492.11 Brake Disc

SKU: 09.C492.11
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£106.27 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
E-PACE (X540)
Description Cylinder Capacity Horse Power Year
2.0 P200 AWD 1997 CCM 249 HP From 09/2017
2.0 AWD 1997 CCM 300 HP From 09/2017
2.0 D150 1999 CCM 150 HP From 09/2017
2.0 D150 AWD 1999 CCM 150 HP From 09/2017
2.0 D180 AWD 1999 CCM 179 HP From 09/2017
2.0 D240 AWD 1999 CCM 241 HP From 09/2017
2.0 P200 AWD 1997 CCM 200 HP From 08/2018
LAND ROVER
DISCOVERY SPORT (L550)
Description Cylinder Capacity Horse Power Year
2.0 D 4x4 1999 CCM 150 HP From 12/2014
2.2 D 4x4 2179 CCM 150 HP From 09/2014
2.2 D 4x4 2179 CCM 190 HP From 09/2014
2.0 4x4 1999 CCM 241 HP From 11/2014
2.0 D 4x4 1999 CCM 180 HP From 06/2015
2.0 D 1999 CCM 150 HP From 08/2015
2.0 4x4 1997 CCM 290 HP From 08/2017
2.0 D 4x4 1999 CCM 241 HP From 08/2017
2.0 Si4 FLEX 4x4 1997 CCM 241 HP From 12/2018
2.0 D150 MHEV 4x4 1999 CCM 150 HP From 05/2019
2.0 D180 MHEV 4x4 1999 CCM 179 HP From 05/2019
2.0 D240 MHEV 4x4 1999 CCM 241 HP From 05/2019
2.0 P200 MHEV 4x4 1997 CCM 200 HP From 05/2019
2.0 P250 MHEV 4x4 1997 CCM 250 HP From 05/2019
2.0 P250 4x4 1997 CCM 249 HP From 05/2019
RANGE ROVER EVOQUE (L538)
Description Cylinder Capacity Horse Power Year
2.2 D 4x4 2179 CCM 150 HP 06/2011 - 12/2019
2.2 D 4x4 2179 CCM 190 HP 05/2011 - 12/2019
2.0 4x4 1999 CCM 241 HP 06/2011 - 12/2019
2.0 4x4 1999 CCM 240 HP 09/2011 - 12/2019
2.0 4x4 1997 CCM 290 HP 08/2017 - 12/2019
2.0 D 4x4 1999 CCM 241 HP 08/2017 - 12/2019
2.0 4x4 1997 CCM 241 HP 08/2017 - 12/2019
RANGE ROVER EVOQUE Convertible (L538)
Description Cylinder Capacity Horse Power Year
2.0 4x4 1999 CCM 241 HP 11/2015 - 12/2019
2.0 D 4x4 1999 CCM 241 HP 08/2017 - 12/2019
2.0 4x4 1997 CCM 241 HP 08/2017 - 12/2019

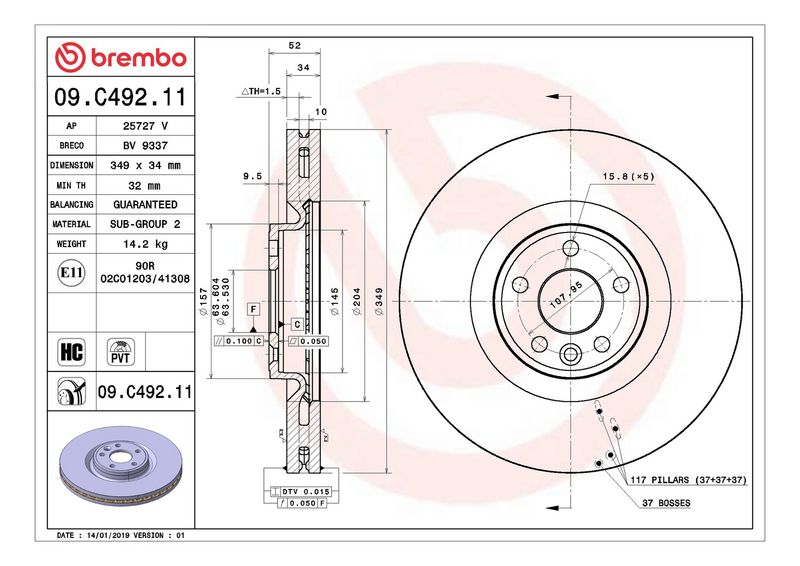

The Brembo 09.C492.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 34 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 34
Number of Holes : 5
Height [mm] : 52
Centering Diameter [mm] : 64
Outer Diameter [mm] : 349
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 32
  • Vendor BREMBO
  • SKU 09.C492.11
  • Barcode 8020584232422
  • JAGUAR : J9C1167
  • LAND ROVER : LR083647
  • JAGUAR (CHERY) : J9C1167
  • APEC : DSK3468
  • BLUE PRINT : ADJ134371
  • BORG & BECK : BBD6221S
  • DELPHI : BG9346C
  • FEBI BILSTEIN : 108690
  • HELLA : 8DD 355 131-961
  • MEYLE : 53-83 521 0020/PD
  • MINTEX : MDC2862C
  • NAPA : NBD5982
  • National : NBD2031
  • TEXTAR : 92301805
  • TRW : DF4073S
  • VALEO : 673306
