Brembo 09.C497.11 Brake Disc - 1
Brembo 09.C497.11 Brake Disc - 2
Brembo 09.C497.11 Brake Disc - 1
Brembo 09.C497.11 Brake Disc - 2
BREMBO

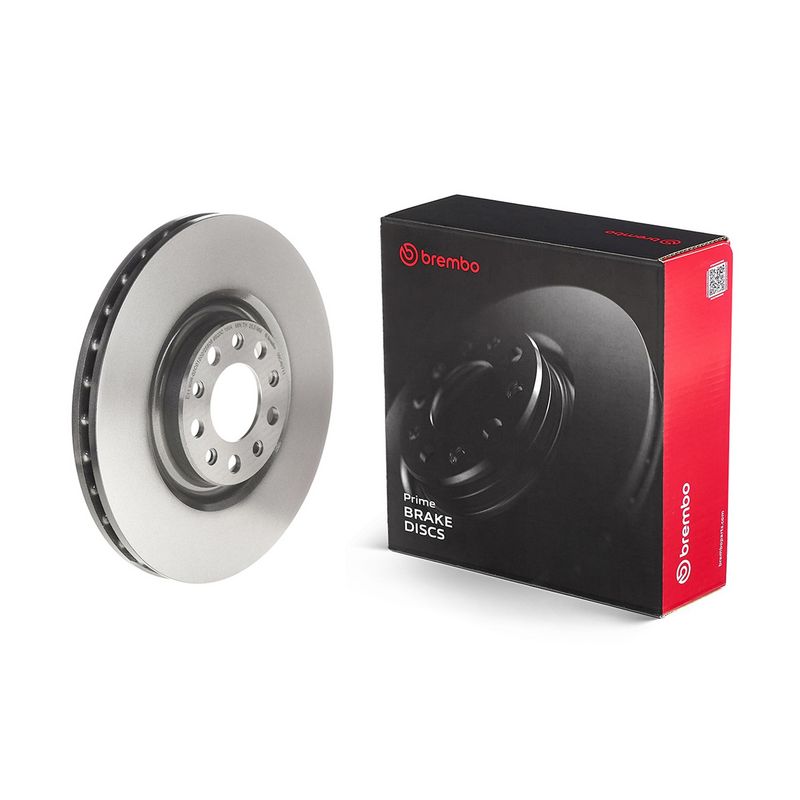

Brembo 09.C497.11 Brake Disc

SKU: 09.C497.11
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£63.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
GIULIA (952_)
Description Cylinder Capacity Horse Power Year
2.9 Quadrifoglio (952AAM24) 2891 CCM 510 HP From 10/2015
2.2 D (952AEM250, 952AEA250) 2143 CCM 150 HP From 10/2015
2.2 D (952AFA25, 952AFM25, 952ALA25) 2143 CCM 180 HP From 10/2015
2.2 D (952AGA250, 952AGM250, 952ASM2, 952ASA2) 2143 CCM 136 HP From 10/2015
2.0 (952ACA25) 1995 CCM 280 HP From 08/2016
2.0 (952ABA25B) 1995 CCM 200 HP 08/2016 - 10/2022
2.0 Q4 (952ACA45, 952ACA25) 1995 CCM 280 HP From 08/2016
2.2 D Q4 (952AFA45M) 2143 CCM 180 HP From 04/2017
2.2 D (952AEM250, 952AEA250) 2143 CCM 160 HP From 08/2018
2.2 D (952ALA25, 952AFM25, 952APA2) 2143 CCM 190 HP 08/2018 - 10/2022
2.2 D Q4 (952AFA45M, 952ANA4) 2143 CCM 190 HP 08/2018 - 10/2022
STELVIO (949_)
Description Cylinder Capacity Horse Power Year
2.0 Q4 (949.AXA2A) 1995 CCM 280 HP From 12/2016
2.2 D Q4 (949.AXB2A) 2143 CCM 209 HP From 12/2016
2.2 D (949.AXC1A) 2143 CCM 180 HP From 12/2016
2.0 Q4 (949.AXF2A) 1995 CCM 201 HP From 12/2016
2.2 D (949.AXD1A) 2143 CCM 150 HP From 12/2016
2.2 D Q4 (949.AXE2A) 2143 CCM 180 HP From 12/2016
2.2 D (949.AXD1A) 2143 CCM 160 HP From 08/2018
2.2 D (949.AXC1A) 2143 CCM 190 HP From 08/2018
2.2 JTDM Q4 (949.AXE2A) 2143 CCM 190 HP From 08/2018
2.0 Q4 (949.AXR2A) 1995 CCM 250 HP From 12/2019

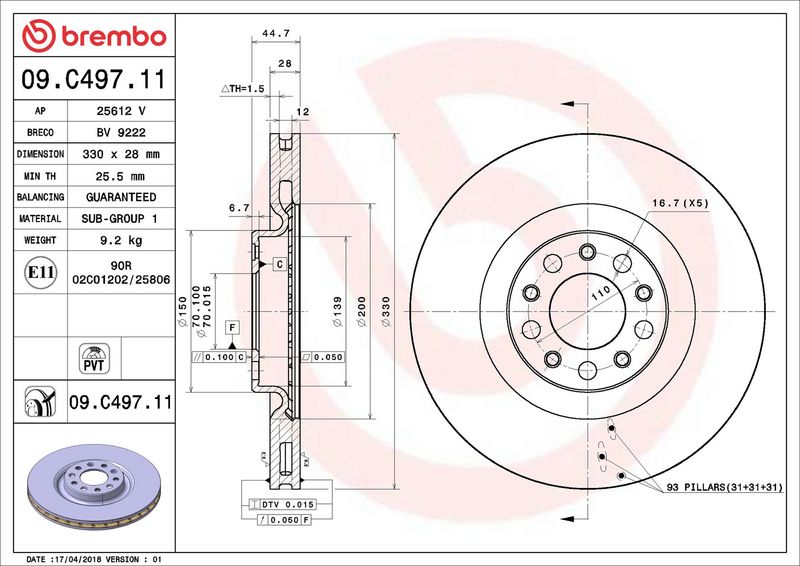

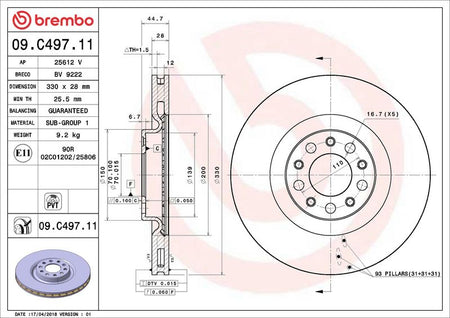

The Brembo 09.C497.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 45
Centering Diameter [mm] : 70
Outer Diameter [mm] : 330
Surface : Coated
Minimum thickness [mm] : 25.5
  • Vendor BREMBO
  • SKU 09.C497.11
  • Barcode 8020584224755
  • ALFA ROMEO : 50532932 50556528 50568875
  • APEC : DSK3395
  • BLUE PRINT : ADBP430176
  • BORG & BECK : BBD6166S
  • BOSCH : 0 986 479 E88
  • DELPHI : BG9336C
  • FEBI BILSTEIN : 186033
  • HELLA : 8DD 355 134-801
  • MINTEX : MDC3048C
  • National : NBD2189
  • SKF : VKBD 81396 V1
  • TEXTAR : 92337905
  • TRW : DF6551S
